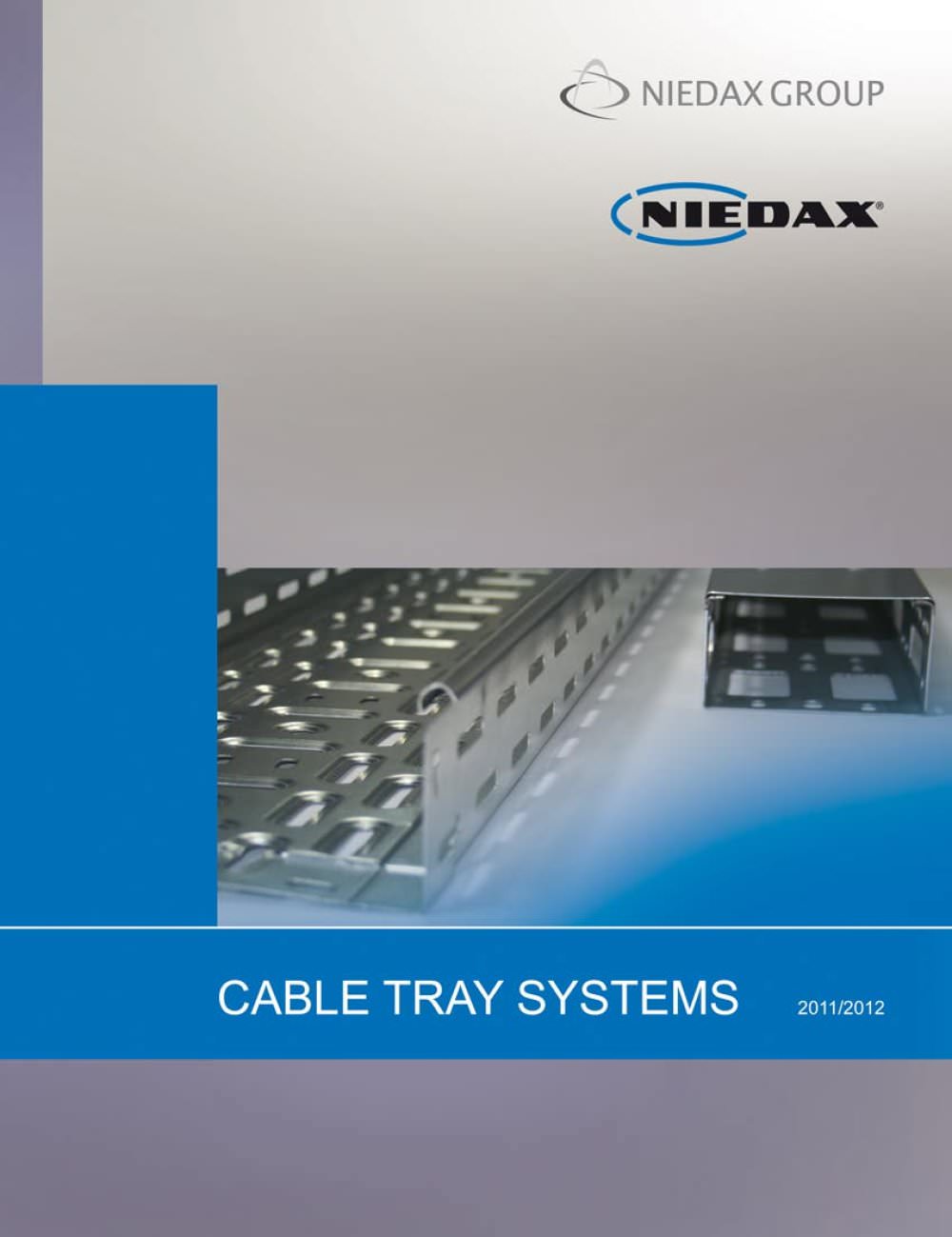

Cables tray systems 2011
Cables tray systems 2011
This section provides guidelines on material handling, corrosion protection, finishes, and installation instructions. It emphasizes the importance of managing materials effectively, protecting them from corrosion, and applying finishes properly. Installation instructions are included to ensure correct setup and maintenance.
Details various components such as hangers, profiles, brackets, and head plates, which are essential for supporting cable systems and ensuring stability and safety.
Includes wire mesh trays, covers, barrier strips, and accessories designed for organizing and protecting cables, offering flexibility and ease of installation.
Features cable trays, barrier strips, accessories, fittings, and covers, allowing safe walking over cable trays while providing protection and accessibility.
Comprises cable ladders, covers, fittings, and accessories for heavy-duty cable support, offering robust and reliable solutions for cable management.
Includes cable ladders, splice plates, and rungs tailored for marine environments, providing corrosion-resistant solutions for cable management.
Consists of long span cable trays, fittings, and ladders, ideal for applications requiring extended support distances, ensuring stability and durability.
Features surface metal raceways, accessories, and fittings designed for surface-mounted cable management, offering a neat and organized appearance.
Includes cable trays, barrier strips, accessories, fittings, and covers, providing comprehensive solutions for cable routing and protection, ensuring efficient and safe cable management.
Lists multiple models of brackets and hangers with specific dimensions and load ratings. Each model is associated with a unique EAN code and model number. Load ratings are specified in kilonewtons (kN) and are valid only when properly anchored to the building structure.
Emphasizes the importance of proper anchorage to meet load ratings, with specific instructions for mounting on walls, overhead hangers, and steel beams. Protective end caps are recommended to prevent accidents and injuries.
Provides load ratings for each model with notes on permissible loads for different configurations. Advises consulting structural engineering for details and local regulations to ensure compliance.
Mentions various hardware components such as FLM and SKM bolts for use with brackets and hangers. Specifies that hardware must be ordered separately and provides recommendations for different finishes.
Advises on the use of spacers and maintaining a minimum distance above hangers for static reasons. Highlights the risk of clamps sliding off painted surfaces and the need for structural engineering approval before removing fire-protective paint.
Key components include splice plates, barrier strips, mounting plates, and elbows. Each component is described with its model number, dimensions, and weight per 100 units. Specifies the inclusion of splice plates with each straight section of cable tray.
The load capacity of trays is tested according to the DIN EN IEC 61537 standard, ensuring compliance with industry norms. Provides load charts for uniformly distributed loads.
Cable tray systems are designed for heavy-duty applications, with options for ventilated and solid trays. Suitable for separating wires and cables of different voltage levels or functions, providing secure and organized cable management solutions.
Ensure proper installation of turnbolt locks or cover clamps at a minimum distance of 50 mm from each end of the cover. Use extra support stands for certain floor supports and order splice plates separately for specific components.
Proper grounding is essential for LS type raceways, using boltless splice plates for interconnection. Equipotential bonding is ensured through a snap-on mechanism, with additional bonding wires recommended for enhanced safety.
Includes lifting devices for covers for quick dismantling and equipotential bonding wires specified with cross-sectional areas and blade receptacles for secure connections.
