Multilayer Ceramic Chip Capacitors NMC-P
5Pages

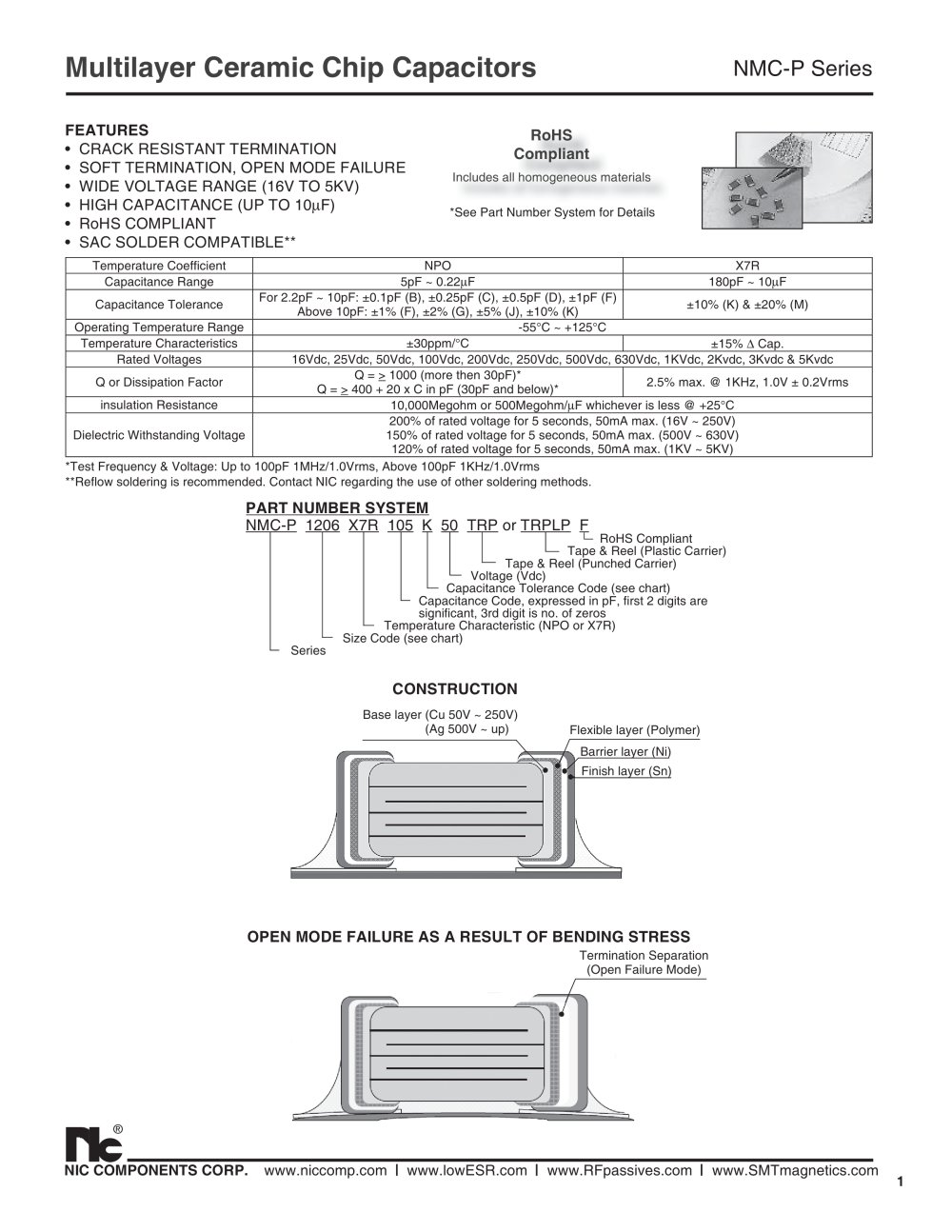

Multilayer Ceramic Chip Capacitors FEATURES • CRACK RESISTANT TERMINATION • SOFT TERMINATION, OPEN MODE FAILURE • WIDE VOLTAGE RANGE (16V TO 5KV) • HIGH CAPACITANCE (UP TO 10μF) • RoHS COMPLIANT • SAC SOLDER COMPATIBLE** NMC-P Series RoHS Compliant Includes all homogeneous materials *See Part Number System for Details Temperature Coefcient Capacitance Range NPO X7R 5pF ~ 0.22μF 180pF ~ 10μF For 2.2pF ~ 10pF: ±0.1pF (B), ±0.25pF (C), ±0.5pF (D), ±1pF (F) Capacitance Tolerance ±10% (K) & ±20% (M) Above 10pF: ±1% (F), ±2% (G), ±5% (J), ±10% (K) Operating Temperature Range -55°C ~ +125°C Temperature Characteristics ±30ppm/°C ±15% Δ Cap. Rated Voltages 16Vdc, 25Vdc, 50Vdc, 100Vdc, 200Vdc, 250Vdc, 500Vdc, 630Vdc, 1KVdc, 2Kvdc, 3Kvdc & 5Kvdc Q = > 1000 (more then 30pF)* 2.5% max. @ 1KHz, 1.0V ± 0.2Vrms Q or Dissipation Factor Q = > 400 + 20 x C in pF (30pF and below)* insulation Resistance 10,000Megohm or 500Megohm/μF whichever is less @ +25°C 200% of rated voltage for 5 seconds, 50mA max. (16V ~ 250V) Dielectric Withstanding Voltage 150% of rated voltage for 5 seconds, 50mA max. (500V ~ 630V) 120% of rated voltage for 5 seconds, 50mA max. (1KV ~ 5KV) *Test Frequency & Voltage: Up to 100pF 1MHz/1.0Vrms, Above 100pF 1KHz/1.0Vrms **Reow soldering is recommended. Contact NIC regarding the use of other soldering methods. PART NUMBER SYSTEM NMC-P 1206 X7R 105 K 50 TRP or TRPLP F RoHS Compliant Tape & Reel (Plastic Carrier) Tape & Reel (Punched Carrier) Voltage (Vdc) Capacitance Tolerance Code (see chart) Capacitance Code, expressed in pF, rst 2 digits are signicant, 3rd digit is no. of zeros Temperature Characteristic (NPO or X7R) Size Code (see chart) CONSTRUCTION Base layer (Cu 50V ~ 250V) (Ag 500V ~ up) Flexible layer (Polymer) Barrier layer (Ni) Finish layer (Sn) OPEN MODE FAILURE AS A RESULT OF BENDING STRESS Termination Separation (Open Failure Mode)

Multilayer Ceramic Chip Capacitors NMC-P Series NPO VALUES AND SIZES (mm) EIA Case Size Length (L) Width (W) Thickness max. (T) Termination Width (P) Capacitance

Multilayer Ceramic Chip Capacitors NMC-P Series NPO VALUES AND SIZES (mm) EIA Case Size Length (L) Width (W) Thickness max. (T) Termination Width (P) Capacitance

Multilayer Ceramic Chip Capacitors NMC-P Series X7R LOW VOLTAGE VALUES AND SIZES (mm) EIA Case Size Length (L) Width (W) Thickness max. (T) Termination Width (P) Capacitance X7R HIGH V0LTAGE VALUES AND SIZES (mm) EIA Case Size Length (L) Width (W) Thickness max. (T) Termination Width (P) Capacitance

Multilayer Ceramic Chip Capacitors NMC-P Series X7R HIGH V0LTAGE VALUES AND SIZES (mm) EIA Case Size Length (L) Width (W) Thickness max. (T) Termination Width (P) Capacitance
