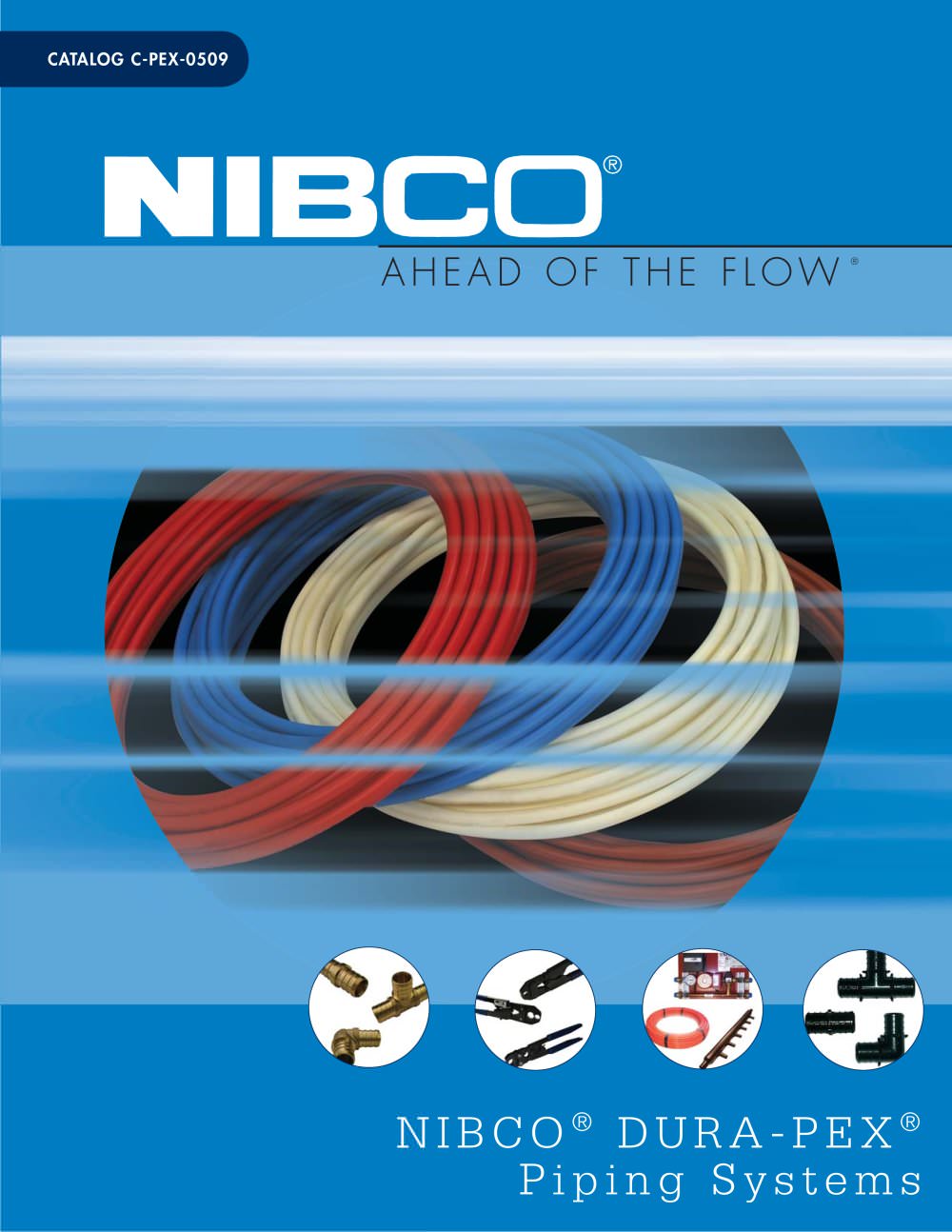

NIBCO® DURA-PEX® Piping Systems CATALOG C-PEX-0509 AHEAD OF THE FLOW ®

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH:1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com The velocity with which e-business evolves demands that new products and services be continuously developed and introduced to keep our customers at the center of our business efforts. NIBCO provides an entire suite of business-to-business solutions that is changing the way we interact with customers. Look to NIBCO for technology leadership....

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 4 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 NIBCO® DURA-PEX® is a Complete System NIBCO DURA-PEX tubing, fi ttings, valves, and manifolds are designed to be used as a complete system. Therefore, NIBCO cannot guarantee that tubing and/or components from other systems are compatible for use with the NIBCO DURA-PEX system. NIBCO offers more...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 5 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 Look to NIBCO for Leadership on PEX Tubing Systems NIBCO® is proud to offer DURA-PEX® for potable water distribution and radiant heating. With over 100 years of experience, you can trust NIBCO to provide the highest quality PEX products. NIBCO DURA-PEX tubing is processed though an electron...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 6 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 Material Selection Polyethylene (PE) Polyethylene is the most common olefin material and is typically used in transporting water. Because olefins cannot be joined with cements, barbed insert fittings are used for mechanical assembly. PE is light weight, low cost, has excellent chemical...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 7 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 Material Selection Plastic Piping Standards NSF/ANSI 61 Drinking Water System Components - Health Effects. This is the American National Standard for health effects of drinking water system components. This standard establishes the health effects requirements for the chemical contaminants and...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 8 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 Material Selection Plastic Piping Standards ASTM Standard F 2023 Standard Test Method for Evaluating the Oxidative Resistance of Cross-linked Polyethylene (PEX) Tubing and Systems to Hot Chlorinated Water This test method describes the general requirements for evaluating the long-term,...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 9 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 FIP = Female Iron Pipe MIP = Male Iron Pipe NPSM = Straight Pipe Thread CTS = Copper Tube Size Compression = Transition Fitting Hub = Plastic Socket SJ = Slip Joint Spg = Male End (Spigot) SVL = Swivel PB = Polybutylene Fitting Terms and Abbreviations Tube Markings Pipe Size Manufacturer and...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 17 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 NIBCO® DURA-PEX® Tube Icemaker Tubing and Risers NP45 DURA-PEX Riser Tubing NP45F NP46 NP46F NP47 RISERS FIGURE MATERIAL DESCRIPTION WEIGHT/ BAG MASTER NO. NO. PIECE QTY. CTN. QTY. NP45 PX01200 3/8" x 12" PEX Lav Tube 0.0280 50 50 NP45F PX01212 3/8" x 20" PEX Lav Tube w/ Ferrule 0.0460 50 50...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 19 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 NIBCO® DURA-PEX® Metal Insert Fittings STUB OUT ELBOWS* NP21 DURA-PEX Copper Stub Out Elbows NP21S FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER NO. NO. QTY. CTN. QTY. NP21 PX80950 1/2" Stub Out Elbow (3-1/2" x 8") 0.2580 25 25 NP21 PX01450 3/4" PEX Stub Out Elbow (4" x 8") 0.4120 50 50 NP21S...

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227 TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455 www.nibco.com 20 www.nibco.com A H E A D O F T H E F L O W® Revised 4/29/2009 NIBCO® DURA-PEX® Metal Insert Fittings ADAPTERS NP23 DURA-PEX Brass PEX x Sweat Adapters NP23F FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER NO. NO. QTY. CTN. QTY. NP23 PX81060 3/8" PEX x 3/8" Male Sweat Adapter 0.0210 25 500 NP23 PX81070 1/2" PEX x 1/2" Male Sweat Adapter 0.0320 50 500 NP23...
