Static Eliminator - Air-Blade™ Ionizer
1 /2Pages

Static Eliminator - Air-Blade™ Ionizer

Static Eliminator - Air-Blade™ Ionizer
1 /2Pages

Catalog excerpts

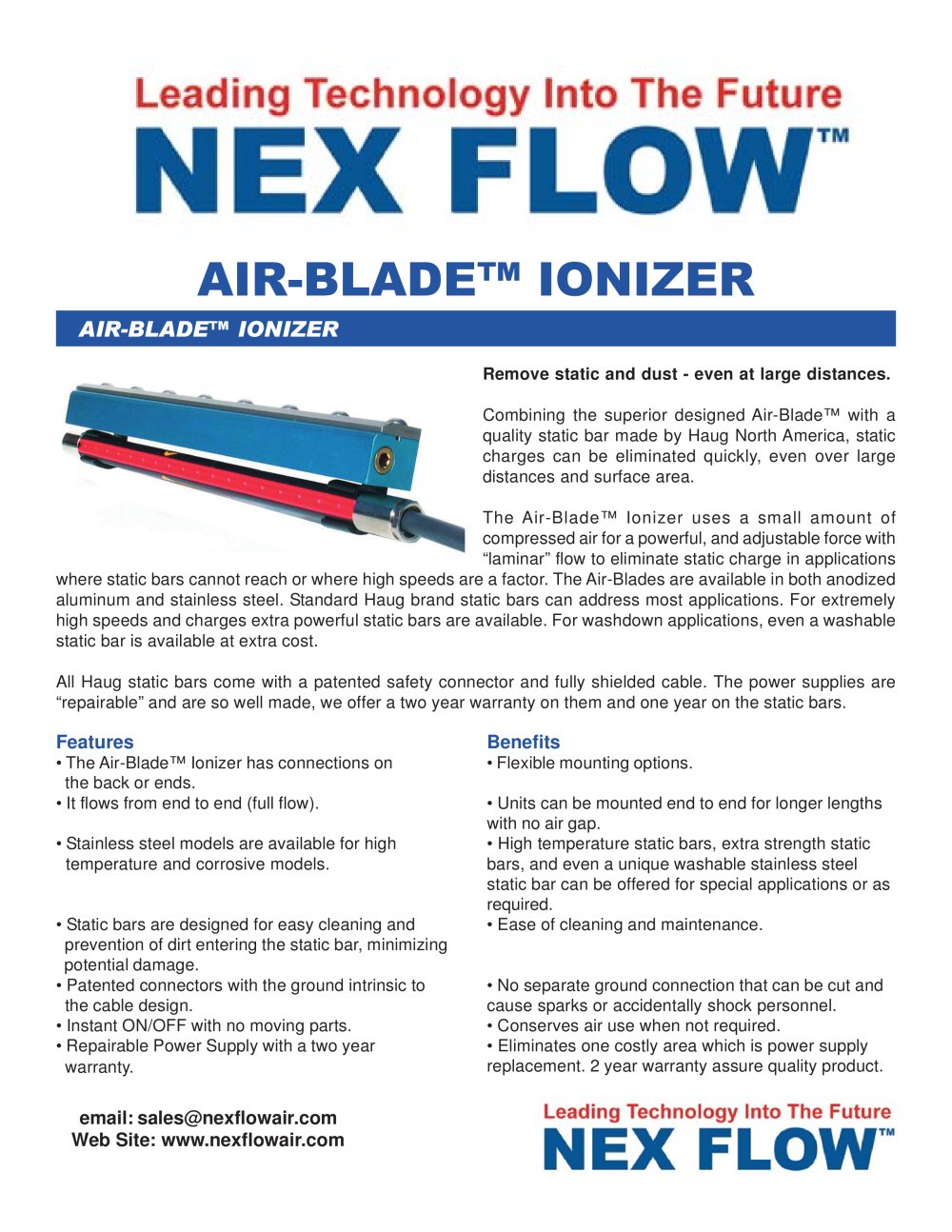

Static Eliminator - Air-Blade™ Ionizer-1

Remove static and dust - even at large distances. Combining the superior designed Air-Blade with aquality static bar made by Haug North America, static charges can be eliminated quickly, even over large distances and surface area.The Air-Bladeٙ Ionizer uses a small amount ofcompressed air for a powerful, and adjustable force with laminarӔ flow to eliminate static charge in applicationswhere static bars cannot reach or where high speeds are a factor. The Air-Blades are available in both anodized aluminum and stainless steel. Standard Haug brand static bars can address most applications. For extremely high speeds and charges extra powerful static bars are available. For washdown applications, even a washable static bar is available at extra cost.All Haug static bars come with a patented safety connector and fully shielded cable. The power supplies arerepairableӔ and are so well made, we offer a two year warranty on them and one year on the static bars. > ? The Air-Blade Ionizer has connections on the back or ends.? It flows from end to end (full flow).? Stainless steel models are available for high temperature and corrosive models.? Static bars are designed for easy cleaning and prevention of dirt entering the static bar, minimizing potential damage.? Patented connectors with the ground intrinsic to the cable design. ? Instant ON/OFF with no moving parts.? Repairable Power Supply with a two year warranty. ? Flexible mounting options.? Units can be mounted end to end for longer lengthswith no air gap.? High temperature static bars, extra strength staticbars, and even a unique washable stainless steelstatic bar can be offered for special applications or as required.? Ease of cleaning and maintenance.? No separate ground connection that can be cut andcause sparks or accidentally shock personnel. ? Conserves air use when not required.? Eliminates one costly area which is power supplyreplacement. 2 year warranty assure quality product. >

 Open the catalog to page 1
