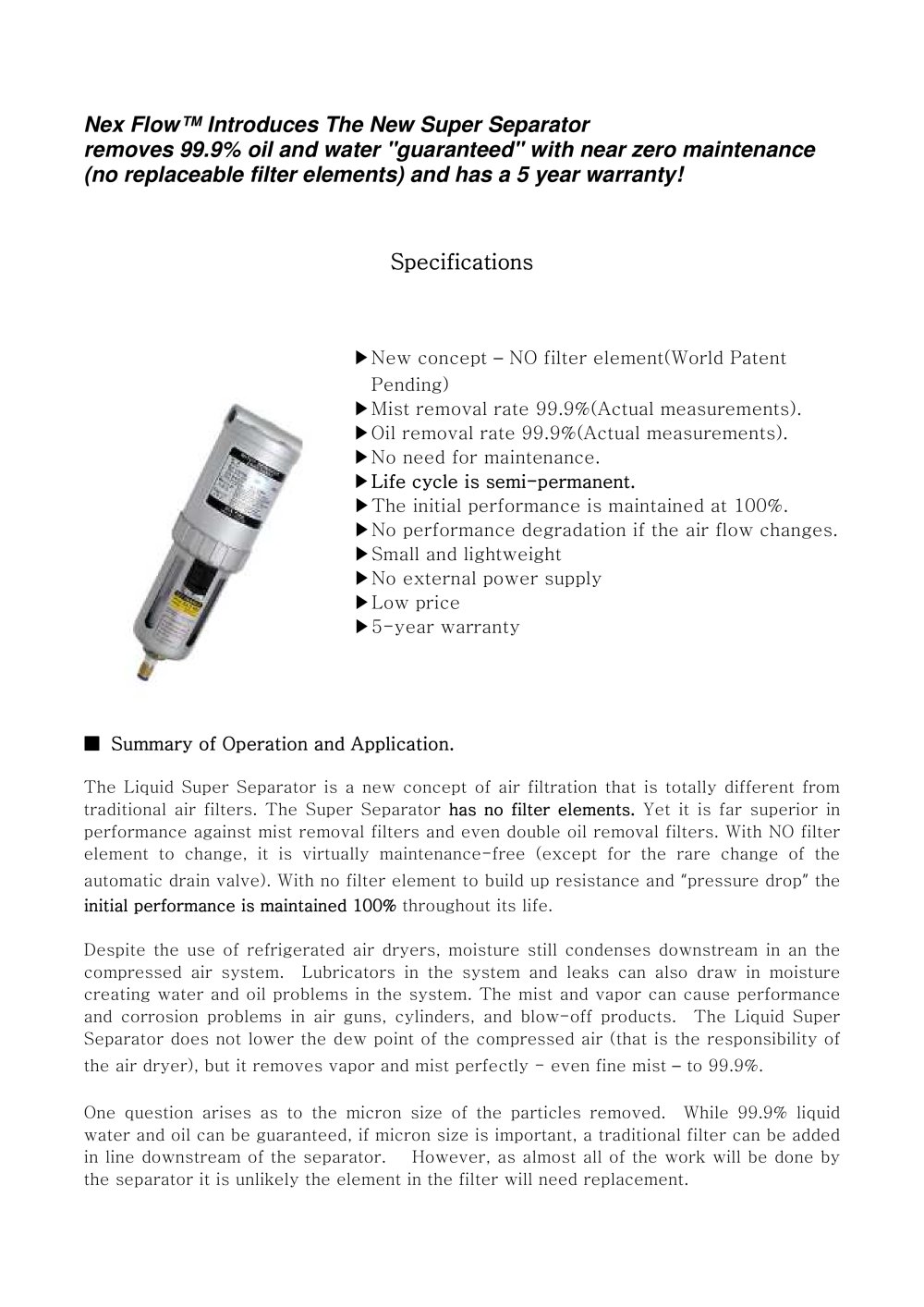

Introduction
Nex Flow™ introduces the Super Separator, a revolutionary air filtration system that removes 99.9% of oil and water with minimal maintenance and no replaceable filter elements. It comes with a 5-year warranty.

Specifications
- No filter element (World Patent Pending)
- Mist and oil removal rate: 99.9%
- Maintenance-free with a semi-permanent life cycle
- Consistent performance regardless of airflow changes
- Small, lightweight, and requires no external power
- Low cost with a 5-year warranty

Operation and Application
The Super Separator uses a unique centrifugal separation system without filter elements, offering superior performance compared to traditional filters. It effectively removes mist and vapor, preventing corrosion and performance issues in air systems. While it doesn't lower the dew point, it ensures 99.9% removal of mist and oil.

Basic Principle
The system employs a high-speed centrifugal filtration method with multi-nozzles, separating liquids due to their specific gravity difference from air. This method ensures zero pressure drop and minimal maintenance, with significant bacterial reduction.

Features
- No filter element required
- High mist and oil removal rates (99.99%)
- Low pressure drop and near maintenance-free
- Compact design for large flow control
- Consistent performance without degradation
- Significant bacterial reduction
- Extends life cycle of traditional filter elements
- No external power needed

Comparison with Existing Products
The Super Separator outperforms general air filters in mist removal, pressure loss, maintenance, and economic feasibility. It maintains consistent performance over time without the need for filter element replacements.

Specifications
Models: NF-200, NF-500, NF-1500
- Max. Flow: 9 to 64 SCFM
- Pressure loss: 0 to 3.6 psig
- Maximum Pressure: 140 PSIG
- Fluid temperature: -20 to 60°C
- Automatic drain type

Installation
Install vertically for efficiency, at the elbow of the last equipment. Ensure correct flow direction and place lubricators after the separator.

FAQs
- Used upstream of machines using compressed air
- Suitable for various industrial applications
- Removes mist, oil, and dust
- Maintenance-free except for the automatic drain valve
- Extends life of existing filters

Applications
The Super Separator is used across diverse industries, including painting, pharmaceuticals, food manufacturing, electronics, shipbuilding, and more, due to its efficiency and cost-effectiveness.
