Tristar™
2Pages

Catalog excerpts

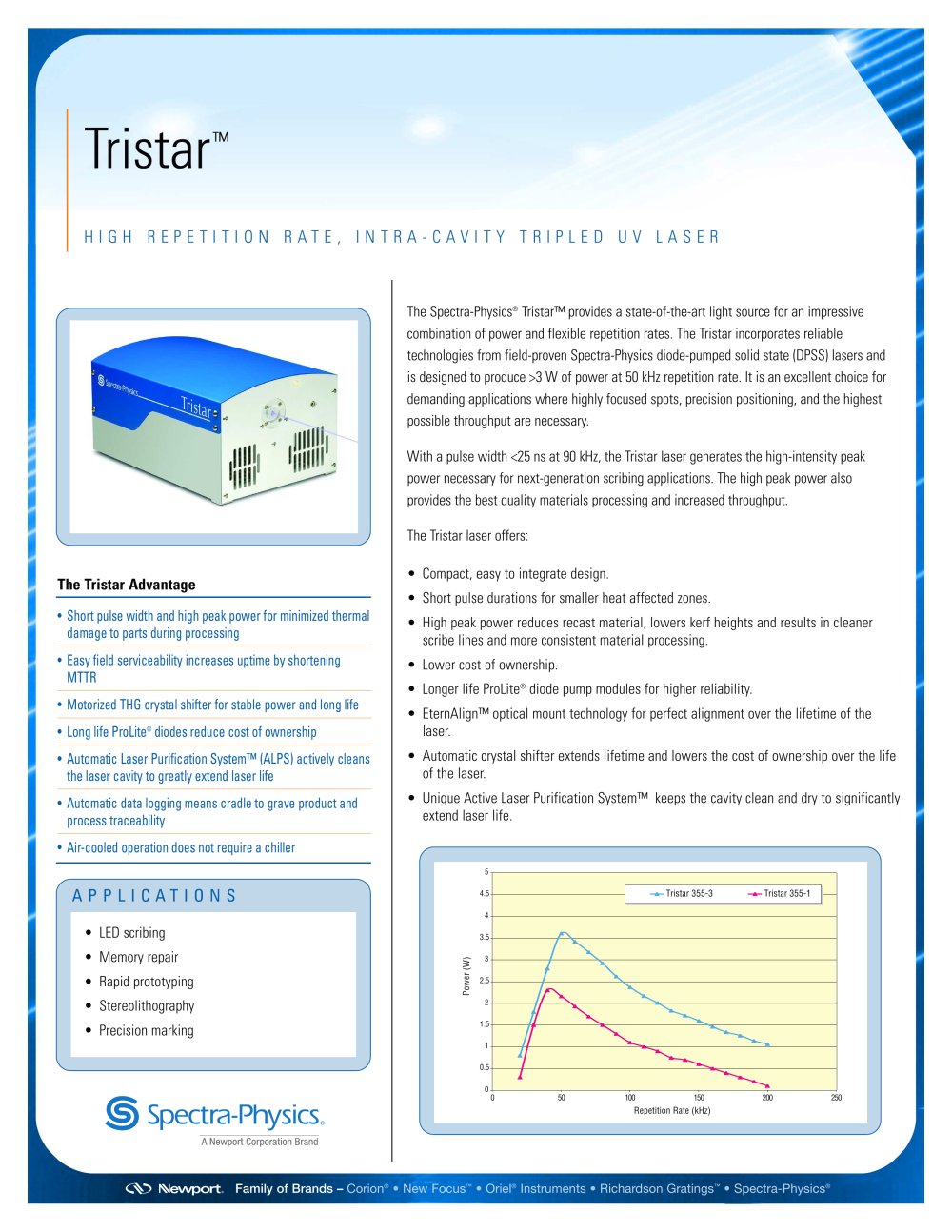

Family of Brands – Corion® • New Focus™ • Oriel® Instruments • Richardson Gratings™ • Spectra-Physics® Tristar™ H I G H R E P E T I T I O N R A T E , I N T R A - C A V I T Y T R I P L E D U V L A S E R The Tristar Advantage • Short pulse width and high peak power for minimized thermal damage to parts during processing • Easy field serviceability increases uptime by shortening MTTR • Motorized THG crystal shifter for stable power and long life • Long life ProLite® diodes reduce cost of ownership • Automatic Laser Purification System™ (ALPS) actively cleans the laser cavity to greatly extend laser life • Automatic data logging means cradle to grave product and process traceability • Air-cooled operation does not require a chiller A P P L I C A T I O N S • LED scribing • Memory repair • Rapid prototyping • Stereolithography • Precision marking The Spectra-Physics® Tristar™ provides a state-of-the-art light source for an impressive combination of power and flexible repetition rates. The Tristar incorporates reliable technologies from field-proven Spectra-Physics diode-pumped solid state (DPSS) lasers and is designed to produce >3 W of power at 50 kHz repetition rate. It is an excellent choice for demanding applications where highly focused spots, precision positioning, and the highest possible throughput are necessary. With a pulse width <25 ns at 90 kHz, the Tristar laser generates the high-intensity peak power necessary for next-generation scribing applications. The high peak power also provides the best quality materials processing and increased throughput. The Tristar laser offers: • Compact, easy to integrate design. • Short pulse durations for smaller heat affected zones. • High peak power reduces recast material, lowers kerf heights and results in cleaner scribe lines and more consistent material processing. • Lower cost of ownership. • Longer life ProLite® diode pump modules for higher reliability. • EternAlign™ optical mount technology for perfect alignment over the lifetime of the laser. • Automatic crystal shifter extends lifetime and lowers the cost of ownership over the life of the laser. • Unique Active Laser Purification System™ keeps the cavity clean and dry to significantly extend laser life. 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 0 50 100 150 200 250 Repetition Rate (kHz) Power (W) Tristar 355-3 Tristar 355-1

Open the catalog to page 1

Family of Brands – Corion® • New Focus™ • Oriel® Instruments • Richardson Gratings™ • Spectra-Physics® PHONE EMAIL Belgium +32-(0)0800-11 257 belgium@newport.com China +86-10-6267-0065 china@newport.com France +33-(0)1-60-91-68-68 france@newport.com Japan +81-3-3794-5511 spectra-physics@splasers.co.jp Taiwan +886 -(0)2-2508-4977 sales@newport.com.tw PHONE EMAIL Irvine, CA, USA +1-800-222-6440 sales@newport.com Netherlands +31-(0)30 6592111 netherlands@newport.com United Kingdom +44-1235-432-710 uk@newport.com Germany / Austria / Switzerland +49-(0)6151-708-0 germany@newport.com Newport...

Open the catalog to page 2
