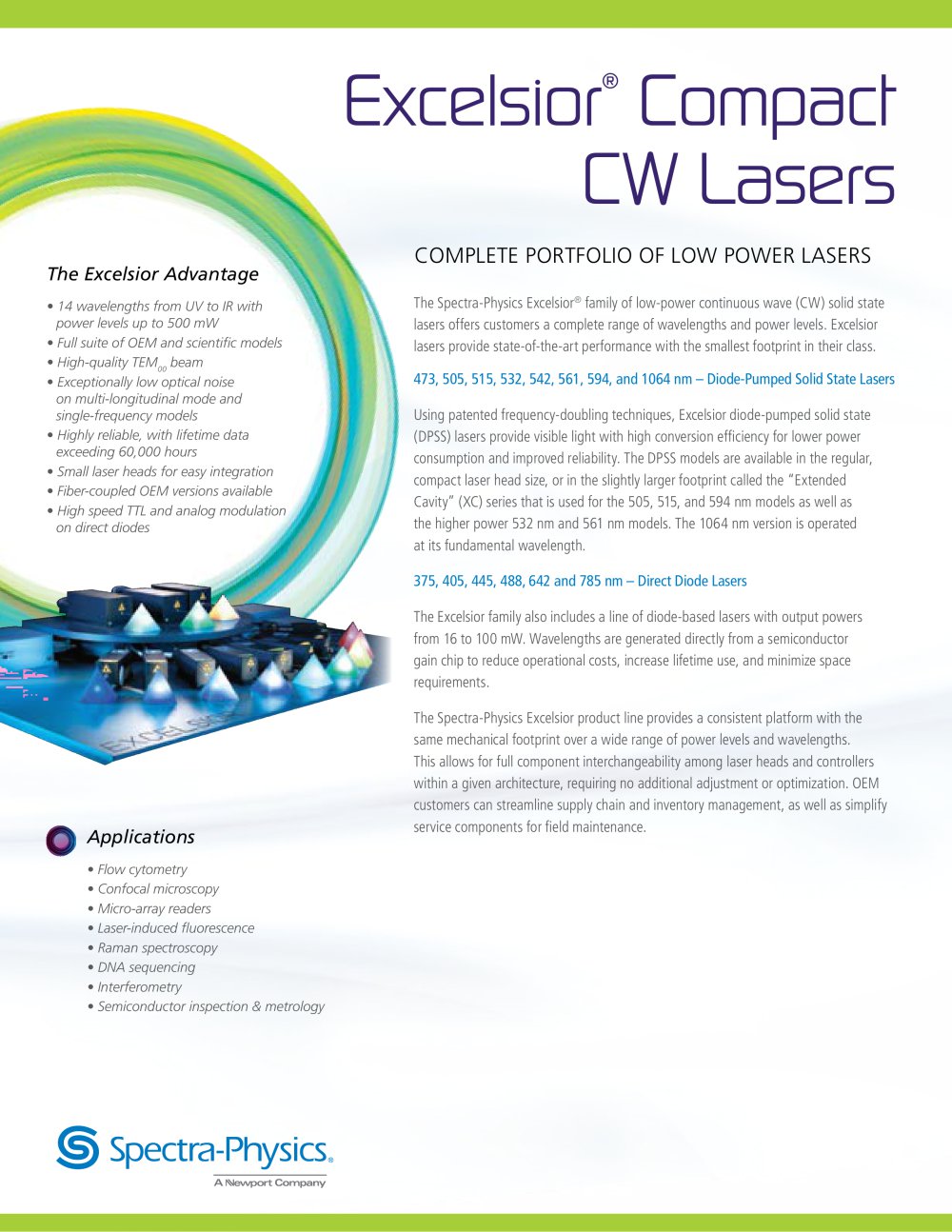

Excelsior Compact CW Lasers ® The Excelsior Advantage • 14 wavelengths from UV to IR with power levels up to 500 mW • Full suite of OEM and scientific models • High-quality TEM00 beam • Exceptionally low optical noise on multi-longitudinal mode and single-frequency models • Highly reliable, with lifetime data exceeding 60,000 hours • Small laser heads for easy integration • Fiber-coupled OEM versions available • High speed TTL and analog modulation on direct diodes Complete Portfolio of Low Power Lasers The Spectra-Physics Excelsior® family of low-power continuous wave (CW) solid state lasers offers customers a complete range of wavelengths and power levels. Excelsior lasers provide state-of-the-art performance with the smallest footprint in their class. 473, 505, 515, 532, 542, 561, 594, and 1064 nm – Diode-Pumped Solid State Lasers Using patented frequency-doubling techniques, Excelsior diode-pumped solid state (DPSS) lasers provide visible light with high conversion efficiency for lower power consumption and improved reliability. The DPSS models are available in the regular, compact laser head size, or in the slightly larger footprint called the “Extended Cavity” (XC) series that is used for the 505, 515, and 594 nm models as well as the higher power 532 nm and 561 nm models. The 1064 nm version is operated at its fundamental wavelength. 375, 405, 445, 488, 642 and 785 nm – Direct Diode Lasers The Excelsior family also includes a line of diode-based lasers with output powers from 16 to 100 mW. Wavelengths are generated directly from a semiconductor gain chip to reduce operational costs, increase lifetime use, and minimize space requirements. Applications • Flow cytometry • onfocal microscopy C • Micro-array readers • aser-induced fluorescence L • aman spectroscopy R • NA sequencing D • nterferometry I • emiconductor inspection & metrology S The Spectra-Physics Excelsior product line provides a consistent platform with the same mechanical footprint over a wide range of power levels and wavelengths. This allows for full component interchangeability among laser heads and controllers within a given architecture, requiring no additional adjustment or optimization. OEM customers can streamline supply chain and inventory management, as well as simplify service components for field maintenance.

Open the catalog to page 1

Output Characteristics Wavelength Output Power Spectral Linewidth Spatial Mode Longitudinal Mode Frequency Drift Beam Divergence Beam Ellipticity Beam Pointing Stability Power Stability (over 8 hours) Polarization Ratio Warm-up Time Beam Height Direct Diode Direct Diode Direct Diode Direct Diode Utility and Environmental Specifications Operating Voltage3 Maximum Power Consumption Operating Temperature Maximum Laser Head Base Plate Temperature4 Storage Temperature Range -20 to 60°C (90% relative humidity, non-condensing) Shock Tolerance Static Alignment Tolerance 5 Beam Position Beam Angle...

Open the catalog to page 2

Excelsior® 532–1064 nm Specifications1, 6, 10 Excelsior 532 Multi Mode Excelsior 532 Single Mode Output Characteristics Wavelength Output Power2 Spectral Linewidth Spatial Mode Longitudinal Mode Frequency Drift Beam Quality (M2) Beam Diameter (1/e²) Beam Divergence Beam Ellipticity Beam Pointing Stability Noise Power Stability (over 8 hours) Polarization Ratio Warm-up Time Beam Height Technology Direct Diode Direct Diode Utility and Environmental Specifications Operating Voltage3 Maximum Power Consumption Operating Temperature Maximum Laser Head Base Plate Temperature4 Storage Temperature...

Open the catalog to page 3

Excelsior® Excelsior Laser Dimensions Beam Exit Aperture Side View Front View 532 nm (Multi Mode Non-collimated) Direct Diode and DPSS CDRH models 505 nm, 515 nm, 594 nm 561 nm (100 & 150 mW) 532 nm (300 mW), DPSS XC CDRH models 375 nm, 405 nm, 440 nm, 473 nm, 488 nm, 532 nm (Single Mode, Multi Mode Collimated), 542 nm, 561 nm, 642 nm, 785 nm, 1064 nm 3.74 in (95 mm) Beam Height Beam Exit (from side) 0.83 in (21 mm) offset 0.16 in (4 mm) from center Excelsior OEM Controller and CDRH Power Supply Dimensions B C Front View Front View Direct Diode CDRH models DPSS CDRH models DPSS XC CDRH...
