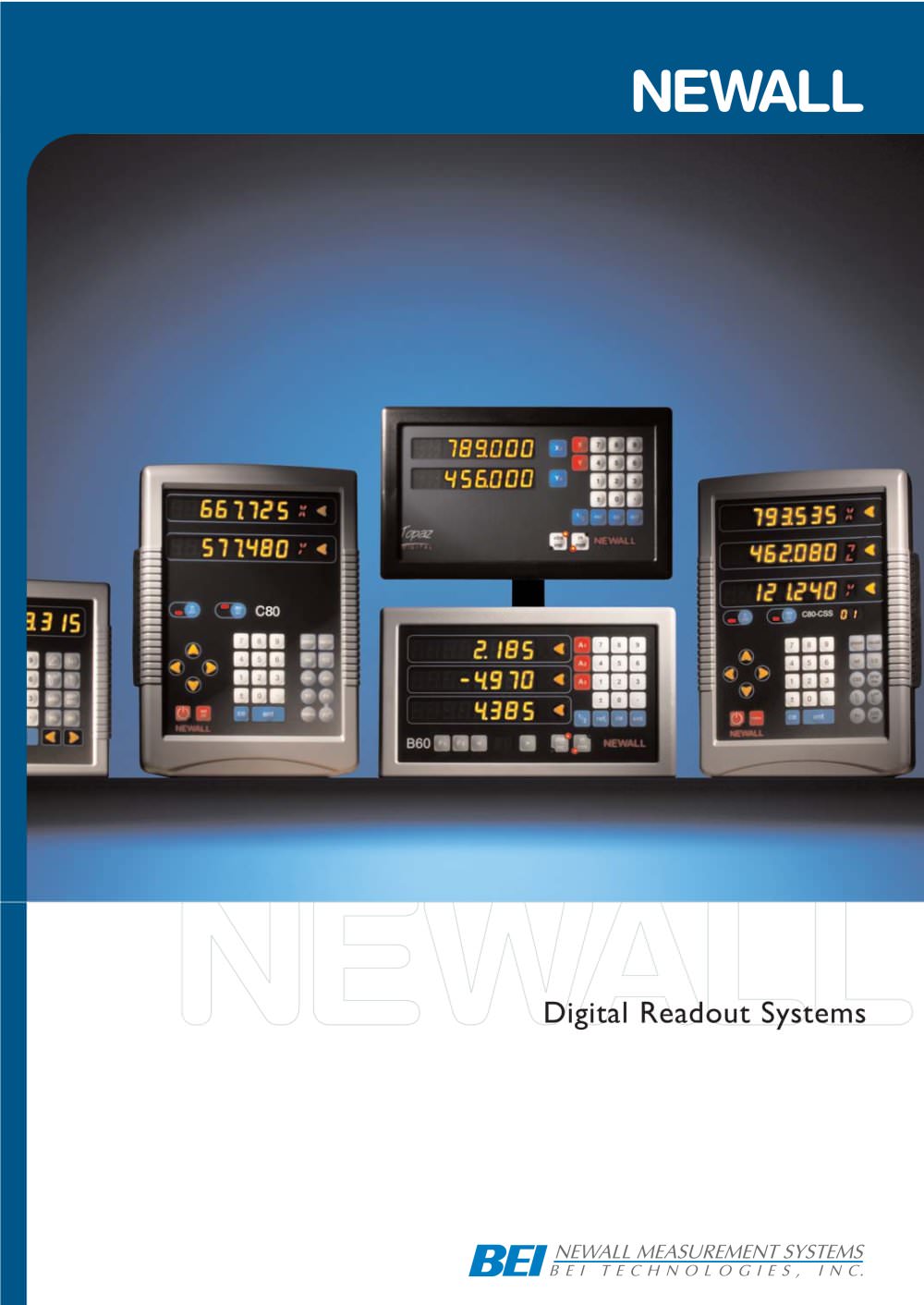

Digital Readout Systems Brochure
8Pages

Digital Readout Systems >

Newall,founded in Peterborough in 1968 and now a whollyowned subsidiary of BEI Technologies Inc.,has dedicated itself to providing the automation,machine tool and other machinery and production industries with leading edge technologies that increase productivity and machine tool efficiency.Amongst the Newall portfolio are the world-renowned DigitalReadout (DRO) ranges.Each of Newall's DRO's is specifically designed and dedicated to increasing machine productivity. Newall's Digital Readouts have developed to include some of the most advanced,market-leading readouts available in the market...

The A50 is a single axis DRO that can be used for a wide range oflinear measurement applications.Available in a single axis configuration,the A50 is a compact DROand includes a wipe-clean front panel.The A50 DRO can be mounted as a stand-alone unit or panel mounted. Housed in a rugged die-cast chassis,the B60 DRO is well suitedfor all types of general machining applications.The B60 is available in two or three axis configurations and includes a host of features. Features Absolute/Incremental OperationՕInch/Metric ConversionZero Approach Warning ՕZero Reset/Data Preset Data RecallՕData...

Features Available in both two and three axis configurations.The C80 includes all the standard features listed in the product featureanalysis plus:-Feed Rate Display > The C80 is a powerful yet affordable DRO that sets the newstandard for performance,value and ease of use.Simple to use yet feature packed,the C80 utilises the latest in DRO technology.The C80 is everything you could ask for in a DRO and includesa full complement of productivity enhancing features.Theinnovative design allows the operator to easily configure theunit for either mill or lathe specific features.In addition,the C80...

Newalls E-Series utilises an innovative and unique design.TheDRO and the supporting electronics have been separated, allowing the DSU to be mounted anywhere on the machine,thus minimising cable routing. The E70-L is available in two or three axis configurations andincludes all the Standard Features listed,plus the following lathe specific features:ҕProgrammable MemoryTool Offsets ՕTaper CalculationsAxis Vectoring/Summing (three axis) Standard Features ՕAbsolute/Incremental OperationInch/Metric ConversionՕZero Approach Warning Zero Reset/Data Preset ՕData RecallData HoldՕRadius/Diameter...

The Topaz DRO series has been designed for users requiringeither one,two or three axes.The compact range of Topaz Readouts are constructed in a die-cast casing with a clear,easy to read LED digital display.The Topaz controls offers a host of features. Features The SA100 is a single Axis DRO which can be used for a wide variety of applications.Available in linear and rotary versions the SA100 can be usedwith the Newall Encoders - Spherosyn Digital,Microsyn Digital, Magnasyn tape- as well as TTL output signal glass gratings,linear and rotary encoders,TRAK sensors and lasers. Easy to install...

Consistent accuracy and reliability even under the harshest shop conditions. Based on the principle of electromagnetics,Newalls Spherosyn > Ү and Microsyn > encoders embody a truly innovative design inwhich all of the electronic and measuring components are sealed and protected.The encoders carry an IP67 (NEMA 6) environmental rating and will continue to provide accurate andreliable readings even when submerged in water,oil or coolant. Encoder Benefits ΕIP67 (NEMA 6)Withstands dust,dirt,oil and other environmental conditions ՕNo mechanical wear characteristics Requires no cleaning or...

Product Feature Analysis A50 B60 C80 E70 Mill E70 Lathe Topaz Digital SA100 Linear SA100 Rotary Application General Machining,Grinding & Metrology Milling &Tuning Milling or TurningBoring &Grinding Milling,Boring &Grinding Turning,Boring &Grinding Milling &Tuning GeneralApplications RotaryMeasurements Number of Axes Available 1 2 or 3 2 or 3 2 or 3 2 or 3 2 or 3 1 1 Resolution as follows: Spherosyn 5m,10յm,20m,50յm SHG,MHG,MAG Scale Resolutions0.1m,0.2յm,0.5m,1յm,2m,5յm,10m 0.0001 to 0.01Decimal Degrees orDegrees,Minutes &Seconds Microsyn 10 5յm,10m,20յm,50m Microsyn 5 1յm,2m,5յm,10m...
