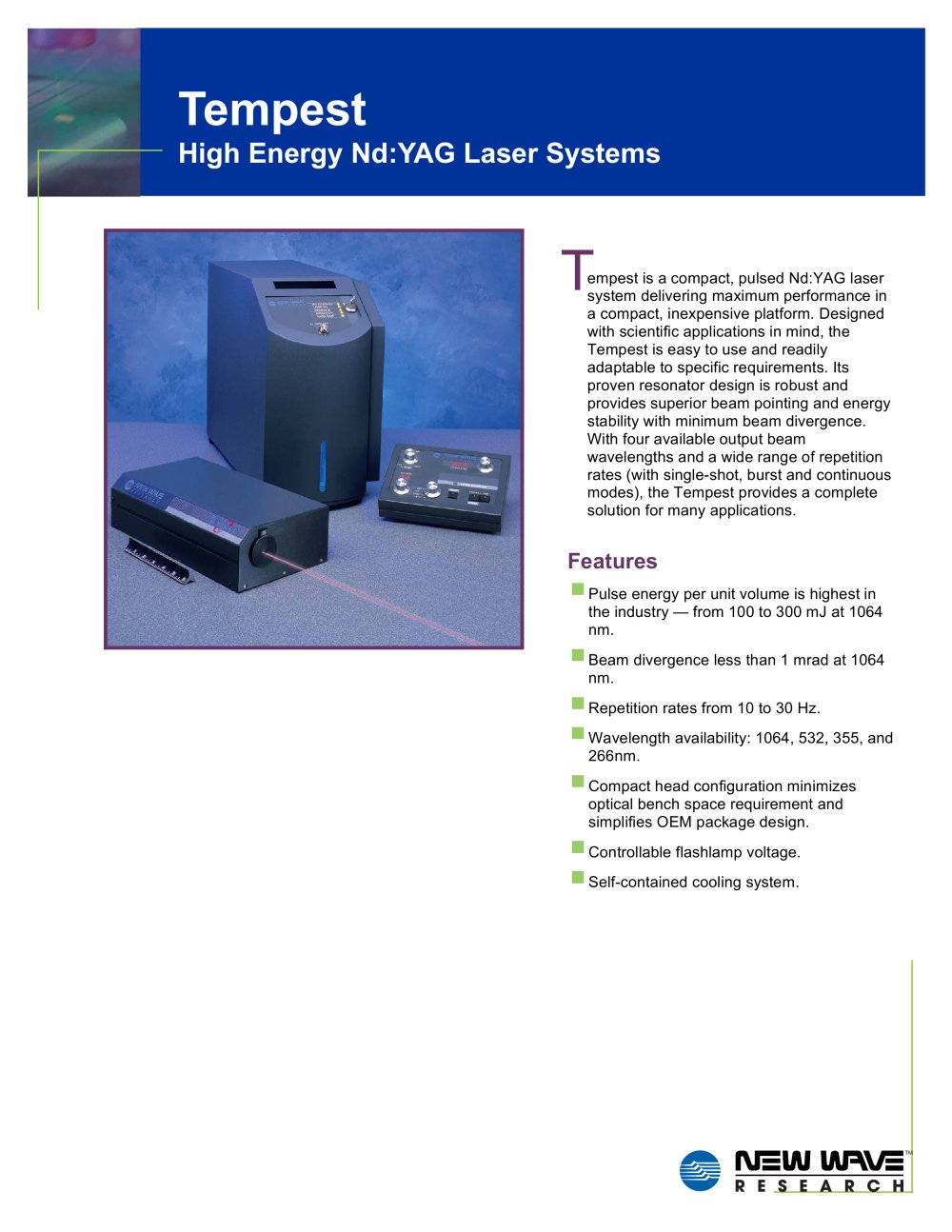

Tempest
2Pages

empest is a compact, pulsed Nd:YAG laser system delivering maximum performance in a compact, inexpensive platform. Designed with scientific applications in mind, the Tempest is easy to use and readily adaptable to specific requirements. Its proven resonator design is robust and provides superior beam pointing and energy stability with minimum beam divergence. With four available output beam wavelengths and a wide range of repetition rates (with single-shot, burst and continuous modes), the Tempest provides a complete solution for many applications. > Pulse energy per unit volume is highest in the industry from 100 to 300 mJ at 1064 nm. Beam divergence less than 1 mrad at 1064 nm. Repetition rates from 10 to 30 Hz. Wavelength availability: 1064, 532, 355, and 266nm. Compact head configuration minimizes optical bench space requirement and simplifies OEM package design. Controllable flashlamp voltage. Self-contained cooling system. >

Tempest 10 Tempest 20 Tempest 30 Tempest 300 Repetition Rate (Hz) 10 20 30 10 > 1064 nm 200 200 180 300 Energy > 1 (mJ) > 532 nm 100 100 90 180 > 355 nm 50 50 40 75 > 266 nm 30 30 20 40 > 1064 nm 2 2 2.5 2 Energy Stability > 2 (%) > 532 nm 3.5 3.5 4 4 > 355 nm 8 8 9 9 > 266 nm 9 9 10 10 Pulse Width > 3 (ns) 3-5 3-5 3-5 3-5 Beam Diameter (mm) 5 5 5 6 Divergence > 4 (mrad) < 1 < 1 < 1 <1 Beam Pointing Stability (ѵrad) < 100 < 200 < 250 <200 IR Beam Quality > 5 (TDL) 1.5 1.5 2 1.5 Jitter (ns) > 6 0.5 0.5 0.5 0.5 > 1. Optical losses due to optional attenuator will reduce maximum energy by 10%...
