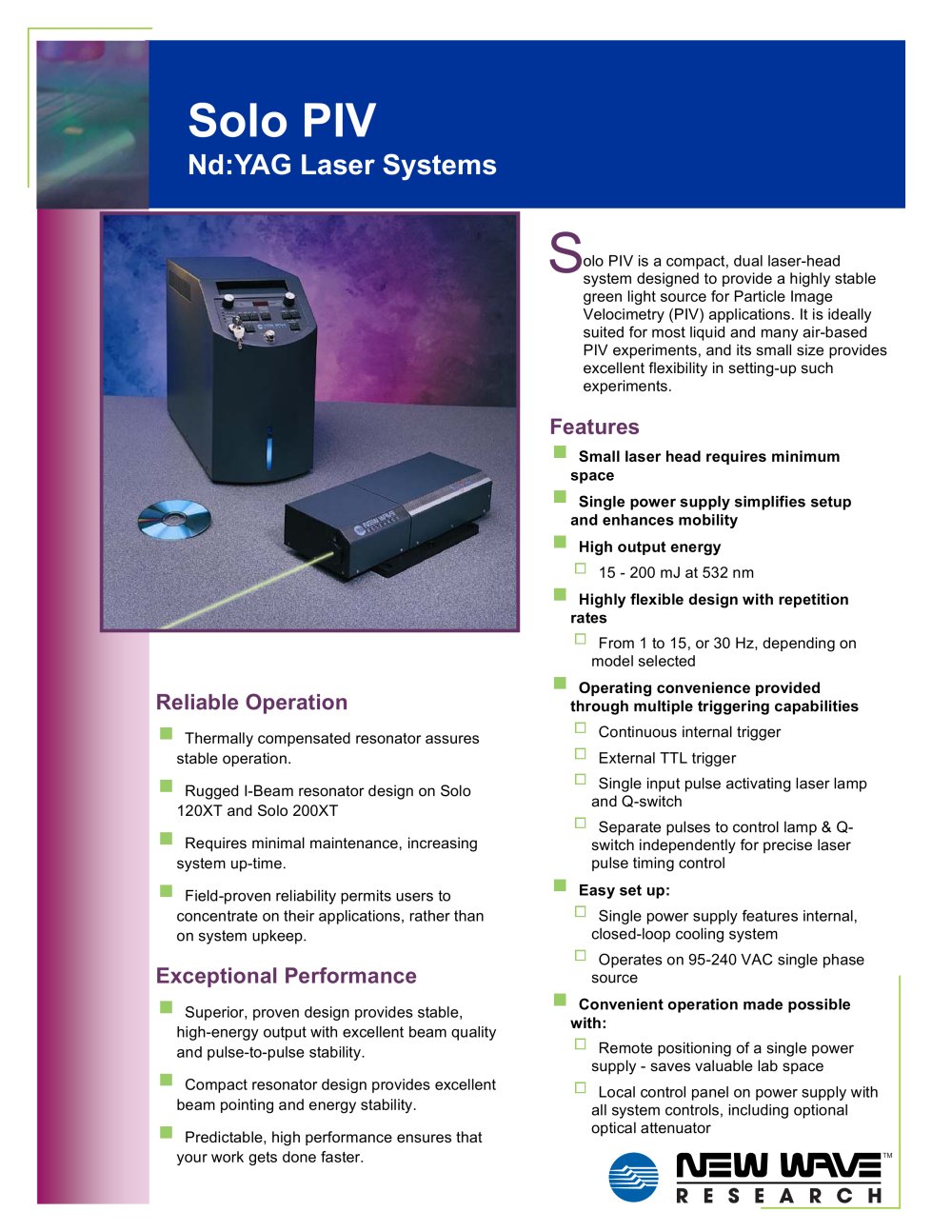

Solo PIV
2Pages

olo PIV is a compact, dual laser-head system designed to provide a highly stable green light source for Particle Image Velocimetry (PIV) applications. It is ideally suited for most liquid and many air-based PIV experiments, and its small size provides excellent flexibility in setting-up such experiments. > Small laser head requires minimum space Single power supply simplifies setup and enhances mobility High output energy 15 - 200 mJ at 532 nm Highly flexible design with repetition rates From 1 to 15, or 30 Hz, depending on model selected > Operating convenience provided through multiple triggering capabilities Continuous internal trigger External TTL trigger Single input pulse activating laser lamp and Q-switch Separate pulses to control lamp & Q-switch independently for precise laser pulse timing control Thermally compensated resonator assures stable operation. Rugged I-Beam resonator design on Solo 120XT and Solo 200XT Requires minimal maintenance, increasing system up-time. Field-proven reliability permits users to concentrate on their applications, rather than on system upkeep. Easy set up: Single power supply features internal, closed-loop cooling system Operates on 95-240 VAC single phase source > Convenient operation made possible with: Remote positioning of a single power supply - saves valuable lab space Local control panel on power supply with all system controls, including optional optical attenuator Superior, proven design provides stable, high-energy output with excellent beam quality and pulse-to-pulse stability. Compact resonator design provides excellent beam pointing and energy stability. Predictable, high performance ensures that your work gets done faster. >

5 1 1 1 1 1 1 > 1. Optical losses due to optional attenuator will reduce maximum energy by 10%. 2. Energy and pulse-to-pulse stability for 98% of shots after 30 minute warm up. 3. Full width half maximum. 4. Full angle for 86% of the energy, at 1/e 2 point. 5. From Q-switch synch out to light pulse, 98% of 1000 shots. 8 ft / 2.4 m 10 ft / 3 m 10 ft / 3 m * Width and height include mounting plate 1500 watts > Specifications and product offering subject to change without notice. www.new-wave.com USA Japan Taiwan Europe China New Wave Research, Inc. 48660 Kato Road Fremont CA. 94538-7339 Tel:...
