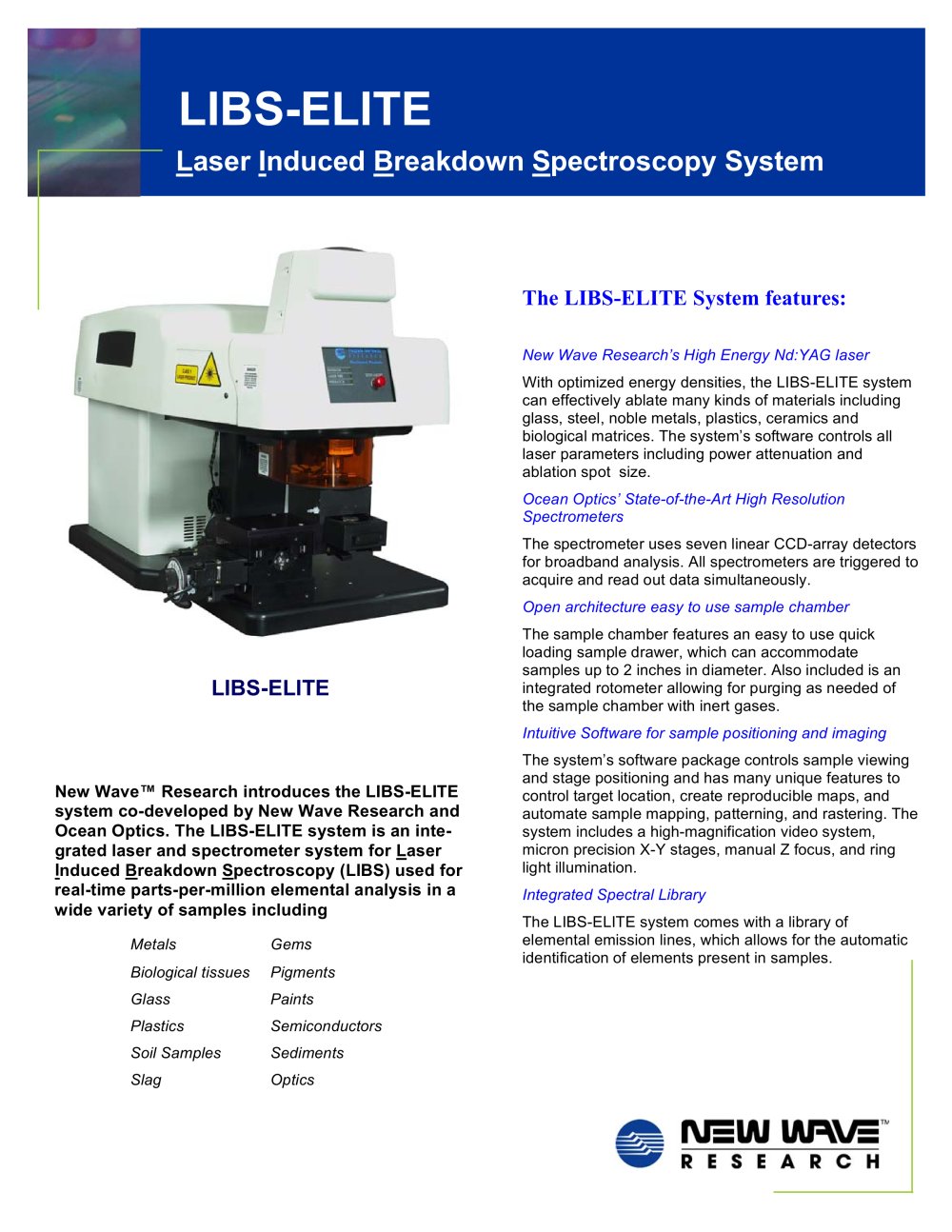

New Wave Researchs High Energy Nd:YAG laser With optimized energy densities, the LIBS-ELITE system can effectively ablate many kinds of materials including glass, steel, noble metals, plastics, ceramics and biological matrices. The systemҒs software controls all laser parameters including power attenuation and ablation spot size. Ocean Optics State-of-the-Art High Resolution Spectrometers The spectrometer uses seven linear CCD-array detectors for broadband analysis. All spectrometers are triggered to acquire and read out data simultaneously. Open architecture easy to use sample chamber The sample chamber features an easy to use quick loading sample drawer, which can accommodate samples up to 2 inches in diameter. Also included is an integrated rotometer allowing for purging as needed of the sample chamber with inert gases. Intuitive Software for sample positioning and imaging The systemҒs software package controls sample viewing and stage positioning and has many unique features to control target location, create reproducible maps, and automate sample mapping, patterning, and rastering. The system includes a high-magnification video system, micron precision X-Y stages, manual Z focus, and ring light illumination. > Integrated Spectral Library The LIBS-ELITE system comes with a library of elemental emission lines, which allows for the automatic identification of elements present in samples. > Metals Gems Biological tissues Pigments Glass Paints Plastics Semiconductors Soil Samples Sediments Slag Optics >

Laser Tempest-10 200 mJ Nd:YAG laser Pulse length <5 ns Objective lens 50 mm FL, 1diameter, singlet 1064 lens Energy control Continuously variable optical attenuator Beam delivery Focused beam via 1064 nm motorized beam expander > - LIBS-ELITE Platform Length 25Ԕ / 64 mm Width 18 / 46 mm Height 19.1Ԕ / 48.5 mm Maximum Repetition Rate 10 Hz - single, burst and con-tinuous modes Spot size range 50 microns to 300 microns Weight 130 lb / 59 kg > - Power Supply Video/Laser Focusing Manual Z-axis Sample illumination Off-axis Length 8.7 / 22.1mm Width 20.5Ԕ / 39.9 mm Height 15.7 / 52.1 mm Sample...
