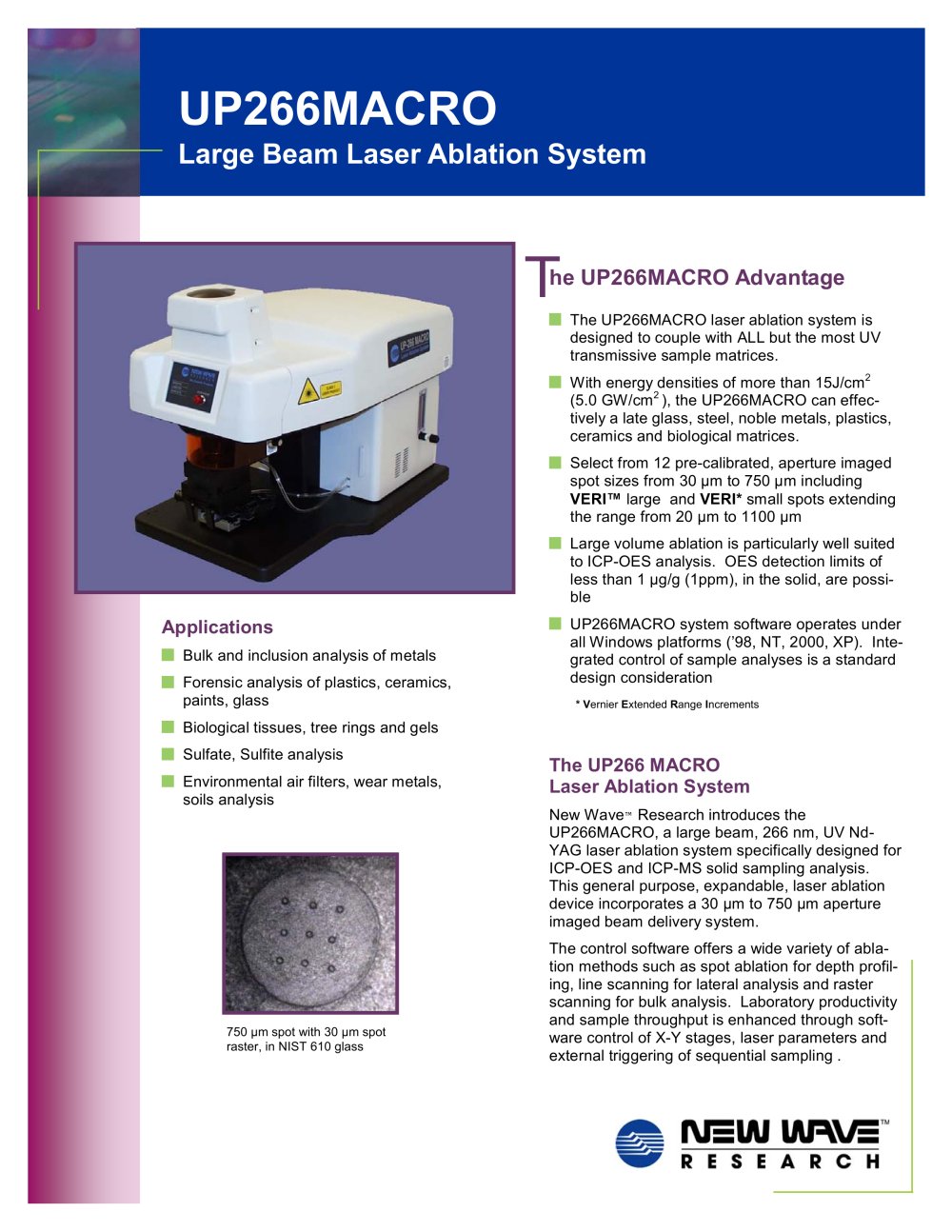

The UP266MACRO laser ablation system is designed to couple with ALL but the most UV transmissive sample matrices. With energy densities of more than 15J/cm > 2 (5.0 GW/cm > 2 ), the UP266MACRO can effec-tively a late glass, steel, noble metals, plastics, ceramics and biological matrices. Select from 12 pre-calibrated, aperture imaged spot sizes from 30 m to 750 յm including VERI large and VERI* small spots extending the range from 20 ٵm to 1100 m Large volume ablation is particularly well suited to ICP-OES analysis. OES detection limits of less than 1 յg/g (1ppm), in the solid, are possi-ble UP266MACRO system software operates under all Windows platforms (98, NT, 2000, XP). Inte- grated control of sample analyses is a standard design consideration > Bulk and inclusion analysis of metals Forensic analysis of plastics, ceramics, paints, glass Biological tissues, tree rings and gels Sulfate, Sulfite analysis Environmental air filters, wear metals, soils analysis > * V ernier E xtended R ange I ncrements New Wave > ҙ Research introduces the UP266MACRO, a large beam, 266 nm, UV Nd-YAG laser ablation system specifically designed for ICP-OES and ICP-MS solid sampling analysis. This general purpose, expandable, laser ablation device incorporates a 30 m to 750 յm aperture imaged beam delivery system. The control software offers a wide variety of abla-tion methods such as spot ablation for depth profil- ing, line scanning for lateral analysis and raster scanning for bulk analysis. Laboratory productivity and sample throughput is enhanced through soft-ware control of X-Y stages, laser parameters and external triggering of sequential sampling. > 750 m spot with 30 յm spot raster, in NIST 610 glass size="-1">

The system includes a high-magnification video system, micron precision X-Y stages, manual Z focus, F/O illumina- tion, ICP/ICP-MS sample chamber and Merchantek control software for semi-automated and automated operation. The systems software package controls all laser parame-ters, sample viewing and stage positioning and has many unique features such as sample mosaic navigation, alpha-numeric character marking and re-coordination of sample analysis after removal and subsequent replacement of sam-ple into chamber. > New Wave > ҙ Research Laser Ablation Software > 4th harmonic, Nd:YAG laser...
