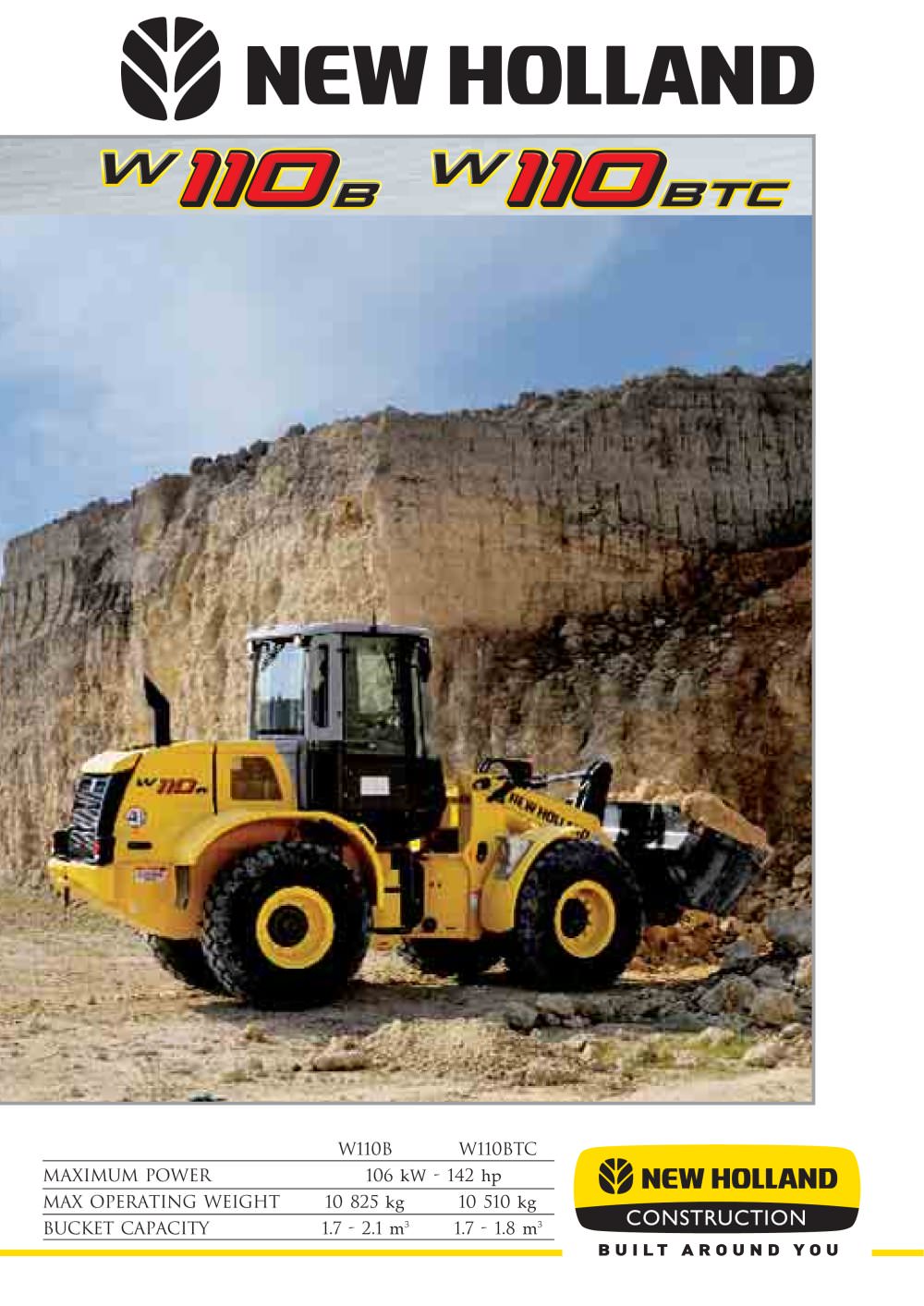

Wheel Loaders > W110B/110BTC
16Pages

he new turbo, after cooled, electronically controlled CNH engine mounted on the W110B is a jewel of technologywhich utilises the direct injection 4 valves 106 kW > Common Rail and EGR systems to drastically reduce fuel consumption, noiseand pollution. It features per cylinder,higher maximum power at lower r.p.m.,an increased maximum torque in respect ofthe previous model and anelectronically controlled Multiple Work Mode . > he Load Sensing optimizes cycles and production. , Closed Centre hydraulic system, delivers itspower when and where it is needed. It also allows simultaneousmovements...

he New Holland advanced and exclusive Cooling Module , is a cube positioned in the centre of the machine with allradiators mounted around three of its sides and the hydraulic tank positioned in the centre, to optimise both space andcooling effect. A hydraulically driven fan, automatically activated by a thermostatic sensor, draws fresh clean air from outsidethrough the radiators and the tank and blows it over the engine to the rear of the machine.The fan is reversible to easily clean the radiators.The tank position, high on the pump, eliminates risk of damage.An exclusive feature that...

his new CNH Common Rail engine is a jewelof technology, designed to reduce fuel consumption and pollution.It features higher maximum power 61 daNm and electronically controlled Multiple Work Modes .The 106 kW at lowercrankshaft revolution 1800 r.p.m. (versus 2000 r.p.m of the previous model)., increased maximum torque of Common Rail system assures the injectionof fuel in the cylinders at very high pressure, optimising nebulisation and mix with an increased quantity of turbocharged and after-cooled air, thus delivering a perfect and total fuel combustion.In addition, the EEMS (Engine...

he W110B hydraulic system consists of a new variable displacement,axial pistons pump Load Sensing regulated. The pump delivers 134 l/minat a maximum pressure of 250 bars. Steering is soft, prompt and easy thanks to a demand valve which prioritisesthe diversion of the necessary flow to the steering cilinders. If steering is not required all the hydraulic oil is available for the front loader to deliver fast, efficient and productive cycles.A small gear pump driven by an electric motor, which automatically switcheson in case of engine shutoff, provides emergency steering , for operatorsafety...

Air-Air A.C.condenser Radiator Hydraulic oil Transmission oil >

Optimum stability and better rear visibility means greater operator safety and confidence, shortercycle time, higher productivity: all which adds up to higher profitability. he use of the compact and centrally mounted Cooling Module results in a wider free space in theback of the rear frame.This innovative solution has allowed the New Holland engineers to reposition the engine and itscomponents all the way back on the rear frame. Consequently, the centre of gravity is also moved backwards in a more convenient position to better counterbalance the loading effect. Furthermore the machine...

SpaceӔ means that: Access to the cab has been improvedthanks to the 580mm wide door (80 mmwider), which can be locked back at 180 deg., and to the new wider steps with larger anti-slip treads. Internal volume has been increased by 13% and the glass area enhanced to provide perfect bucket and 360 deg. visibility. The steering column is tiltable and includes a high-tech dashboard, enabling easy functional checks from every position. The new contoured and suspended seat, adjustable in all directions, incorporates a retractable seat belt and adjustable armrests.It can be supplied with optional...

means an advanced laboratory where Vital information on the main components isprovided by the new on-board computer and displayed on the new multi-language, high-tech digital LCD screen located on the dashboard just in front of the operator for easy reading; The "car standard" cab features an integrated ROPSand FOPS structure with tinted safety glass. Standard pressurisation, optional climatisation andFM radio, low noise level and modern and elegant interiors provides the operator with pleasant and comfortable working conditions, regardless of the external weather conditions. A machine cab...

W 11 > MAINTENANCE AND SERVICE 0B > THE POWER T he W110B is designed for simple and easy maintenanceand service procedures thanks to its excellent ground level access to all the most important components and to the new high-tech digital display located on the dashboard, which keeps the operator fully aware of all machines main functions, such as engine and transmission diagnostics, error reporting and warning prompts.Wide side panels, that open and close with a seagull wingmovement, are light to lift and automatically self-locking in a safety position thanks to compressed air cylinders. 10...

- Hour Meter - Time - F/N/R Indication - Trip computer - Metric/English - Warning Prompts - Engine Speed - Automatic Trans Indication - DeClutch Indication - Fuel Consumption - Engine Diagnostic - Error Reporting - Travel Speed - Current Gear Selection - LCD Screen: > 70 A alternator voltage regulator A.C.S., Advanced Cooling Module centrally mountedwith integrated hydraulic oil tank for: - transmission oil- engine coolant - hydraulic oil - air to air aftercooler - air conditioner condenser (if equipped) Antifreeze Automatic return-to-dig Bucket and lift levers with hydraulic power...
