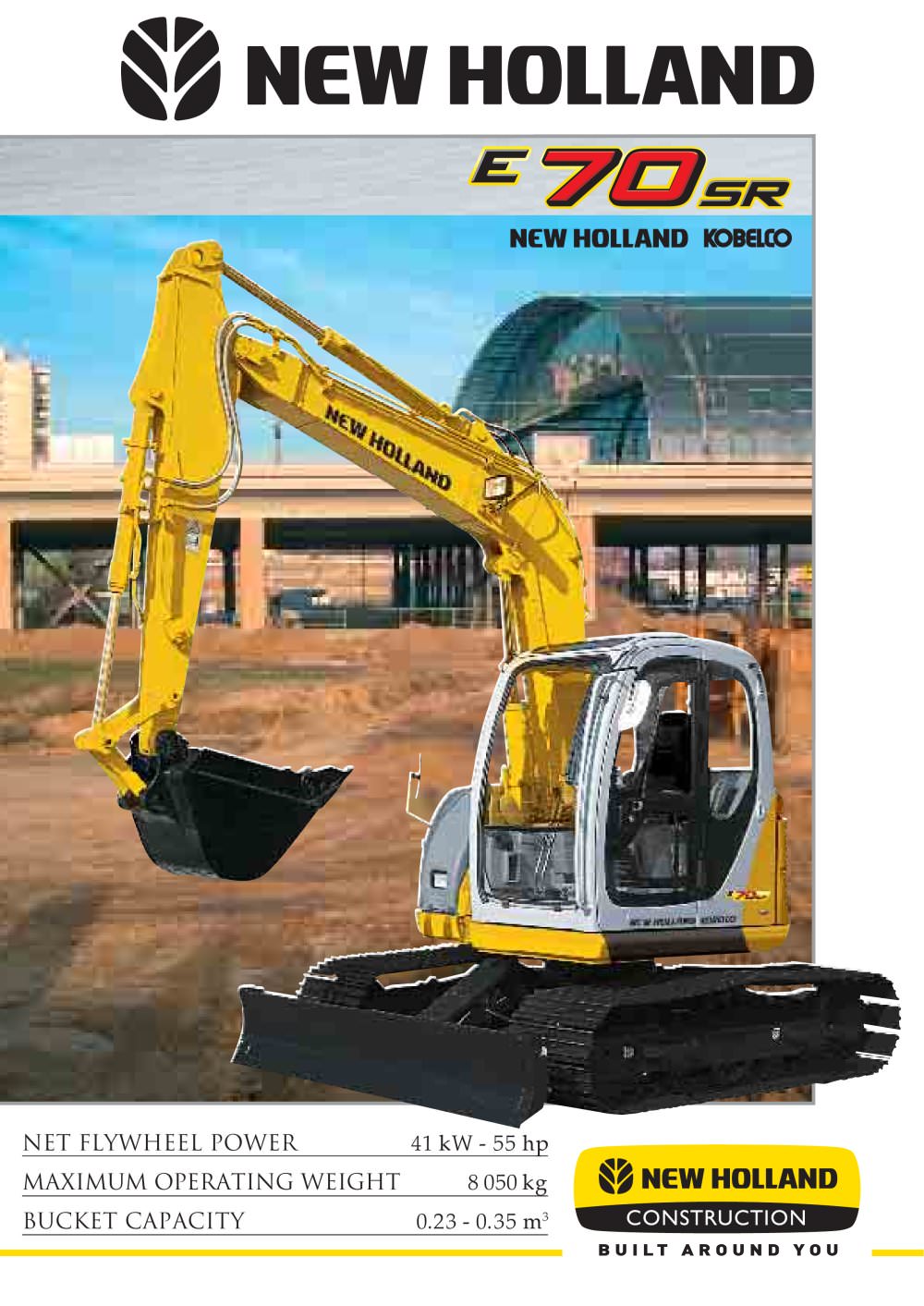

NET FLYWHEEL POWER 41 kW - 55 hp maximum operating weight 8 050 kg bucket capacity 0.23 - 0.35 m > 3 size="-1">

E > THE SR SERIES: THE STANDARD FOR operationwithin a SHORT rear swing radius SR > * RESPECT FOR THEENVIRONMENT The E70SR respectsthe European "reduced noise level" as per directive 2000/14/EC phase 2. Imagine a full-performance hydraulic excavator series with an ultra-short rear swing radius that allows theoperator to focus on the job in front of him, even in narrow spaces. The NEW HOLLAND SR Series is designed with precisely that in mind, and has won the approval of operators on work sites throughout the world. SR Series machines offer all the benefits of short rear swing, but also do the...

Open the catalog to page 2

When swinging 180 , the E70SR needs less than three metres of operatingspace, making continuous digging, swinging, and loading operations possible on small worksites. > High-quality urethane paint resists wear Steel-sheet cover is easy to repair The floor of the upper body is a singlesteel plate for added strength Tough, X-frame chassis can handle uneven terrain easily Front idlers feature a thick shaft diameter for added strength Front idler spring cover protects against soil Three-piece crawler frames provide excellent rigidity Modified shape of travel motor covers keeps out mud and...

Open the catalog to page 3

E.S.S.C. (Engine Speed Sensing Control device) on-board computer. for total installed hydraulic power exploitation. incorporating:-Maintenance programme-Self Diagnosis System-Operating Data Storage(engine rpm/operating pressure etc.) For perfect controllability and simultaneityof all movements. A.I. (Artificial Intelligence) A.P.S. (Automatic Priority System) valve actuation in relation to manipulators stroke and working pressure demand. High definition E.T.U. (EASY TO USE) multi- function monitor device. Computerized pumps delivery and main control > Three work modes are provided to match...

Open the catalog to page 4

The cab is laid out with plenty ofroom to give the operator acomfortable working environmentcomparable to that of a full-sizedmachine.Viscous cab mounts cushion thecab from vibration, and the cabitself is tightly sealed to reducenoise. High SpaceӔ cab with perfect visibility in all directions thanks to the wide glass area and transparent cab roof.Extremely low noise level and effective reduction of vibrations.All controls are within hand reach and in ergonomic position: more like a "living room" than a cab, for maximum operator comfort. Advanced climate control system maintains a...
