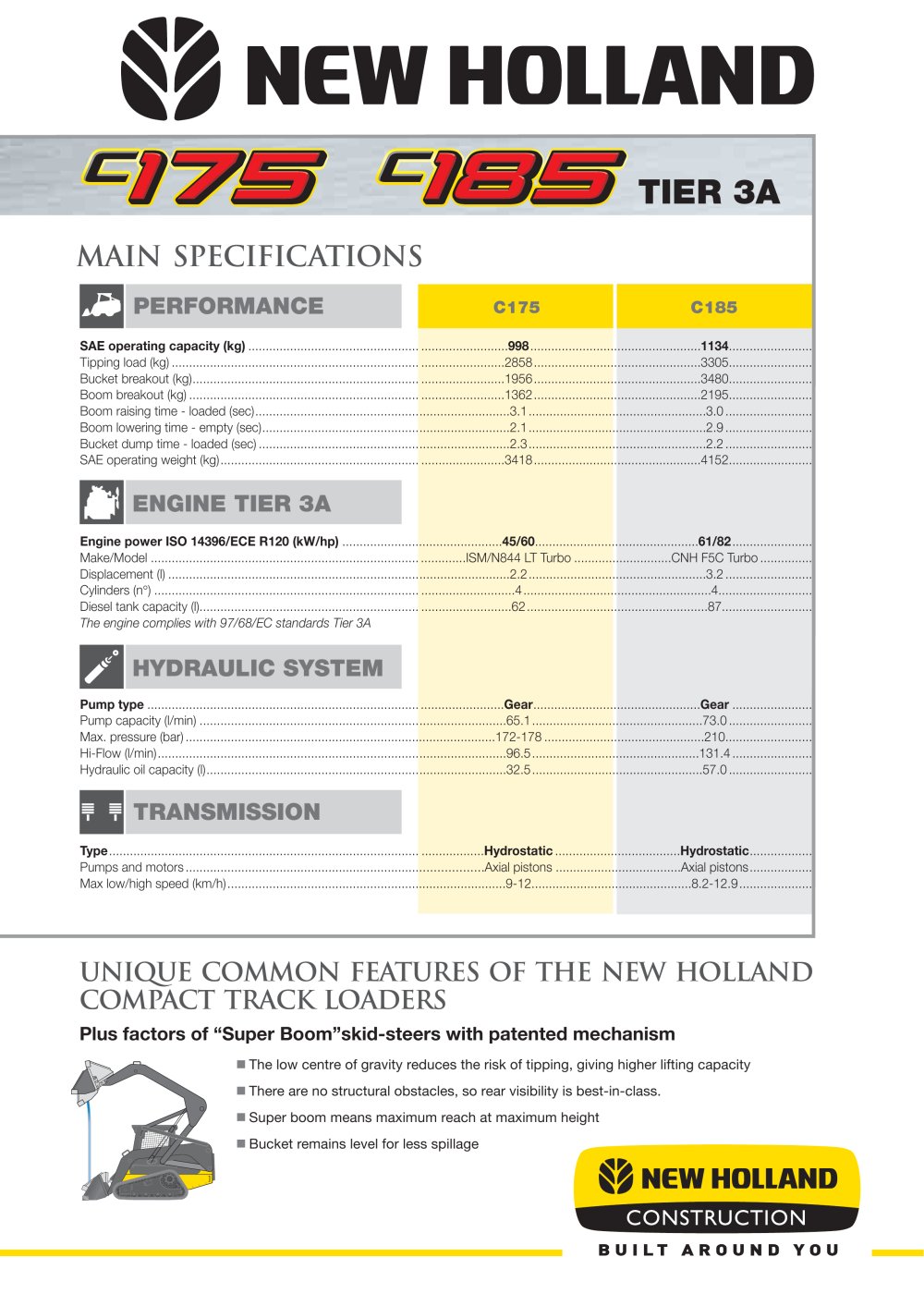

Main Specifications:
The document outlines the specifications for the New Holland C175 and C185 compact track loaders, highlighting their Tier 3A engine compliance. Key features include a low center of gravity for increased lifting capacity and best-in-class rear visibility due to the absence of structural obstacles. The 'Super Boom' mechanism allows for maximum reach at maximum height, and the bucket remains level to minimize spillage.

Performance Metrics:
SAE operating capacity, tipping load, bucket breakout, and boom breakout are specified for both models. The C175 has a tipping load of 2858 kg and a bucket breakout of 1956 kg, while the C185 has a tipping load of 3305 kg and a bucket breakout of 3480 kg. Engine power is 45/60 kW/hp for the C175 and 61/82 kW/hp for the C185.

Engine and Hydraulic System:
The engines comply with 97/68/EC standards Tier 3A. The C175 uses an ISM/N844 LT Turbo engine with a displacement of 2.2 liters, while the C185 uses a CNH F5C Turbo engine with a displacement of 3.2 liters. Both models feature a gear pump type with varying capacities and pressures.

Transmission:
Both models utilize hydrostatic transmission with axial piston pumps and motors, offering maximum speeds ranging from 9-12 km/h for the C175 and 8.2-12.9 km/h for the C185.

Main Dimensions:
Dimensions for both models are provided, with the C175 having a length of 3970 mm and the C185 a length of 4060 mm. Other dimensions such as width, height, and angles are also detailed.

Optional Features:
An optional pilot control version is available, offering a comfortable, energy-saving operator position, complete machine controllability, and smoother, safer movements.

Additional Information:
The document notes that specifications are subject to change for technical or other necessary reasons and that illustrations may not depict standard conditions.
