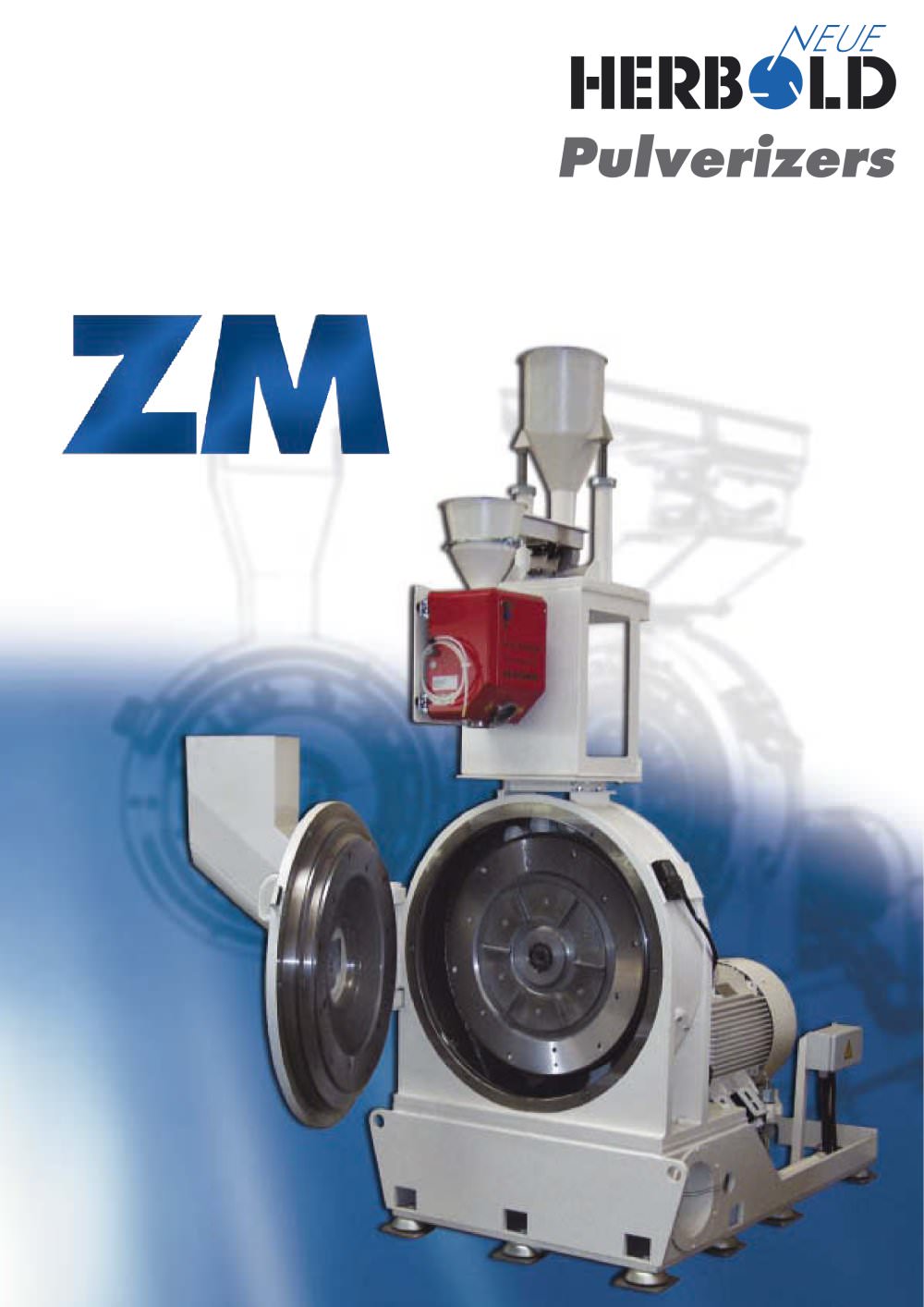

Pulverizers / Fine Grinders ZM Series

Product catalog summary

Applications
The Neue Herbold ZM pulverizer range is designed for pulverizing semi-rigid, brittle, and impact-resistant materials into a powdered form. It processes granulate sizes of 6-8 mm into powder within the 300-1000 micron range, with the final size adjustable via disc spacing. Typical materials include LDPE, HDPE, UPVC, PC, and other plastics.

Design
The ZM pulverizers are high-output units that can include automatic temperature control. Material is fed centrally between a fixed and a high-speed rotating disc, utilizing centrifugal force to process the material before pneumatic discharge. The particle size is influenced by material type, disc construction, and disc spacing. A screening machine with a coarse refeed unit can be integrated if needed.

Advantages

Long service life of discs between resharpenings
Fast and easy disc replacement and adjustment
Low residence time reduces thermal stress on materials
High throughput capabilities
Cost-effective operation

Pulverizer System with Screening Machine
The system can be enhanced with a screening machine for specific product requirements.

Performance Examples
Performance varies by model and material, with ZM 800 achieving 800-1000 kg/h for PE and 900-1100 kg/h for H-PVC pipe granulate.

Contact Information
Maschinen- und Anlagenbau GmbH, Wiesenstraße 44, 74889 Sinsheim, Phone: +49 (0) 7261 9248-0, Fax: +49 (0) 7261 9248-99, Website: www.neue-herbold.com, Email: [email protected]

Catalog excerpts

● Long service life of the discs between resharpenings > ● Fast and easy replacement and adjustment of discs > ● Low residence time means lower thermal stress on the process material > ● Ligh throughput capabilities The Neue Herbold ZM pulverizer range is designed for pulverising of semi-rigid, brittle and impact resistant materials where a powdered product is required. Granulate of size 6-8 mm is fed via vibrofeeder to the rotating high speed serrated discs to produce a powder product in the required 300-1000 micron range and where the final size is determined by the adjustable disc spacing....

Open the catalog to page 2

C Maschinen- und Anlagenbau GmbHWiesenstrae 44 ߷ 74889 Sinsheim Telefon +49 (0) 7261 9248-0 Telefax +49 (0) 7261 9248-99 www.neue-herbold.com ׷ [email protected] >

Open the catalog to page 3
