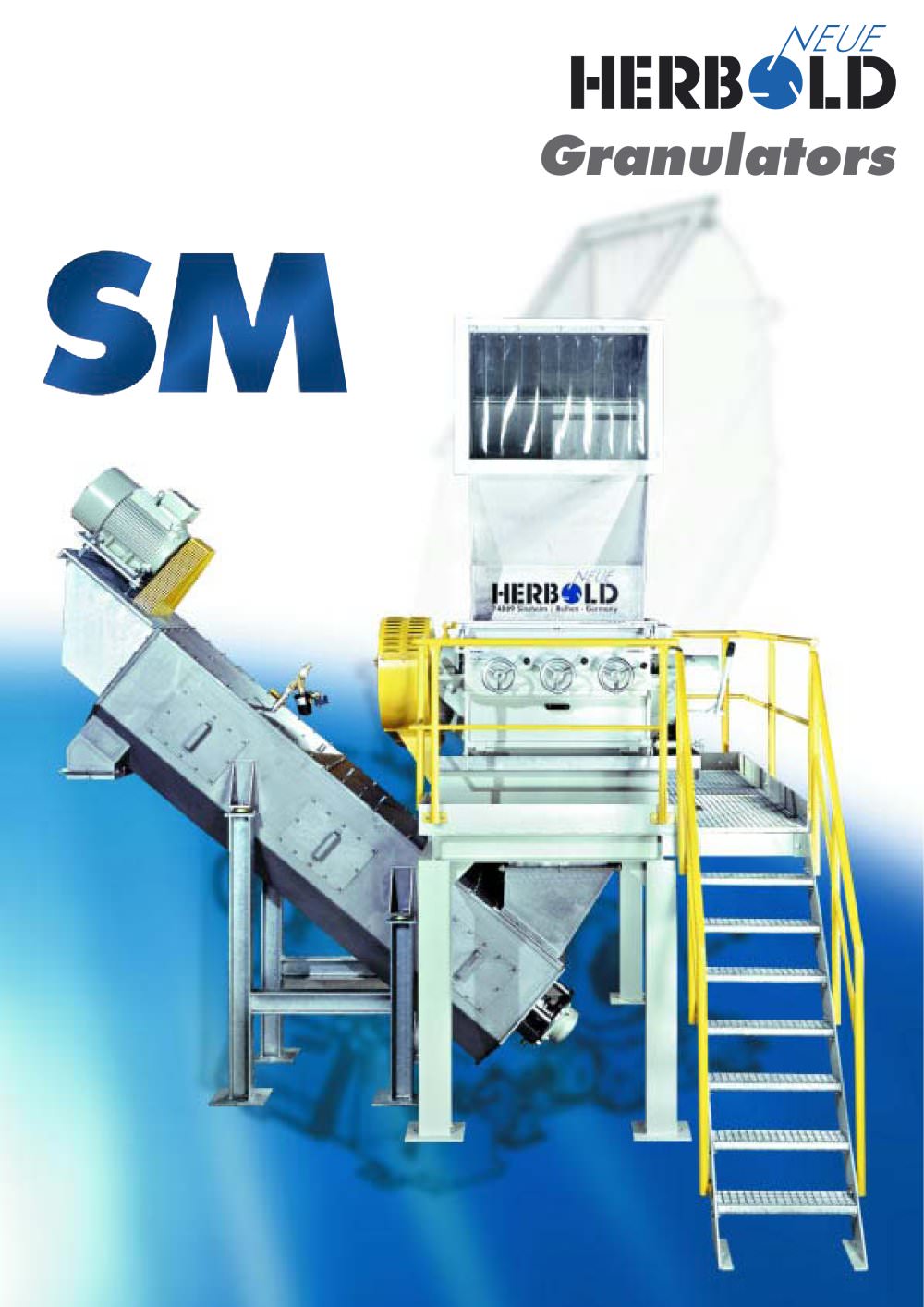

Plastic Granulators SM Series

Product catalog summary

Applications
The Neue Herbold SM range of heavy-duty granulators is designed for universal applications, capable of processing large headwaste lumps, purgings, massive profiles, thick-walled pipes, and other items with extreme wall thickness. The granulators can be adjusted for processing larger hollow parts like containers, drums, and crates, making them suitable for comprehensive recycling operations.

Design
The SM granulators feature a 'double cross cutting action' with oppositely inclined rotor and stator blades, ensuring precise cutting with lower power consumption, noise, and fines. Blades are pre-adjusted outside the machine using a setting jig. Bearings are mounted outside the granulator chamber to prevent contamination. The housing is welded and fracture-proof, with optional wear plates for added protection.

Rotor/Stator Knife Adjustment
Knife adjustments are made outside the granulator using an adjustment fixture, simplifying the installation process.

Advantages

Reduced downtime for blade changes due to preset blade feature
Lower noise levels from the double cross cut action
Compact design requiring minimal space
Universal, multi-purpose application
High throughput capacities
Energy-efficient size reduction

Contact Information
Maschinen- und Anlagenbau GmbH, Wiesenstraße 44, 74889 Sinsheim, Phone: +49 (0) 7261 9248-0, Fax: +49 (0) 7261 9248-99, Website: www.neue-herbold.com, Email: [email protected]

Catalog excerpts

● Reduced downtime for blade changing due to preset blade feature > ● Lower noise level characteristics of the double cross cut action > ● Compact design means minimum space requirement > ● Universal, multi-purpose application The Neue Herbold SM range of heavy duty granulators are specially designed for universal applications. With heavy duty rotor variants and the optional installation of extra stator blades the SM range can be used for heavy duty processing of large headwaste lumps and purgings, massive profiles, thick walled pipes and other extreme wall thickness items. Simple removal of...

Open the catalog to page 2

TypeFeed OpeningRotor DriveWeightThroughput approx. Type > 2008 EKXAKT Werbeagentur A SMV 600/1000 ABCD Maschinen- und Anlagenbau GmbHWiesenstrae 44 蟷 74889 Sinsheim Telefon +49 (0) 7261 9248-0 Telefax +49 (0) 7261 9248-99 www.neue-herbold.com ׷ [email protected] >

Open the catalog to page 3
