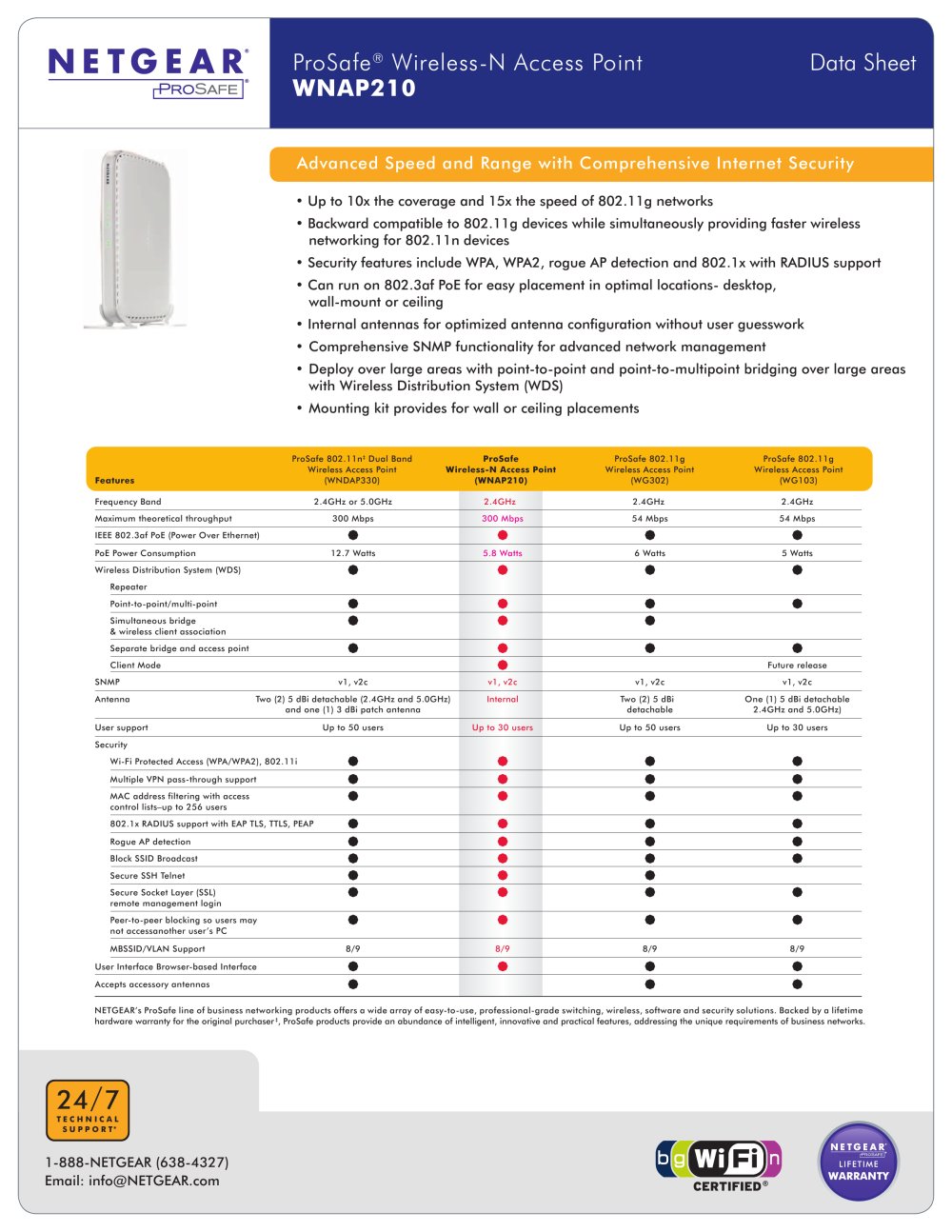

ProSafe® Wireless-N Access Point WNAP210 - 1

NETGEAR ProSafe® Wireless-N Access Point WNAP210 Data Sheet [-PROSAFE ' Advanced Speed and Range with Comprehensive Internet Security Up to 10x the coverage and 15x the speed of 802.11 g networks Օ Backward compatible to 802.11 g devices while simultaneously providing faster wireless networking for 802.11 n devices Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support Օ Can run on 802.3af PoE for easy placement in optimal locations- desktop, wall-mount or ceiling Internal antennas for optimized antenna configuration without user guesswork Օ Comprehensive SNMP functionality for advanced network management Deploy over large areas with point-to-point and point-to-multipoint bridging over large areas with Wireless Distribution System (WDS) Օ Mounting kit provides for wall or ceiling placements Features Frequency Band ProSafe 802.1 1 n* Dual Band Wireless Access Point (WN DAP330) 2.4GHz or 5.0GHz ProSafe Wireless-N Access Point (WNAP210) 2.4GHz ProSafe 802.11g Wireless Access Point (WG302) 2.4GHz ProSafe 802.11g Wireless Access Point (WG103) 2.4GHz Maximum theoretical throughput 300 Mbps 300 Mbps 54 Mbps 54 Mbps IEEE 802.3af PoE (Power Over Ethernet) PoE Power Consumption 12.7 Watts 5.8 Watts 6 Watts 5 Watts Wireless Distribution System (WDS) Repeater Point-to-point/multi-point Simultaneous bridge & wireless client association Separate bridge and access point Client Mode Future release SNMP vl, v2c v1, v2c v1, v2c v1, v2c Antenna Two (2) 5 dBi detachable (2.4GHz and 5.0GHz) and one (1) 3 dBi patch antenna Internal Two (2) 5 dBi detachable One (1) 5 dBi detachable 2.4GHz and 5.0GHz) User support Up to 50 users Up to 30 users Up to 50 users Up to 30 users Security Wi-Fi Protected Access (WPA/WPA2), 802.11i Multiple VPN pass-through support MAC address filtering with access control lists-up to 256 users 802.1 x RADIUS support with EAP TLS, TTLS, PEAP Rogue AP detection Block SSID Broadcast Secure SSH Telnet Secure Socket Layer (SSL) remote management login Peer-to-peer blocking so users may not accessanother user's PC MBSSID/VLAN Support 8/9 8/9 8/9 8/9 User Interface Browser-based Interface Accepts accessory antennas 0 9 9 NETGEAR's ProSafe line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser*, ProSafe products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks. 24/7 TECHNICALSUPPORT* 1-888-NETGEAR (638-4327) Email: info@NETGEAR.com CERTIFIED®

Open the catalog to page 1

ProSafe® Wireless-N Access Point WNAP210 - 2

ProSafe® Wireless-N Access Point WNAP210 Standards - IEEE 802.11 n 2.0 specification, 2.4 GHz - IEEE 802.11g, IEEE 802.11 b, 2.4 GHz - IEEE 802.3af Power over Ethernet (PoE) Օ Physical Spcifications - Dimensions: 223.5 x 153.2 x 28 mm (8.79 x 6.03 x 1.10 in) - Weight: .41 kg (.90 Ib) Physical Interfaces - One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink镙 (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support - Power adapter: 1 2V DC, 1A; plug is localized to country of sale - Four (4) LEDs: Power, test, LAN, WLAN Power - Power over Ethernet (PoE...

Open the catalog to page 2
