NETGEAR
ProSafe 802.11g Wireless Firewall

ProSafe 802.11g Wireless Firewall

Product catalog summary

Overview: The NETGEAR ProSafe 802.11g Wireless Firewall with USB Print Server (FWG114P) is a multifunctional device combining a router, switch, print server, wireless access point, and firewall. It supports secure wired and wireless network connections for up to 253 users, including 64 wireless users, and allows for shared broadband Internet access.

Key Features:

Wireless speeds up to 54 Mbps, compliant with IEEE 802.11g and backward compatible with 802.11b.
Built-in USB print server for shared printer access.
Stateful Packet Inspection Firewall and Wi-Fi Protected Access (WPA) for enhanced security.
4-port 10/100 switch and a 100 Mbps WAN port for high-speed broadband services.
Fail-safe features for backup Internet connection via ISDN/analog modem.

Security:

WPA encryption and SPI firewall to protect against unauthorized access and DoS attacks.
VPN pass-through for secure remote access.
Content filtering and logging for monitoring Internet activity.

Management and Setup:

Smart Wizard for automatic ISP detection and configuration.
Web-based administration with remote management capabilities.
Support for MAC Address cloning, DMZ, and advanced user settings.

Specifications:

Physical: Dimensions 32 x 188 x 124 mm, weight 0.64 kg, power adapter 12V DC 1.2A.
Performance: WAN-to-LAN throughput 55.9 Mbps, wireless throughput 20 Mbps.
Environmental: Operating temperature 0 to 40º C, humidity up to 90% non-condensing.

System Requirements: Broadband Internet service, 2.4 GHz wireless or Ethernet adapter, TCP/IP networking software, and compatible operating systems (Windows 95/98/Me/2000/XP).

Package Contents: Includes the FWG114P device, Ethernet cable, power adapter, resource CD, installation guide, and warranty/support information card.

Related Products: Compatible with various NETGEAR wireless adapters and antennas for extended network capabilities.

Catalog excerpts

Desktop PC with WG311 802.11g Wireless PCI Adapter Notebook PC with WAG511 802.11a/b/gDual Band Wireless PC Card > ISDN or Analog modem Notebook PC with MA521 802.11bWireless PC Card Desktop PC with FA311 Ethernet CardPrinter FWG114P ProSafe 802.11g Wireless Firewall/PrintServerNotebook PCs withWG511 802.11gWireless PC CardBroadbandmodem Desktop PC with WG121 802.11gWireless USB AdapterPDA with MA701 802.11b WirelessCompact Flash Card >

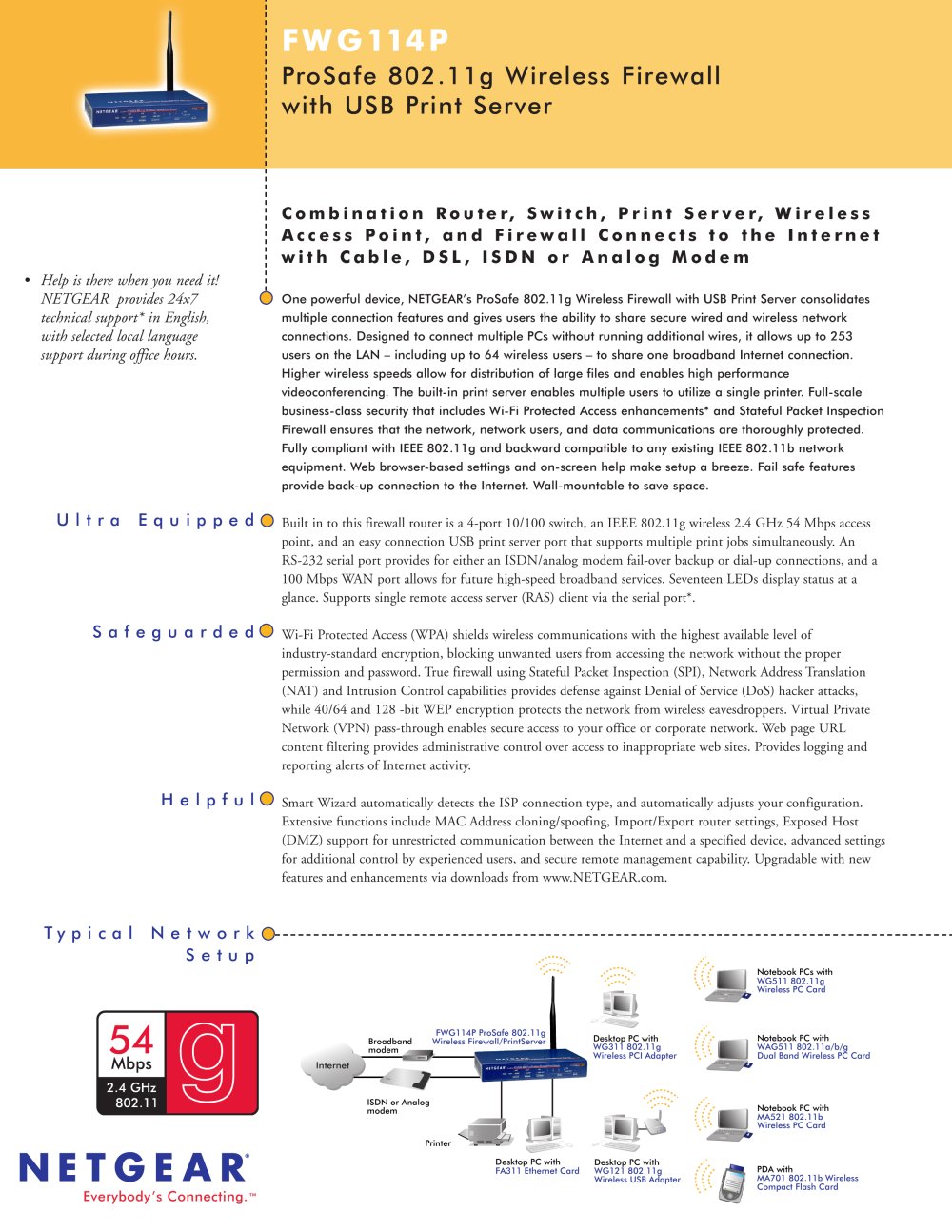

Open the catalog to page 1

Physical Interfaces:- Օ Electromagnetic Compliance:- LAN: Four (4) 10/100 Mbps, Auto Uplink > TM FCC Part 15, Class B RJ-45 ports - Wi-Fi certification - WAN: One (1) 10/100 Mbps Auto UplinkRJ-45 port RS-232 serial port with DB-9 connector for external analog or ISDN modem - Printer Connection: USB 1.1, upgradable to USB 2.0 with up to 1.5 Mbps transfer rate > - NETGEAR 3-year Warranty Wireless:- IEEE 802.11g 54 Mbps Wireless Access Point - Single 5 dBi, detachable antenna > - Typical maximum output power in Channel 6: - Broadband Internet service and modem with Ethernet RJ-45 connector North...

Open the catalog to page 2
