ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S
14Pages

Catalog excerpts

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 1

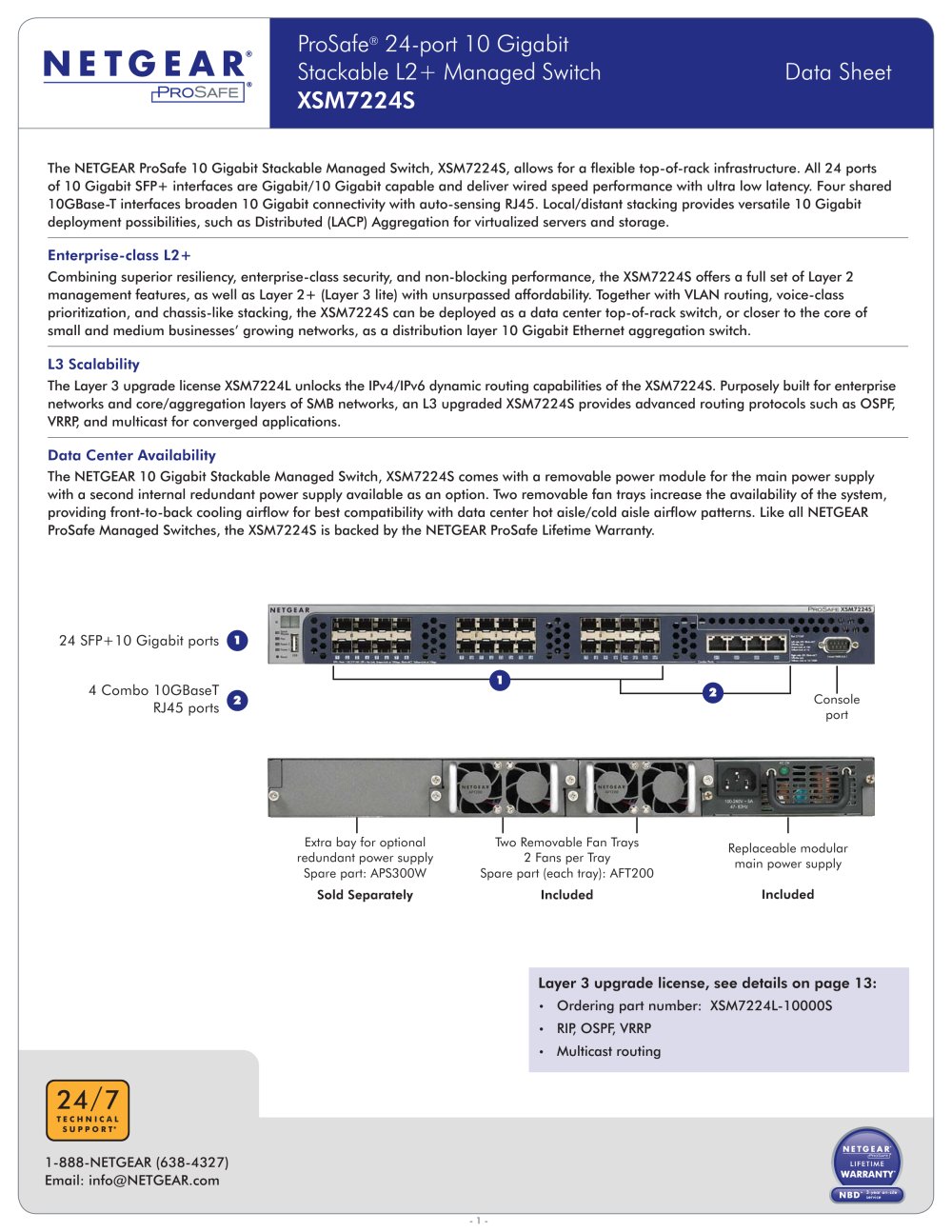

NETGEAR' ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch Data Sheet XSM7224S [-PROSAFE The NETGEAR ProSafe 10 Gigabit Stackable Managed Switch, XSM7224S, allows for a flexible top-of-rack infrastructure. All 24 ports of 10 Gigabit SFP+ interfaces are Gigabit/10 Gigabit capable and deliver wired speed performance with ultra low latency. Four shared 10GBase-T interfaces broaden 10 Gigabit connectivity with auto-sensing RJ45. Local/distant stacking provides versatile 10 Gigabit deployment possibilities, such as Distributed (LACP) Aggregation for virtualized servers and storage. Enterprise-class L2 + Combining superior resiliency, enterprise-class security, and non-blocking performance, the XSM7224S offers a full set of Layer 2 management features, as well as Layer 2+ (Layer 3 lite) with unsurpassed affordability. Together with VLAN routing, voice-class prioritization, and chassis-like stacking, the XSM7224S can be deployed as a data center top-of-rack switch, or closer to the core of small and medium businesses' growing networks, as a distribution layer 10 Gigabit Ethernet aggregation switch. L3 Scalability The Layer 3 upgrade license XSM7224L unlocks the IPv4/IPv6 dynamic routing capabilities of the XSM7224S. Purposely built for enterprise networks and core/aggregation layers of SMB networks, an L3 upgraded XSM7224S provides advanced routing protocols such as OSPF, VRRP, and multicast for converged applications. Data Center Availability The NETGEAR 10 Gigabit Stackable Managed Switch, XSM7224S comes with a removable power module for the main power supply with a second internal redundant power supply available as an option. Two removable fan trays increase the availability of the system, providing front-to-back cooling airflow for best compatibility with data center hot aisle/cold aisle airflow patterns. Like all NETGEAR ProSafe Managed Switches, the XSM7224S is backed by the NETGEAR ProSafe Lifetime Warranty. 24 SFP+10 Gigabit ports 4 Combo 10GBaseT RJ45 ports 2 Console port Extra bay for optional redundant power supply Spare part: APS300W Sold Separately T \ Two Removable Fan Trays 2 Fans per Tray Spare part (each tray): AFT200 Included Replaceable modular main power supply Included Layer 3 upgrade license, see details on page 13: Ordering part number: XSM7224L-10000S Օ RIP OSPF, VRRP Multicast routing 24 / 7 TECHNICAL SUPPORT* 1-888-NETGEAR (638-4327) Email: info@NETGEAR.com ',11,^ - 1 -

Open the catalog to page 1

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 2

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S Features at a Glance XSM7224S Hardware Main Features Benefits 24-port 10Gigabit SFP + Compatible with 1000 speeds 10 Gigabit wire-speed performance for aggregation applications Օ Ultra low latency for top-of-rack applications Connect any Gigabit Ethernet (1000BaseT, 1000SX/LX) or 10 Gigabit Ethernet (10GBaseX) equipment with an array of SFP modules 4 shared 10GBaseT RJ45 interfaces Օ 100/1000/10GBaseT auto-sensing flexibility 10 Gigabit up to 100 m with Category 6A or better cables Օ Legacy Category 6 cables allow up to 50...

Open the catalog to page 2

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 3

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S Target Applications Top-of-Rack Access Layer for Servers With virtualization, servers and network storage devices need high-performance connectivity, low latency and network redundancy. The XSM7224S simplifies and lowers the cost of typical top-of-rack architecture. In this configuration, two stacked switches per rack connect up to 21 servers/storage units in a server-to-switch distributed redundant trunking mode. The hardware-stacking dual-ring topology provides one unique CLI/GUI platform, simple management, network and...

Open the catalog to page 3

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 4

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S NETGEAR Hardware Stacking Local and Distant Stack Topology Local Stack Topology When switches are deployed in the same rack they can use either: SFP+ Direct Attach cables and SFP+ ports Օ CAT6A RJ45 cables and combo 10GBaseT ports Four ports per switch are preferred for stacking and all 24 ports are stack-capable. Each ring speed is 20 Gbps half duplex (40 Gbps full duplex). Dual ring overall speed is 40 Gbps half duplex (80 Gbps full duplex). AXC761 1 m Direct Attach SFP+ Cable Two cables per switch in the stack Or Cat6A...

Open the catalog to page 4

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 5

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S NETGEAR Hardware Stacking Features Benefits Single IP address management Stack up to 4 switches as a single "chassis" logical unit Օ One GUI and one CLI managing the whole stack The stack acts as a single switch in the network Օ The other switches in the network also see the stack as a single switch Growth is easy, adding a switch to the stack is as simple as connecting the new unit to the stack (configuration is instantly updated) Bi-directional architecture 4 ports per switch 80 Gigabit local stacking capacity 80 Gigabit...

Open the catalog to page 5

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 6

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S Associated Modules and Optics SFPs (optics) AXM761 ProSafe 10GBase-SR SFP+ LC GBIC 10 Gigabit Ethernet "short-reach" fiber connectivity Օ LC duplex connector Fits into any 10 GE SFP+ interface (front) Օ Drives 10 Gigabit Ethernet up to 300 m distances with 50/125pm laser-optimized OM3 multimode fiber cables Drives 10 Gigabit Ethernet up to 33 m distances with 62.5/125pm OM1 multimode fiber cables Օ 5-year Warranty Ordering part number: AXM761-10000S AXM762 ProSafe 10GB ase-LR SFP+ LC GBIC Օ 10 Gigabit Ethernet...

Open the catalog to page 6

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S - 7

ProSafe® 24-port 10 Gigabit Stackable L2+ Managed Switch XSM7224S Associated Modules and Optics AGM734 ProSafe 10OOBase-T ^^j*^. SFP RJ45 G^C^^^^^ Gigabit Ethernet RJ45 copper connectivity Օ RJ45 connector Fits into any 10 GE SFP+ interface (front) Օ Drives Gigabit Ethernet up to 100 m distances with CAT5E / CAT6 or better cables Supports only 1000BaseT mode, no 10BaseT/100BaseT auto-sensing Օ 5-year Warranty Ordering part number: AGM734-10000S AXC753 ProSafe 3m Direct Attach SFP+ to XFP 9 3m SFP+ to XFP Direct Attach Cable Օ Direct Attach copper cable (10GSFP+Cu) SFP+ connector on one...
