NETGEAR® 8800 Series

NETGEAR® 8800 Series

Product catalog summary

Overview: The NETGEAR 8800 Series Chassis Switches are engineered to streamline network infrastructures with core, aggregation, and intelligent edge modules. They provide high-density, line-rate connectivity options including Gigabit copper, Gigabit optical, and 10 Gigabit optical I/O modules, with optional PoE support.

Specifications: Available in 6-slot and 10-slot configurations, these switches support up to 800 Gbps fabric bandwidth and a forwarding rate of 570 Mpps. They feature redundant, load-sharing power supplies and cooling fans for enhanced availability. The system supports IPv6 and advanced core applications, offering a comprehensive L2/L3/L4 feature set.

Modules: The series includes various I/O modules such as XCM8808X with 8 XFP 10 Gigabit ports, XCM8848T with 48 Gigabit ports, and XCM8824F with 24 SFP Gigabit ports. Supervisory modules like XCM88S1 improve system management and performance.

High Availability: The design incorporates redundant Supervisory modules and power supplies with automatic failover capabilities. The NETGEAR OS supports preemptive multitasking and protected memory, enhancing system integrity and protection against DoS attacks.

Performance and Connectivity: The switches support high-performance connectivity with local switching on every I/O module and 48 Gbps per slot bidirectional bandwidth. They can accommodate up to 400 Gigabit ports or 64 10 Gigabit ports in a single chassis.

Security: Enterprise-class security features include user authentication, sFlow technology for threat detection, and hardware-based ACLs. Secure management protocols and policy-based routing enhance network protection.

Power and Efficiency: Energy-efficient, the switches consume 1.5 Watts per Gigabit Ethernet port and 7.0 Watts per 10 Gigabit Ethernet port, supporting up to 288 Class 3 PoE devices.

Conclusion: The NETGEAR 8800 Series Chassis Switches offer a robust, high-performance solution for enterprise networks, providing scalability, security, and efficiency for modern networking needs.

Key Components: The XCM8806 and XCM8810 chassis provide dedicated slots for I/O and Supervisory modules, supporting up to six power supplies for redundancy. The XCM88S1 Supervisory Module offers active switching fabric and CPU control, while I/O modules like XCM8848T and XCM8824F provide extensive connectivity options.

Technical Specifications: The switching fabric supports up to 800 Gbps with dual Supervisory modules. Supported protocols include IEEE standards for Ethernet, PoE, Spanning Tree Protocols, and various management and security protocols.

Applications: Ideal for core network applications, these switches provide high-speed connections to network cores and support PoE for devices like IP phones and wireless access points.

Supported Protocols: Includes support for IPv4 and IPv6, various OSPF, PIM, and BGP protocols, as well as QoS and VLAN services.

Physical Specifications: Detailed measurements and weights for chassis, power supply, supervisory module, and I/O modules, along with power consumption and heat dissipation details.

Operating Specifications: Includes operating temperature and humidity ranges, shock and vibration tolerances.

Regulatory and Safety Standards: Compliance with North American, European, and international safety and EMC standards.

Environmental Standards: Storage, transportation, and operational standards as per EN/ETSI guidelines.

Warranty and Support: Three-year warranty with next business day onsite replacement support in select regions, along with advanced technical support and software maintenance service packs.

Ordering Information: Details on available chassis, modules, power supplies, and accessories, with part numbers for ordering.

Catalog excerpts

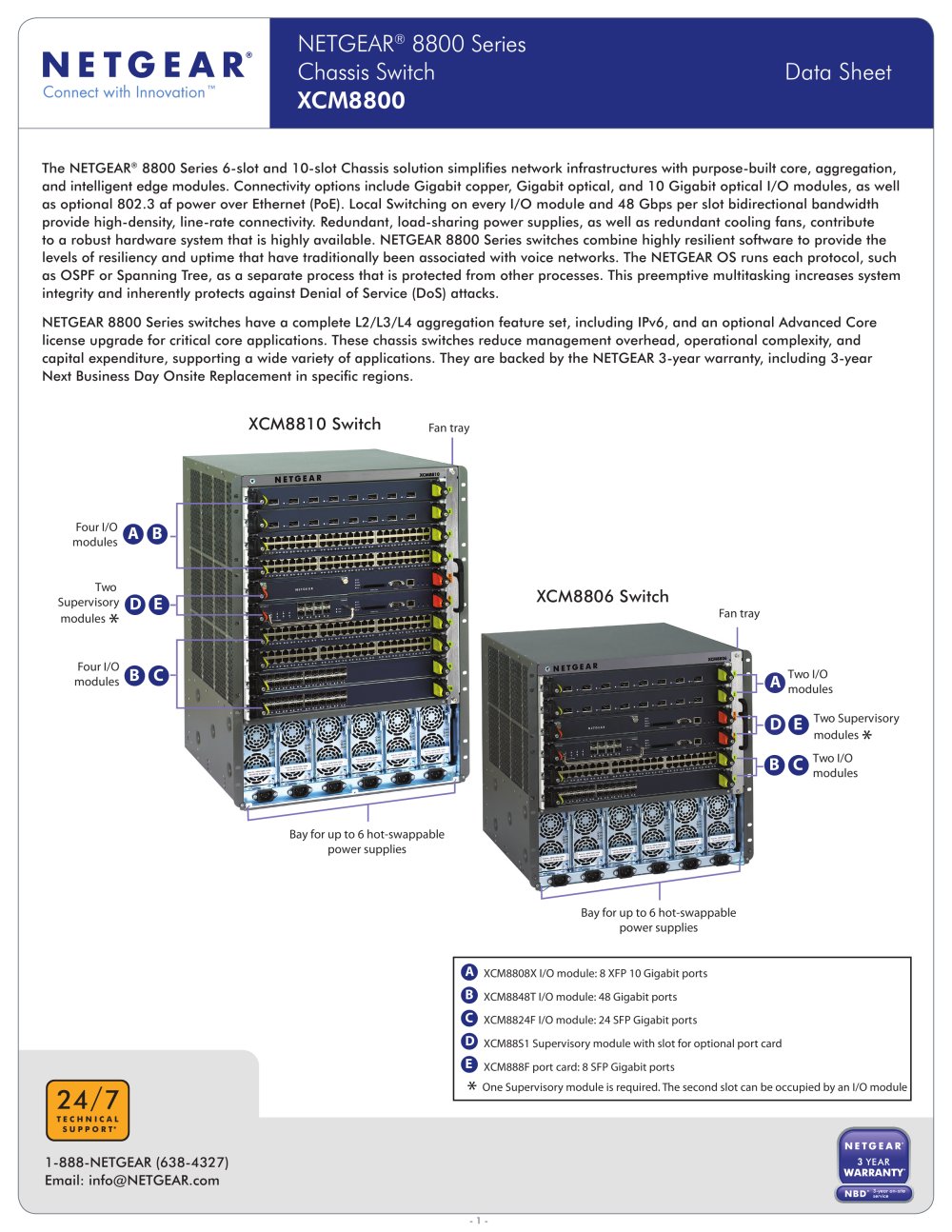

NETGEAR® 8800 Series Chassis Switch XCM8800 Key Performance Metrics Area Key Specifications NETGEAR 8800 Series Chassis Capacity Supervisory Modules/Chassis 1 Supervisory module 2 Supervisory modules Gbps/Slot (I/O module slots) 24 Gbps 48 Gbps Gbps/Slot (Secondary Supervisory slot when I/O module inserted) 12 Gbps - Fabric bandwidth 424 Gbps 800 Gbps Total throughput Intra-blade 570 Mpps (10-slot chassis) 288 Mpps (6-slot chassis) 570 Mpps (10-slot chassis) 288 Mpps (6-slot chassis) Inter-blade 285 Mpps (10-slot chassis) 144 Mpps (6-slot chassis Hitless Supervisory module failover No Yes Port...

Open the catalog to page 2

NETGEAR® 8800 Series Chassis Switch XCM8800 Supervisory Module Options NETGEAR 8800 Series Supervisory Module XCM88S1 CPU Dual Core Switch Fabric Capacity 424 Gbps (with 1 Supervisory Module) 800 Gbps (with 2 Supervisory Modules) Gigabit Uplink Optional XCM888F (8-port 1000Base-X SFP Card) PoE Options NETGEAR 8800 Series XCM8848T I/O Modules with Installed XCM88P PoE Daughter Cards N + 1 Power Redundancy 110 V Power Supply 220 V Power Supply 802.3af PoE Class Number of Modules Number of Ports Number of Power Supplies 802.3af PoE Class Number of Modules Number of Ports Number of Power Supplies...

Open the catalog to page 3

NETGEAR® 8800 Series Chassis Switch XCM8800 High Availability . . . . r . A high-performance network connection, whether it connects PCs and IP telephones at the access layer or interconnects servers in a cluster, is useful only if it is also highly available. To achieve voice-class network availability, NETGEAR 8800 Series chassis switches combine highly resilient software and redundant hardware with high-availability network protocols. The hardware design of the NETGEAR 8800 Series switches includes redundant Supervisory modules, power supplies, and other components. Redundant Supervisory modules...

Open the catalog to page 4

NETGEAR® 8800 Sries Chssis Switch XCM8800 in the switch increase not only reliability but also the switching fabric and throughput. Two Supervisory modules provide switching capacity for up to 800 Gbps of fabric bandwidth and 570 Mpps Layer 2-Layer 3 hardware forwarding rate. IPv6 packet forwarding makes available trillions of new IP addresses and offers better address allocation and address aggregation. Other features of IPv6 provide significantly greater end-to-end network connectivity and services. NETGEAR 8800 Series switches support IPv6 today, preparing enterprises to handle IPv6 traffic...

Open the catalog to page 5

NETGEAR® 8800 Series Chassis Switch XCM8800 Features at a Glance High-Availability Features Redundant system design Redundant Supervisory modules Օ Advanced chassis design with passive backplane, isolated control and data planes, redundant controller boards for power distribution, and environmental monitoring Redundant, load-sharing power supplies Օ Redundant cooling fans in a hot-swappable fan tray Modular NETGEAR OS operating system True preemptive multitasking and protected memory Օ Process monitoring and restart Loadable software modules High-availability network protocols Օ Spanning...

Open the catalog to page 6

NETGEAR® 8800 Series Chassis Switch XCM8800 Target Applications High-Density Access Layer for an Enterprise Network Core 10 GE NETGEAR 8800 Series chassis switches satisfy the complete networking needs for a small to medium enterprise. The typical multi-switch edge network can be consolidated into a single, highly available switch that delivers high-density PoE for IP telephony, high-speed performance for services, and comprehensive security. The illustrated network uses an XCM8810 10-slot chassis and an XCM8806 6-slot chassis. Redundant Supervisory modules in each switch provide maximum switching...

Open the catalog to page 7

NETGEAR® 8800 Series Chassis Switch XCM8800 Target Applications High-Performance Network Core Switch GE 10GE NETGEAR 8800 Series 6-slot and 10-slot chassis switches provide the ideal core network with high-performance and high-density 10 Gigabit Ethernet and Gigabit Ethernet interfaces. Network administrators can connect up to 66 10-Gigabit ports or 400 Gigabit ports in a single 14RU NETGEAR XCM8810 system, with two Supervisory modules for perfect redundancy and maximum throughput. The illustrated sample network uses two XCM8810 chassis switches at the core of the network, connected using 10-Gigabit...

Open the catalog to page 8

NETGEAR® 8800 Series Chassis Switch XCM8800 Available Components and Associated Optics Chassis, Components, and Accessories XCM8806 8800 Series 6-slot Chassis Four dedicated I/O module slots labeled 1, 2, 5, and 6 One dedicated Supervisory module slot labeled 3/A One dual-purpose slot for either an I/O or Supervisory module labeled 4/B Power supply bay that accommodates up to six power supplies (ordered separately) Redundant, load-sharing, hot-swappable power supplies (minimum 3 units for 2 + 1 redundancy) Field-replaceable, hot-swappable fan tray (included) Two field-replaceable, hot-swappable...

Open the catalog to page 9

NETGEAR® 8800 Sries Chssis Switch XCM8800 Available Components and Associated Optics Ch颢ssis, Components, and Accessories XCM8848T 8800 Series 48-port Gigabit copper I/O Module 48 auto-sensing 10/100/1000Base-T ports using RJ-45 connectors Օ Line-rate local switching Hot-swappable Օ Optional 802.3af PoE daughter card (XCM88P) 3-year warranty Օ Ordering part number: XCM8848T-10000S XCM88P 8800 Series PoE Daughter Card for XCM8848T Adds PoE support to the 48-port copper I/O module Օ 3-year warranty Ordering part number: XCM88P-10000S XCM8824F 8800 Series 24-port Gigabit fiber I/O Module Օ 24...

Open the catalog to page 10

NETGEAR® 8800 Sries Chssis Switch XCM8800 Available Components and Associated Optics Ch颢ssis, Components, and Accessories XCM8806PC 8800 Series Power Supply Bay Cover for XCM8806 Optional power supply bay cover for 6-slot chassis Օ 3-year warranty Ordering part number: XCM8806PC-10000S XCM8810PC 8800 Series Power Supply Bay Cover for XCM8810 Օ Optional power supply bay cover for 10-slot chassis 3-year warranty Օ Ordering part number: XCM8810PC-10000S XCM8806FT 8800 Series Spare Fan Tray Unit for XCM8806 NO, coo' Replacement fan tray for 6-slot chassis Օ 3-year warranty Ordering part number:...

Open the catalog to page 11
