Overview: The CW92BLMA115-82L406-01 is a 92mm (NEMA 36) 3-phase brushless DC motor designed for industrial automation, robotics, and precision motion control applications. It offers smooth operation with a rated power of 82W and operates at a supply voltage of 48 ±10% VDC.

Key Highlights:

Rated Power: 82 W
Supply Voltage: 48 ±10% VDC
Rated Torque: 1.3 N·m at 600 RPM
Frame Size: 92mm (NEMA 36)
3-phase brushless DC design

Specifications:

Poles: 10
Phases: 3
Rated Speed: 600 RPM
Rated Current: 2.5 A
Max Speed: 1100 RPM
Max Torque: 2.6 N·m
Voltage Constant: 30.7 ±5% V/kRPM
Line Resistance: 0.96 ±5% Ω at 20°C
Line Inductance: 6.23 ±10% mH
Insulation Resistance: 100MΩ at 500VDC
Insulation Class: B 130°C
Weight: 3.4 kg
Part Number: CW92BLMA115-82L406-01

Additional Information: The motor includes a mechanical drawing and a torque-speed curve specific to the CW92BLMA115-82L406-01 model, which are essential for integration and performance analysis.

Catalog excerpts

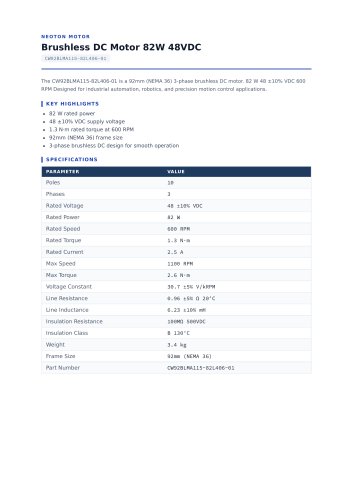

NEOTON MOTOR The CW92BLMA115-82L406-01 is a 92mm (NEMA 36) 3-phase brushless DC motor. 82 W 48 ±10% VDC 600 RPM Designed for industrial automation, robotics, and precision motion control applications. • 92mm (NEMA 36) frame size • 3-phase brushless DC design for smooth operation PARAMETER VALUE Rated Voltage Rated Power Rated Speed Rated Torque Rated Current Max Speed Max Torque Voltage Constant Line Resistance Line Inductance Insulation Resistance Insulation Class Weight Frame Size Part Number
