NEGRI BOSSI
CanBel Full Electric Machine

CanBel Full Electric Machine

Product catalog summary

Overview: The document discusses the "Full Electric" solution for injection molding machines (IMMs) developed by Negri Bossi, focusing on the Canbel series. It highlights the advantages of this solution over traditional hydraulic systems, emphasizing efficiency, reliability, and environmental benefits.

Key Specifications:

Energy Efficiency: The Full Electric solution reduces electric consumption by 50% compared to conventional hydraulic systems and 40% compared to systems with digital control of flow rates and pressure.
Environmental Impact: Eliminates the need for hydraulic oils, reducing maintenance and environmental contamination.
Cycle Time Reduction: Achieved through complete overlapping of movements and the use of regenerative drivers.
Advanced Actuators: Utilizes Direct Drive actuators and new generation permanent magnet motors for improved performance.

Technological Innovations:

CANbus Control System: Developed in collaboration with Bosch, this system enhances digital control and simplifies machine operations.
Electric Injection Unit: Patented by Negri Bossi, it allows for increased injection pressure and torque during plasticizing phases.
Sealed System: Prevents lubricant leakage, ensuring cleaner operation.

Performance Enhancements:

Dynamic Performance: Improved opening/closing times and precise control of speed and actuator force.
Flexibility and Reliability: Enhanced by the digital control system and innovative actuator solutions.

Conclusion: The Canbel series represents a significant advancement in electric IMMs, offering substantial energy savings, reduced environmental impact, and improved operational efficiency. It stands out as a pioneering solution in the industry, combining digital innovation with practical benefits.

Specifications: The CANBEL machines are designed to operate in clean conditions due to the absence of hydraulic circuits and hidden lubrication. They feature a high-capacity on-board PC with a real-time operating system and JAVA platform, allowing for easy adjustments and remote management. The machines are equipped with bi-metallic cylinders for wear resistance and heater bands for energy efficiency. Absolute encoders ensure high precision and position recognition.

CANbus Control System: Developed in collaboration with Bosch, the CANbus system allows for digital control of injection machines. Key features include the use of a single CPU for machine cycle and remote communication, elimination of analogue cards, and synchronous information transfer for precise control. The system also supports digital self-diagnosis and reduced cabling for increased reliability.

Advantages: The document outlines several advantages of the CANbus system, such as improved reliability, simplicity, flexibility, precision, and repeatability. The system's design reduces the likelihood of breakdowns and simplifies maintenance and operation.

Technical Data: The document includes detailed technical specifications for various models of the CANBEL machines, such as dimensions and configurations, highlighting their scalability and adaptability to different industrial needs.

Contact Information: The document provides contact details for various branches of NEGRI BOSSI and SACMI across the globe, including locations in the UK, France, Spain, Canada, Brazil, USA, Mexico, Russia, India, Poland, and Italy. Each entry includes the address, telephone, fax numbers, and email addresses for sales or service inquiries.

Main Overall Dimensions: The document lists the main overall dimensions in three languages: English, Spanish, and French. However, specific measurements or details are not provided in the text snippet.

Product Information: The document mentions 'FULL ELECTRIC MACHINES' indicating a focus on electric machinery, but no further specifications or details are provided in the text snippet.

Catalog excerpts

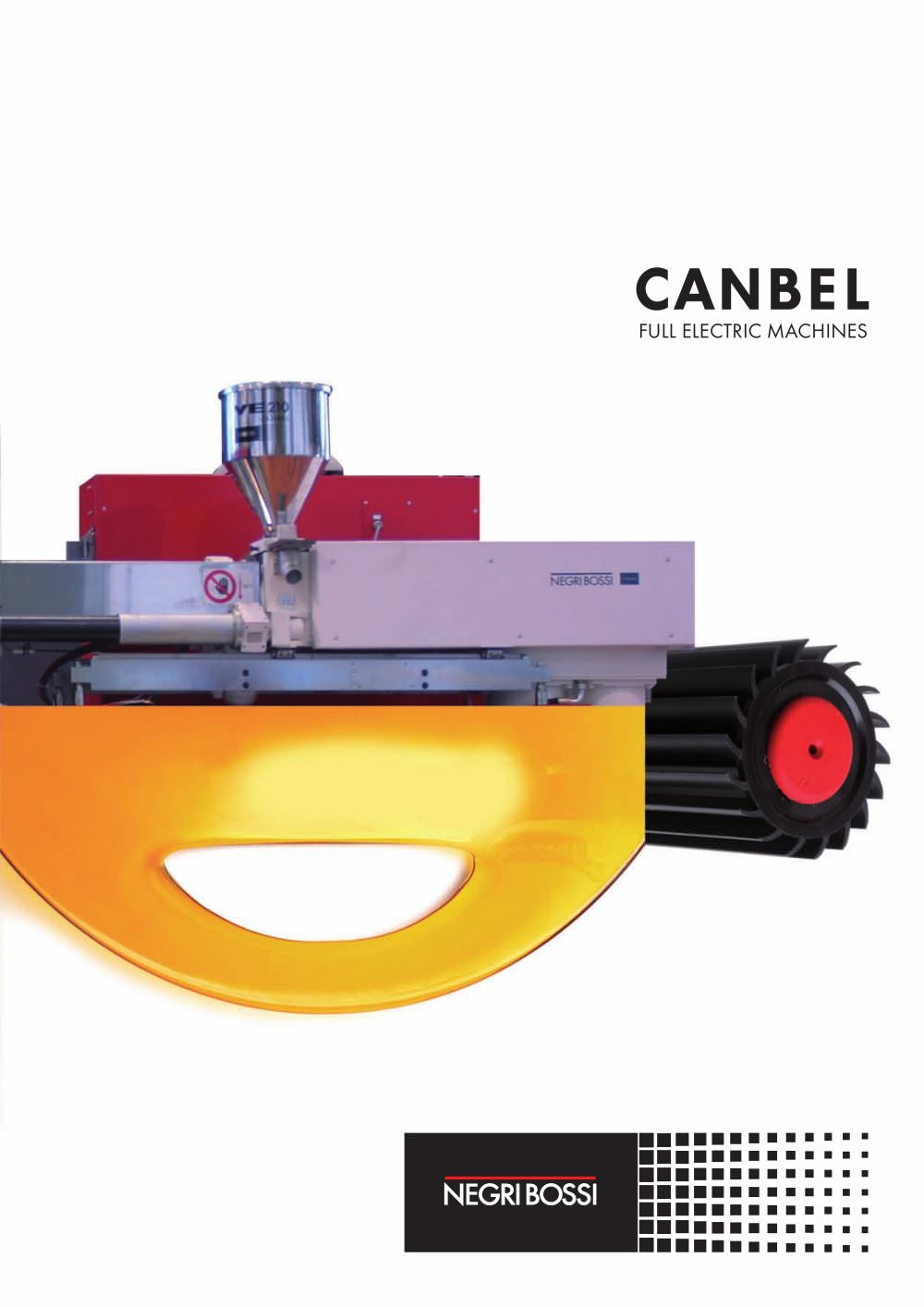

ITALIANO DEUTSCH Pусский FULL ELECTRIC MACHINES Canbel_cop no tasca META.indd 2 5-03-2009 16:34:40

Open the catalog to page 1

CanBel ing-spa-fra META.indd 2 5-03-2009 16:33:37

Open the catalog to page 2

LOW CONSUMPTION AND RESPECT FOR THE ENVIRONMENT BAJOS CONSUMOS Y RESPETO POR EL AMBIENTE FAIBLE CONSOMMATION ET RESPECT DE L’ENVIRONNEMENT The “Full Electric” solution guarantees a significant reduction of electric consumption, even compared to more innovative hydraulic solutions. CanBel ing-spa-fra META.indd 3 La solución “full electric” garantiza una reducción de los consumos eléctricos significativa, también con referencia a las soluciones hidráulicas más innovadoras. La solution “full electric” garantit une réduction significative des consommations électriques même comparativement aux solutions...

Open the catalog to page 3

CanBel ing-spa-fra META.indd 4 5-03-2009 16:33:43

Open the catalog to page 4

CYCLE TIME REDUCTION REDUCCIÓN DE LOS TIEMPOS DE CICLO RÉDUCTION DES TEMPS DE CYCLE La solución “Full Electric”, gracias a la disponibilidad de superposición completa de todos los movimientos, puede permitir una importante reducción de los tiempos de ciclo. CanBel ing-spa-fra META.indd 5 The “Full Electric” solution can provide a significant reduction in cycle time, thanks to the possibility of overlapping all its movements. La solution “Full Electric”, grâce à la possibilité de la superposition complète de tous les mouvements, peut permettre une importante réduction des temps de cycle. 5-03-2009...

Open the catalog to page 5

CANBEL HAS “CANVERTED” THE BUILT IN STANDARDS OF EFFICIENCY, RELIABILITY AND COMFORT CANBEL HA “CANBIADO” LOS ESTÁNDARES DE EFICIENCIA, FIABILIDAD Y CONFORT A BORDO DE LA MÁQUINA CANBEL A “CHANGÉ” LES STANDARDS D’EFFICIENCE, FIABILITÉ ET CONFORT AU BORD DE LA MACHINE CanBel ing-spa-fra META.indd 6 5-03-2009 16:33:49

Open the catalog to page 6

The Canbel series uses a control system based on field bus, thanks to the experience acquired with the Canbio range . The mechanical structure of the base and clamping unit also comes from the Canbio series. However, as regards the latest innovations, this series distinguishes itself for its innovative solutions used on the electromechanical actuators for clamping unit and injection assembly . CanBel ing-spa-fra META.indd 7 La serie Canbel, gracias a la experiencia adquirida con la serie Canbio, dispone de una estructura de la instalación de control basada en el Bus de campo. De la serie Canbio...

Open the catalog to page 7

CanBel ing-spa-fra META.indd 8 5-03-2009 16:33:52

Open the catalog to page 8

CANBEL: ELECTRIC AND DIGITAL, LOW CONSUMPTION AND HIGH RELIABILITY CANBEL: ELÉCTRICA Y DIGITAL, BAJOS CONSUMOS Y ALTA FIABILIDAD CANBEL: ÉLECTRIQUE ET NUMÉRIQUE, BASSES CONSOMMATIONS ET FIABILITÉ ÉLEVÉE The Full Electric IMM project was born in 1998 and finalised in 2001. The advantage of having produced hundreds of IMMs with digital control systems every year managed via a network of electronic integrated devices has allowed Negri Bossi to create a truly innovative electric injection moulding machine compared to the solutions offered by other manufacturers. Canbel is the first and only digitally...

Open the catalog to page 9

CanBel ing-spa-fra META.indd 10 5-03-2009 16:33:56

Open the catalog to page 10

The “Full Electric” solution ensures significant reduction in electric consumption, even compared to the more innovative hydraulic configurations : La solución “full electric” garantiza una reducción significativa de los consumos eléctricos, tambien con referencia a las soluciones hidráulicas más innovadoras: La solution “full electric” garantit une réduction significative des consommations électriques même comparativement aux solutions hydrauliques les plus innovantes : • - 50% compared to conventional hydraulic systems (variable delivery pumps with proportional valves) • - 40% compared to variable...

Open the catalog to page 11

The clamping unit is based on the hydraulic IMM toggles. The necessary changes are made in order to install the electric actuators for the clamp and ejector while platens, tie bars and all other main toggle parts are the same as the hydraulic IMM. Compared to the hydraulic system, the full electric solution improves dynamic performance with reduced opening/ closing times. It also provides perfect speed and actuator force control in the mould safety phase as well as extremely accurate positioning on the settings. The Canbel uses the plasticising unit of the Canbio range. It includes a fastchanging...

Open the catalog to page 12

CANBEL: QUICK AS A FLASH, AND RELIABLE CANBEL: RÁPIDO COMO UN RAYO, Y FIABLE CANBEL: RAPIDE COMME L’ÉCLAIR ET FIABLE IMM in clean working conditions thanks to the absence of hydraulic circuits and to “hidden” lubrication. Operator comfort is maximised by reduced noise levels and machine accessibility. The high capacity on-board PC with a real-time operating system and JAVA platform is another feature offered by IMM. It offers easy and intuitive adjustments (stroke, speed, pressure , temperature, etc.), increased stability, scalability and improved mobility. The IMM control is set-up for network...

Open the catalog to page 15

CANBUS: WITH DIGITAL YOU CAN The CANbus system (Controller Area Network) is a control system originally developed by Bosch for the automobile industry. A close and exclusive collaboration with Bosch has allowed Negri Bossi to develop hydraulic components suitable for this system and create a range of injection machines that are, for the first time ever, entirely controlled by digital means. Thanks to the experience acquired with the hydraulic injection moulding machine , the same principles were applied to the development of the full electric range. The main features and advantages provided are:...
