Videoendoscope G

Product catalog summary

Overview: The Videoendoscope G is a versatile and lightweight industrial inspection device designed for easy handling and precise imaging. It features advanced image processing technology and a variety of interchangeable probes for diverse inspection needs.

Key Features:

Interfaces: Equipped with a protected Micro SD card slot, USB Type-C port, and HDMI connector for easy data transfer and connectivity.
Durable Probe: Probes are made with a tungsten mesh for resistance to mechanical wear and corrosion, suitable for demanding environments.
Battery and Ergonomics: The device uses two 18650 lithium-ion cells, which can be replaced or charged via USB. The ergonomic handle ensures comfortable operation.
Probe Exchange: A new plug-in system allows for quick and easy probe changes, enhancing video quality and durability.
Slip Ring Probe: Available with side-view cameras for unrestricted 360-degree rotation, ideal for inspecting inner diameters of tubes and pipes.
Display: Features a 5-inch touchscreen with HD image processing technology, offering resolutions up to 1280×720 px for clear defect detection.

Image Enhancement:

Highlight Compensation (HLC): Suppresses light source reflections to improve metal detection.
Backlight Compensation (BLC): Enhances image brightness in low-light environments.
Glare Suppression: Two levels of suppression ensure clear views on reflective surfaces.
Low-Light Compensation: Two levels ensure sufficient light for clearer images at greater distances.

Technical Specifications:

Display: 5" IPS LCD touchscreen.
Power Supply: Two rechargeable 18650 batteries with Micro-USB charging.
Standby Time: 6 hours.
White Balance: Automatic/manual.
Zoom: 4x digital zoom.
Image Storage: 32 GB Micro SD Card or PC via USB.
Protection Class: Probe IP67.
Operating Temperature: Hand unit -10°C to +50°C, Probe -20°C to +60°C.
Weight: 750 g, depending on probe.

Probe Versions: Various diameters and working lengths are available, with specific depth of field (DOF) and field of view (FOV) specifications for each probe type.

Contact Information: NDTec AG, Sales Office: Rheinstr. 3, 96052 Bamberg/Germany, Tel.: +49 951 9681 39-0, E-Mail: [email protected], Website: www.ndtec.net

Catalog excerpts

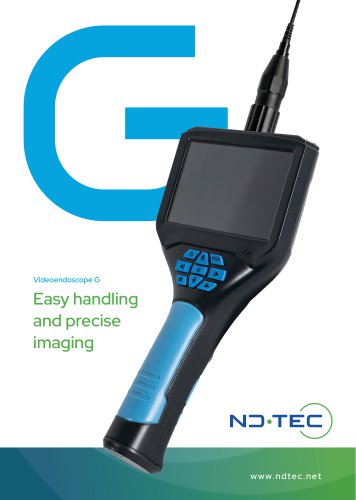

Easy handling and precise imaging

Open the catalog to page 1

SLIP RING PROBE 5-INCH TOUCH DISPLAY The 5-inch touchscreen, equipped with the latest HD image processing technology and offering resolutions of up to 1280×720 px (depending on the probe), delivers razor-sharp images and reveals even the smallest defects with exceptional clarity. Probes with side-view cameras (diameters of 3 mm and 4.5 mm) are available with slip rings for unrestricted 360degree rotation. This rotation capability is ideal for orbital weld inspections of the inner diameters of tubes and pipes. EASY PROBE EXCHANGE Lightweight with outstanding value The Videoendoscope G impresses...

Open the catalog to page 2

Electrical supply Standby time White balance Zoom (digital) Image storage Photo Video Storage Connections Protection class Ambient temperature Weight 5“ IPS LCD with touch screen 2 rechargeable batteries, type: 18650-protected; power supply unit with Micro-USB 32 GB Micro SD Card or PC via USB Micro SD slot, USB-C, HDMI Probe IP67 Hand unit -10°C to +50°C, Probe -20°C to +60°C 750 g, depending on probe PROBE VERSIONS 1 available only with slip ring probe 2 only available in dual mode 3 optional with slip ring probe (all working lengths) Individual configurations upon request Subject to technical...

Open the catalog to page 3
