Overview

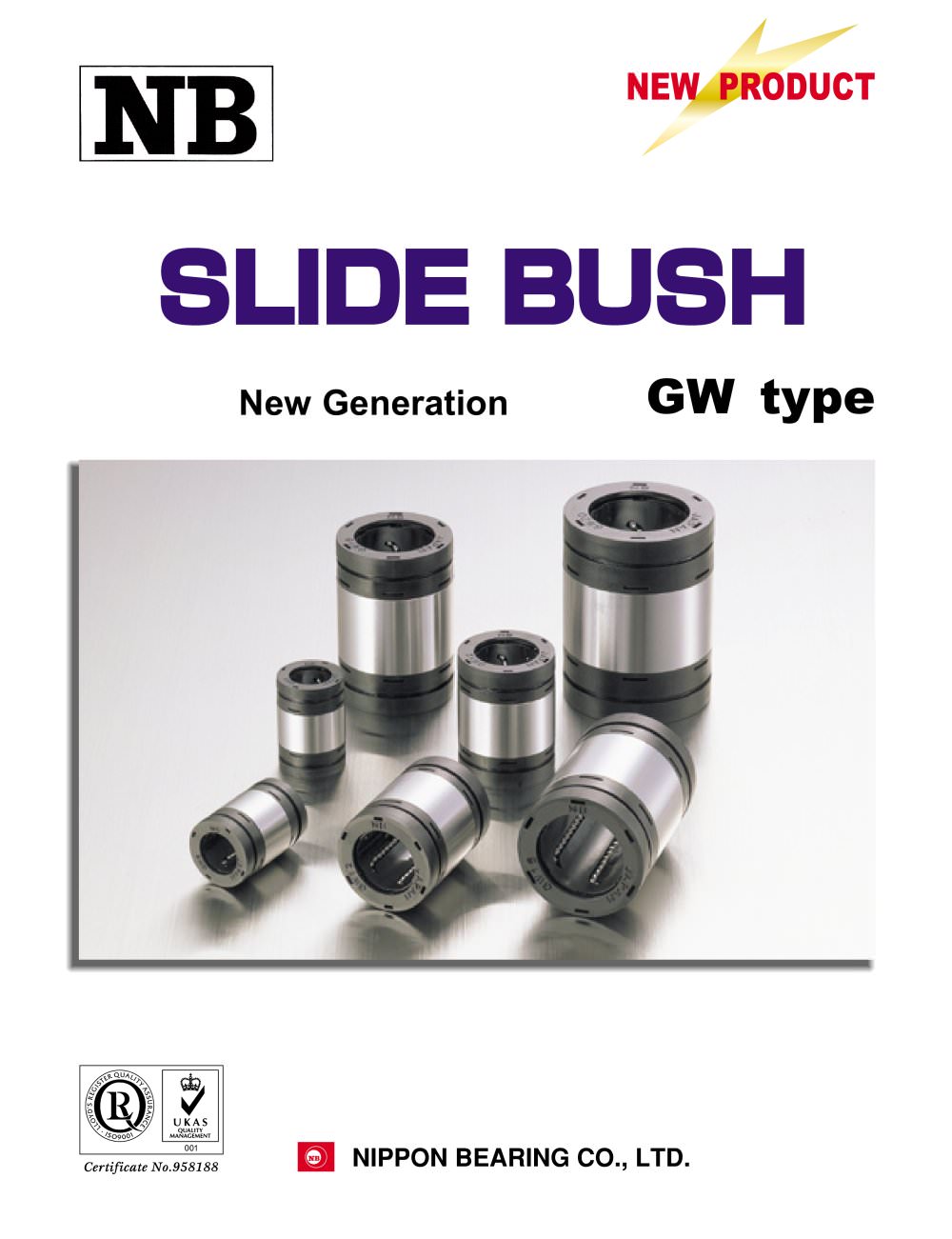

The document provides technical specifications and installation guidelines for the GW Slide Bush, a component designed for reduced weight and noise in mechanical systems. The GW Slide Bush is constructed using a combination of resin and steel, resulting in a 30-50% weight reduction compared to the traditional SW Slide Bush.

Key Features

• Light Weight: Utilizes resin components to achieve significant weight reduction.
• Low Noise Design: The ball return section is made entirely of resin, minimizing operational noise.
• Smooth Movement: Supports high acceleration and deceleration with accurately aligned ball circulation.
• Optional Seal: An integral resin seal is available for enhanced protection.

Structure and Features
The GW Slide Bush consists of an outer cylinder made of hardened steel and resin, a ball retainer, and steel balls. This combination ensures durability while maintaining precision and capacity.

Installation Guidelines

• Use even force when inserting the GW Slide Bush into a housing to avoid damage.
• Maintain parallelism between shafts to ensure smooth movement and prolong component life.

Technical Specifications

• Part Number Structure: Includes details on dimensions, load ratings, and tolerances.
• Recommended Fit: Provides guidance on housing and shaft fits for optimal performance.

Figures and Tables

• Figure 1: Illustrates the structure of the GW Slide Bush.
• Figure 2: Shows the recommended installation method.
• Table 1: Lists recommended fits and tolerances for various components.

Conclusion
The GW Slide Bush is designed to meet demands for low-cost, lightweight, and efficient mechanical components, expanding its application scope in various industries.
