Miniature Slide Table SYBS Type

Miniature Slide Table SYBS Type
6Pages

Catalog excerpts

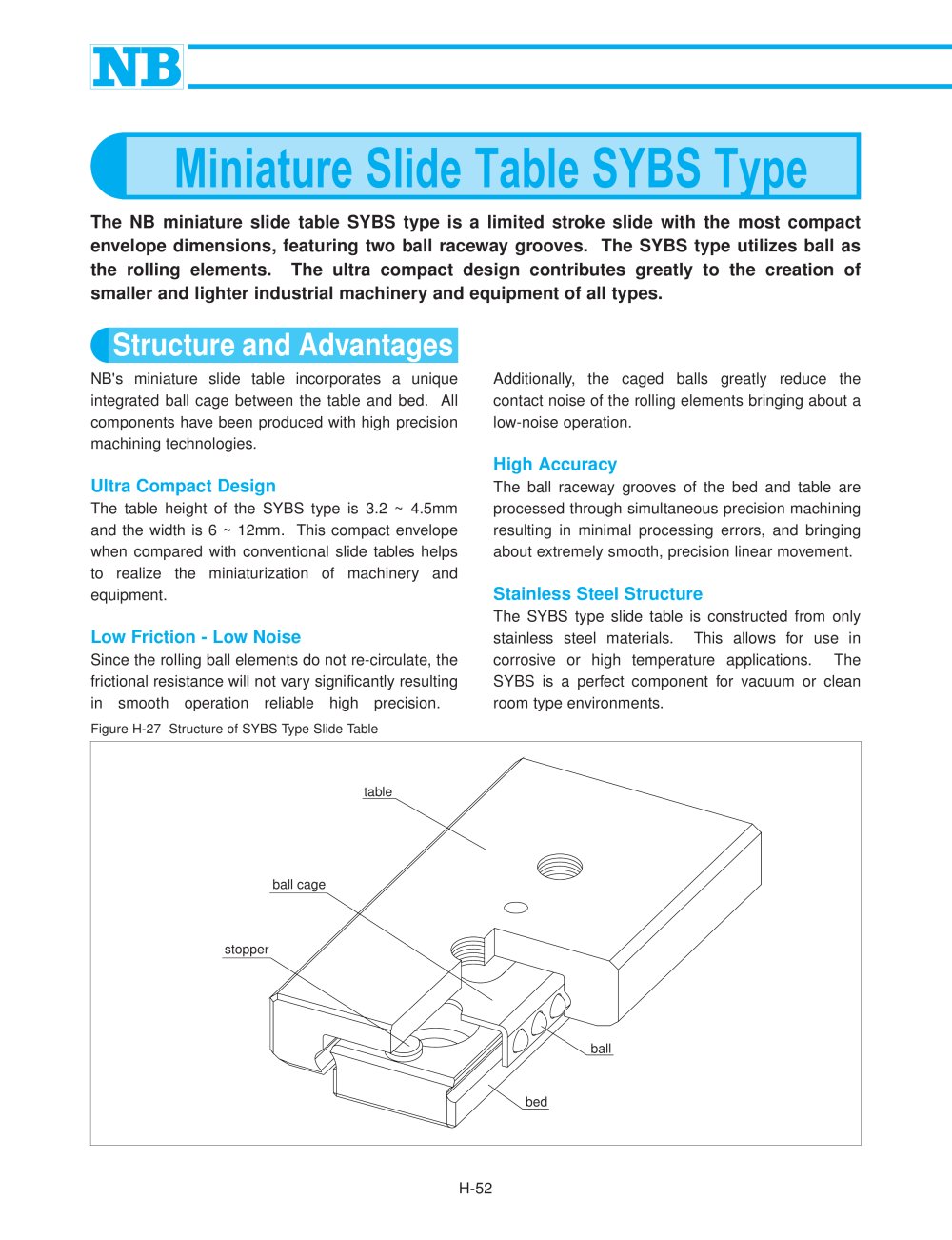

The ball raceway grooves of the bed and table are processed through simultaneous precision machining resulting in minimal processing errors, and bringing about extremely smooth, precision linear movement. The table height of the SYBS type is 3.2 ~ 4.5mm and the width is 6 ~ 12mm. This compact envelope when compared with conventional slide tables helps to realize the miniaturization of machinery and equipment. > The SYBS type slide table is constructed from only stainless steel materials. This allows for use in corrosive or high temperature applications. The SYBS is a perfect component for vacuum or clean room type environments. > Since the rolling ball elements do not re-circulate, the frictional resistance will not vary significantly resulting in smooth operation reliable high precision. Additionally, the caged balls greatly reduce the contact noise of the rolling elements bringing about a low-noise operation. > Figure H-27 Structure of SYBS Type Slide Table tableball cagestopper bedball H-52 NB's miniature slide table incorporates a unique integrated ball cage between the table and bed. All components have been produced with high precision machining technologies. >

Open the catalog to page 1

PRODUCTS Table H-9 Accuracy Unit: mm Figure H-28 Accuracy Measurement Method Item Tolerance and Acceptable Values > NB markCDW Height (H) 0.020 Width (W) 0.025 > SLIDEBUSHSLIDEUNITSTROKEBUSH Deviation from Center of Surface C 0.004 Deviation from Center of Surface D 0.006 > H Table H-10 Variation of Load Rating vs. Direction of Load Figure H-29 Direction of Load Basic Dynamic Rated Load Vertical Direction 1.00 x C > vertical load directionhorizontal load direction Horizontal Direction 1.13 x C Basic StaticRated Load Vertical Direction 1.00 x C > > SLIDEROTARYBUSH Horizontal Direction 1.19 x...

Open the catalog to page 2

Figure H-30 Shape of Mounting Surface -1 Table H-11 Shoulder Height of Mounting Reference Surfaces Unit: mm Part Number Shoulder Height of Table Shoulder Height of Bed h1 h2 SYBS 6 1.0 0.5 SYBS 8 1.2 0.8 SYBS 12 1.5 0.8 > h2h1 Figure H-31 Shape of Mounting Surface -2 Table H-12 Maximum Corner Radius Unit: mm > r1 Mounting Surface of Table Mounting Surface of Bed Part Number r1 r2 SYBS 6 0.1 0.05 > r1 SYBS 8 0.15 0.1 SYBS 12 0.15 0.1 > r2 r2 Table H-13 Recommended Torque Value Unit: N m Figure H-32 Shape of SYBS Bed Part Number Nominal Bolt Recommended Torque SYBS 6 M1 0.03 SYBS 8 M1.6 0.15...

Open the catalog to page 3

PRODUCTS Figure H-33 Mounting Example > SLIDEBUSHSLIDEUNITSTROKEBUSH NB markNB mark mounting screw mounting screw Care should be used to prevent any interference between the ball cage and mounting screw. Table H-14 Mounting Screws (Material: Stainless Steel) Unit: mm Figure H-34 Mounting Screw > SLIDEROTARYBUSH M D H Pitch L > HL (Nominal Bolt) M1 1.8 0.5 0.25 5 M1.4 2.5 0.5 0.3 6 > M D M1.6 2.3 0.5 0.35 4,5,6 M2 3 0.6 0.4 6 > SLIDE WAY/GONIO WAY SLIDE TABLEMINIATURE SLIDEACTUATORSLIDESCREW

Open the catalog to page 4

SLIDEGUIDEBALLSPLINE ROTARYBALLSPL M > Y LP H > - + 0.020 2 H > 2 0.025 + - nXP > 3 I NESTROKEBALLSPLINETOPBALL P > 1 H > 1 W P > 3 R0 P -0.1 0 M M B PRODUCTS S > 1 0.05 S > 2
