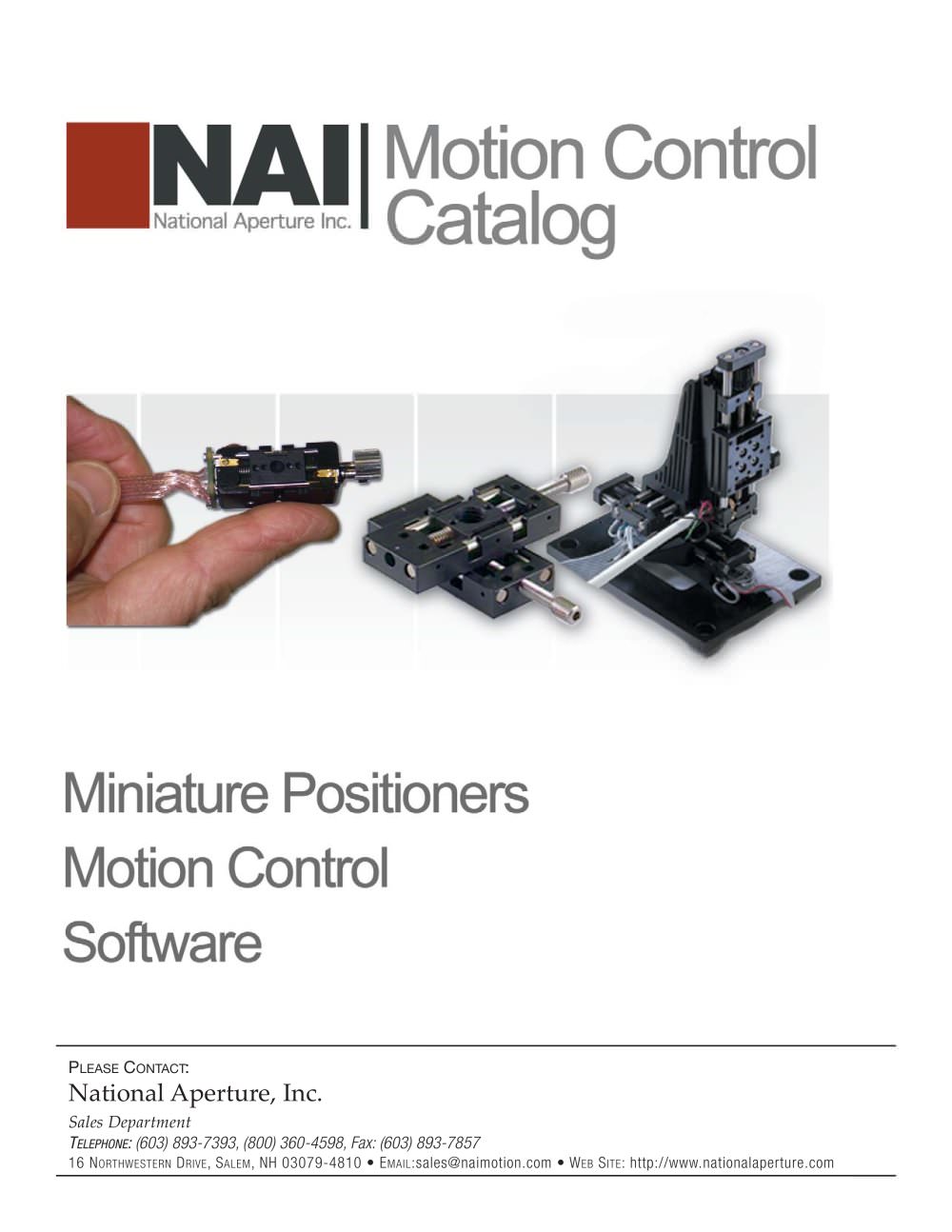

Overview: The document provides comprehensive specifications and descriptions of manual and motorized stages by National Aperture, Inc., used for precision alignment and positioning in optical and mechanical applications. It covers linear and rotary travel stages, goniometer stages, controllers, and their accessories.

Manual Stages: This section details models such as MM-1, MM-1R, MM-2, and MM-3, highlighting specifications like wobble, screw pitch, sensitivity, backlash, load capacity, and dimensions. Accessories include adapter plates and screw kits. The MM-3GF-25/42 Angular Stages offer ±10º travel with fine adjustment and vacuum compatibility.

Motorized Stages: Descriptions include models like MM-1M, MM-3M-ST, and MM-4M-R, with specifications on travel runout, return force, and weight. These stages are designed for precision movement and can be configured in multiple axes. The MM-4M-F Folded Motorized MicroMiniTM Stages, for example, offer repeatability of ±0.5µm and a maximum speed of 1.65mm/second.

Controllers: Various controllers such as the MC-5B Manual Single Axis Controller and the MC-4SA Multi-Axis Controller are described, essential for operating the stages with enhanced functionality.

Specifications: Detailed specification sheets provide critical dimensions and performance parameters. Users are advised to verify these specifications with technical support for accuracy.

Key Features: The stages are noted for precision, micro-miniature design, vacuum compatibility, and metric compatibility. Modularity and adaptability allow for various configurations and combinations.

Motor and Encoder Specifications: The document includes detailed specifications for motors and encoders, such as the MTR-10-10E-HT MicroMiniTM Motor, with mechanical and electrical characteristics, including supply voltage, power output, and encoder resolution.

Procedures and Calculations: Travel rate and encoder resolution calculations are provided, detailing how to compute output shaft RPM and distance per minute based on motor RPM and gearhead ratio.

Standards and Recommendations: Emphasizes verifying critical dimensions with technical support and notes that specifications are subject to change without notice.

Anti-Backlash Option: An anti-backlash option is available for certain stages, reducing backlash and providing benefits like lubrication retention.

Conclusion: National Aperture, Inc. offers a range of precision motorized stages and controllers suitable for various industrial applications, emphasizing ease of integration, precision control, and flexibility in configuration.
