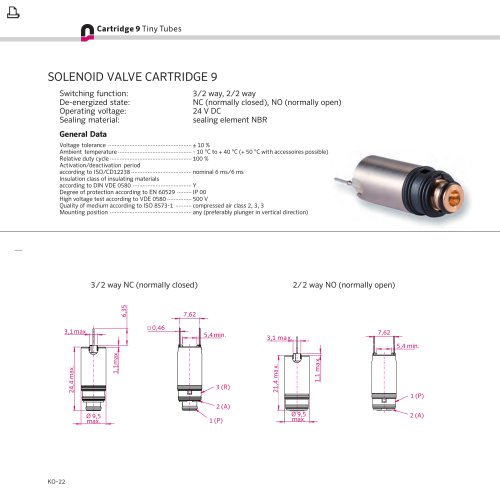

SOLENOID VALVE CARTRIDGE 9

Product catalog summary

Overview: The document provides technical specifications and data for the KO–22 Solenoid Valve Cartridge 9, detailing its switching functions, operating conditions, and technical parameters.

Specifications:

Switching Function: The valve operates as a 3/2 way or 2/2 way, with options for normally closed (NC) or normally open (NO) states.
Operating Voltage: 24 V DC with a voltage tolerance of ±10%.
Sealing Material: NBR sealing element.

General Data:

Ambient Temperature: Ranges from -10 °C to +40 °C, extendable to +50 °C with accessories.
Relative Duty Cycle: 100%.
Activation/Deactivation Period: Nominal 6 ms each, as per ISO/CD12238.
Insulation Class: Class Y according to DIN VDE 0580.
Degree of Protection: IP 00 as per EN 60529.
High Voltage Test: 500 V according to VDE 0580.
Medium Quality: Compressed air class 2, 3, 3 according to ISO 8573-1.
Mounting Position: Any, preferably with the plunger in a vertical direction.

Technical Data for Standard Versions:

Part No.	Switching Function	Nominal Orifice [mm]	Pressure [bar]	Flow Rate [l/min]	Rated Power [W]
120-070-0001	3/2 way NC	0.5	1 to 5	10	1.0
120-070-0002	2/2 way NO	0.5	2.8 to 4.6	17	1.0

Additional Options Available on Request:

Electronic protective circuit.
PWM power reduction.
Increased ambient temperature tolerance.
Increased voltage change tolerance.
Modified pressure tolerances.
Individual voltages.

Catalog excerpts

SOLENOID VALVE CARTRIDGE 9 Switching function: De-energized state: Operating voltage: Sealing material: 3/2 way, 2/2 way NC (normally closed), NO (normally open) 24 V DC sealing element NBR General Data Voltage tolerance ··················································· ± 10 % Ambient temperature ············································· - 10 °C to + 40 °C (+ 50 °C with accessoires possible) Relative duty cycle ·················································· 100 % Activation/deactivation period according to ISO/CD12238 ····································· nominal 6 ms/6 ms Insulation class of insulating materials according to DIN VDE 0580 ···································· Y Degree of protection according to EN 60529 ········· IP 00 High voltage test according to VDE 0580 ··············· 500 V Quality of medium

Open the catalog to page 1

Cartridge 9 Tiny TubesTechnical Data Standard Versions Part No. Switching function Nominal Orifice [mm] Pressure [bar] Flow Rate [l/min] Rated Power [W] Available on request (amongst others): - electronic protective circuit; - increased ambient temperature; - increased voltage change; - modified pressure tolerances; - individual voltages.
