Nash

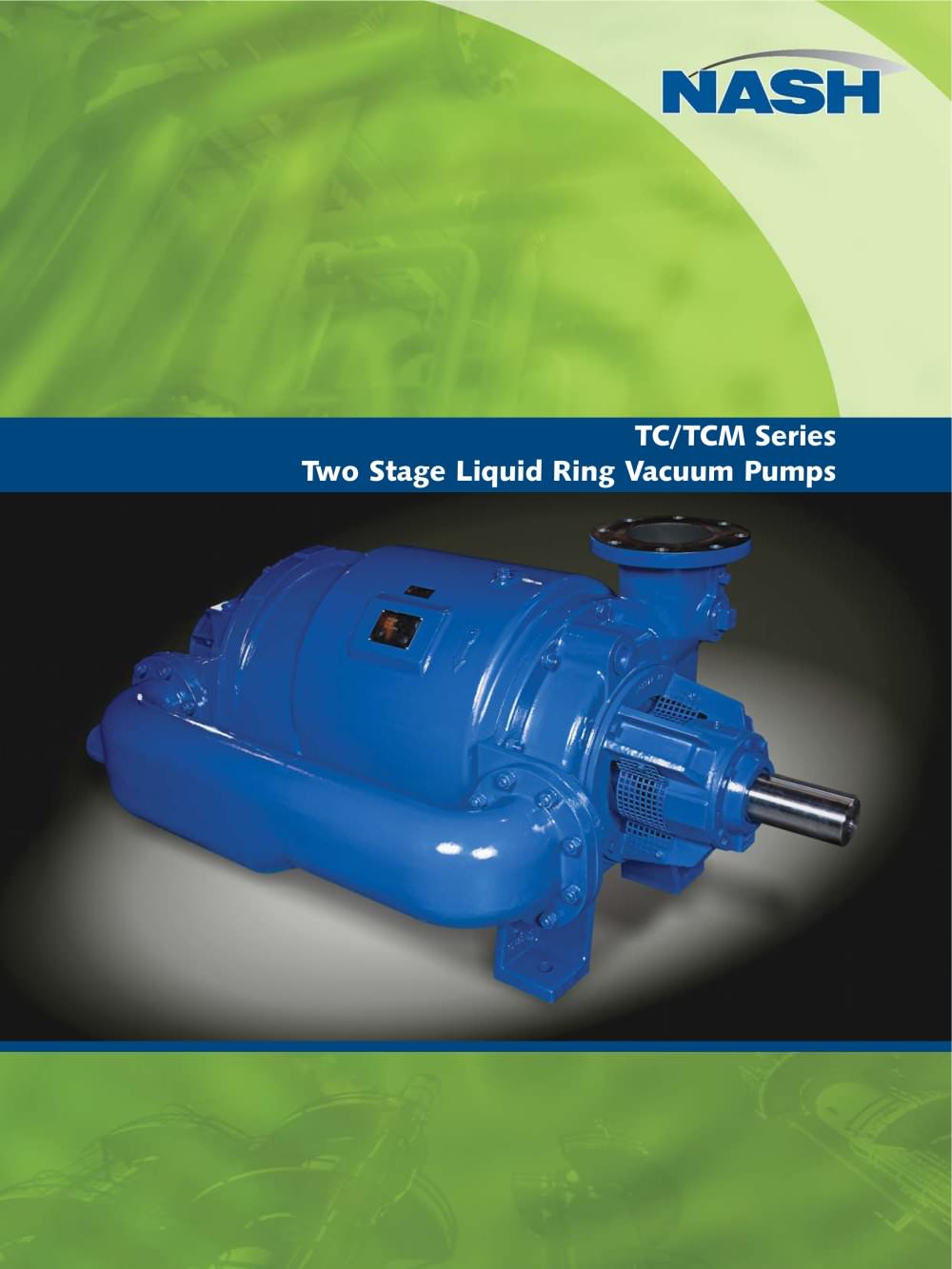

NASH TC/TCM series - Two Stage Liquid Ring Vacuum Pumps

NASH TC/TCM series - Two Stage Liquid Ring Vacuum Pumps

Product catalog summary

Overview: The NASH TC/TCM Series Two Stage Liquid Ring Vacuum Pumps, produced by Gardner Denver Nash, are renowned for their durability and reliability in harsh industrial environments. These pumps are manufactured to ISO 9001:2000 standards and are ATEX compliant, ensuring high quality and safety.

Applications: Designed for the chemical, petrochemical, and power industries, these pumps are suitable for high vacuum applications. They operate efficiently at low suction pressure levels, offering operational savings by reducing the number of stages in hybrid systems.

Features and Benefits:

Patented air/water separation design for improved efficiency.
Integral two-stage impeller for high reliability and vacuum attainment without additional components.
Shrouded rotor blades for strength and reliability.
Removable bearing bracket for easier maintenance.
O-ring and gasket sealing options for optimal sealing.
ATEX compliance for meeting industry standards.
100% performance tested for trouble-free start-up and operation.
Two-year warranty backed by over 100 years of experience.

Specifications:

Vacuum range: to 27 mbar abs. (0.8 in HgA).
Mechanical seals: Single, double, and cartridge options.
Hydrotest pressure: 6 bar abs. (75 psig) for ductile iron pumps, 12 bar abs. (150 psig) for stainless steel pumps.
Capacity: 170 to 3,740 m³/hr (100 to 2,200 CFM).
Construction materials: Ductile iron, stainless steel.

Performance and Dimensions: The document provides detailed dimensions and performance metrics for various models (TC 11, TC 10, TC 9, etc.), highlighting their suction capacity and flange sizes.

Additional Products: Gardner Denver Nash also offers other liquid ring vacuum pumps and compressors, such as the 2BE4/P2620, Vectra XL, GL, and SX series, each with specific features and capacities tailored to different industrial needs.

Global Service Network: Gardner Denver Nash provides extensive service and support through a global network of service centers located in countries including Australia, Brazil, China, Germany, and the USA.
