Overview
Gardner Denver Nash specializes in high-quality liquid ring vacuum pumps and compressors designed for demanding applications. These systems are known for their reliability, low maintenance, and efficiency in wet environments.

Product Specifications

NASH 2BV Vacuum Pumps: Compact design, uses up to 50% less water, available in monoblock and pedestal designs, capacity of 7 to 595 m³/h, vacuum to 33 mbar abs.
NASH 2BE3 Vacuum Pumps: Large pumps with corrosion resistance, self-recirculating seal water, capacity of 6,800 to 35,000 m³/h, vacuum to 200 mbar abs.
NASH Vectra Vacuum Pumps and Compressors: Designed for high back pressure and liquid carryover, capacity of 195 to 4,860 m³/h, vacuum to 31 mbar abs.
NASH TC/TCM Two Stage Vacuum Pumps: Improved performance at vacuum levels down to 27 mbar abs, capacity of 170 to 3,740 m³/h.
NASH P2620 Vacuum Pumps: Large pumps with superior corrosion resistance, capacity of 6,800 to 39,000 m³/h.
GARO Compressors: Rugged compressors for toxic, explosive, and corrosive gases, capacity of 100 to 3,400 m³/h, pressure to 15 bar abs.

Engineered Systems

NASH Standardized Systems: Pre-engineered packages for general industry, available in iron and stainless steel.
NASH Engineered to Order Systems: Custom-designed systems to meet specific process needs, easy integration into process automation.

Certifications and Services

Many models available with ATEX certifications.
ISO 9001 certifications across various facilities.
Extensive network of service centers and field technicians for maintenance and support.

Industry Applications

Chemical Process Industry: Systems maximize output and efficiency while minimizing maintenance and pollution.
Pulp & Paper Industry: Known for engineered vacuum systems and water removal for paper machines.
Power Industry: Efficient air removal systems for steam cycle power generation plants.

Catalog excerpts

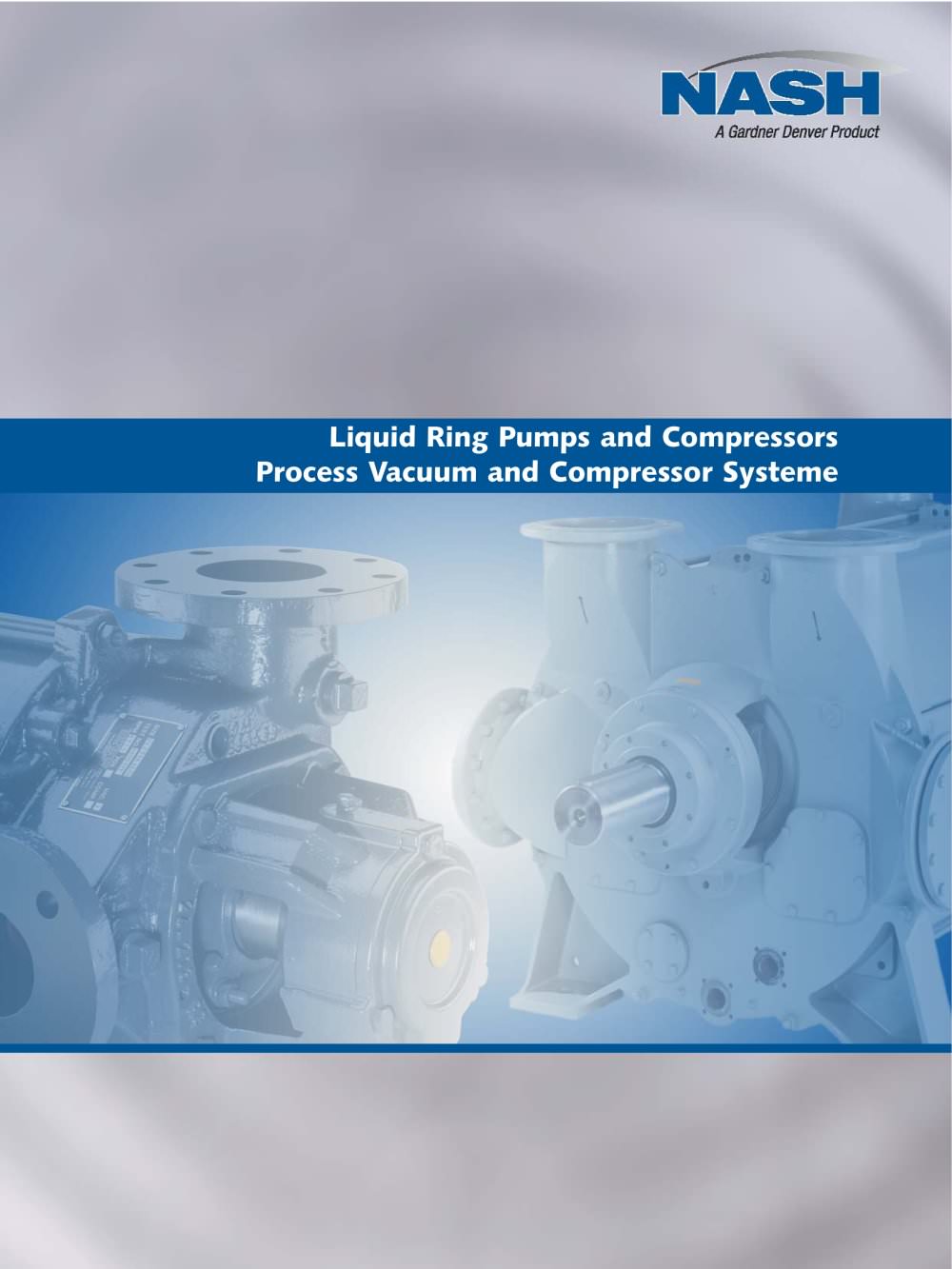

Liquid Ring Pumps and CompressorsProcess Vacuum and Compressor Systeme >

Open the catalog to page 1

Gardner Denver Nash provides reliable, high quality liquid ring vacuum pumps with the features and performance necessaryfor all demanding applications. NASH Liquid Ring Vacuum Pumps are designed to operate safely, cleanly and continuously in wet environments. They require minimal care and are known for extremely low maintenance. NASH Liquid Ring Vacuum Pumps provide years of dependable service due to less required parts. > Compact liquid ring vacuum pumps built for serious cost savings Use up to 50 percent less water than other liquid ring pumps Monoblock and pedestal designs available Capacity...

Open the catalog to page 2

Highly rugged and reliable compressors that can handle highly toxic, explosive and corrosive gasesSpecifically developed for applications such as flare-gas, chlorine and Vinyl Chlorine Monomer (VCM) recoveryCapacity of 100 to 3,400 m/h with pressure to 15 bar abs Gardner Denver Nash provides reliable, high quality liquid ring compressors with the features and performance necessaryfor all demanding applications. NASH Liquid Ring Compressors require minimal care and are known for extremely low maintenance. They reduce power and operating costs by handling higher capacities with less energy/power....

Open the catalog to page 3
