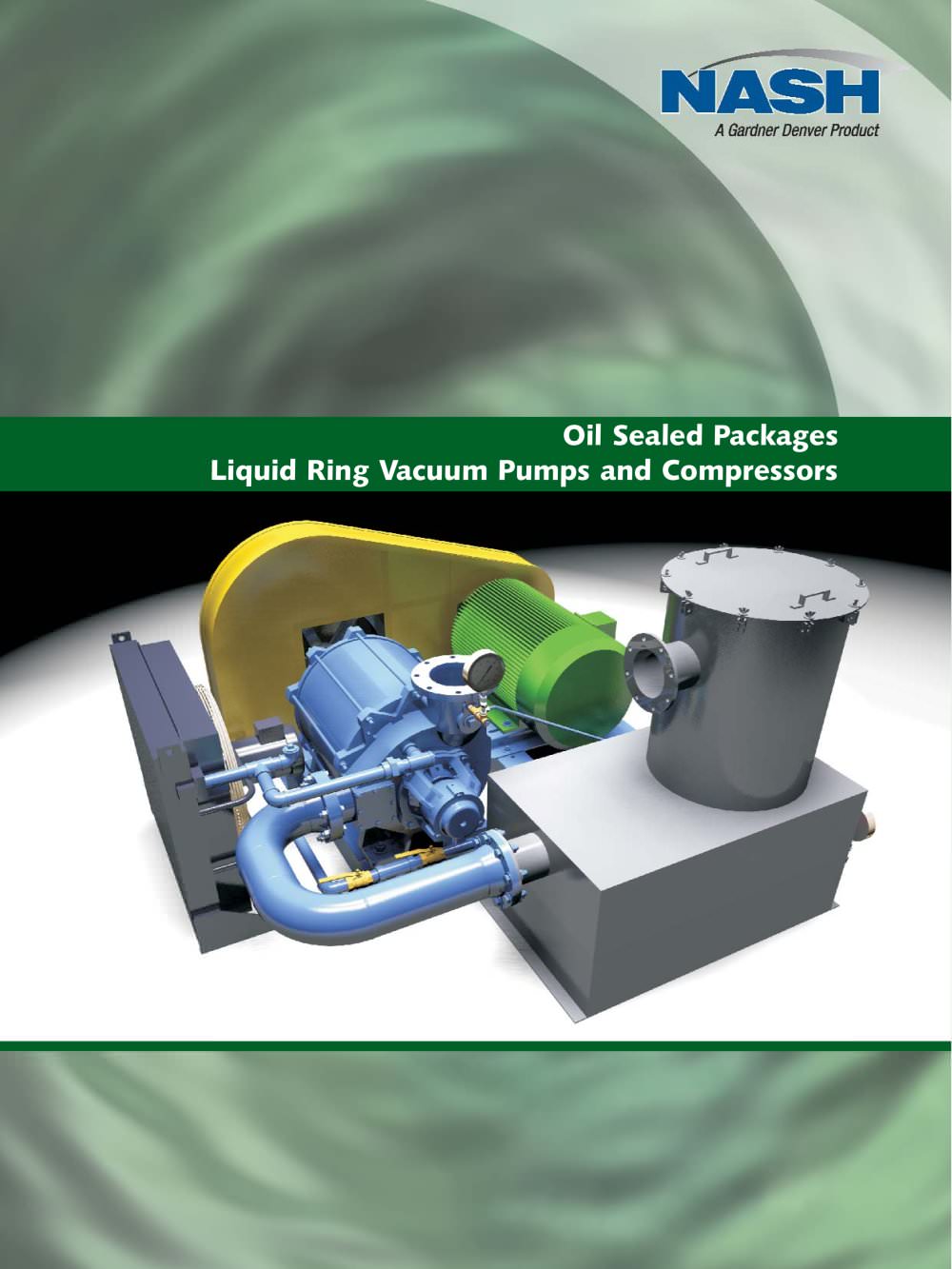

Oil Sealed PackagesLiquid Ring Vacuum Pumps and Compressors >
Open the catalog to page 1Each self-contained system is complete with all of thecomponents for your basic operating needs. We also offer awide array of optional controls including alarm switches, control panels and completely explosion-proof packages.We can customize the system to meet your specific needs. At the heart of the oil sealed system is a durable NASH liquidring pump, known to provide many years of reliable service,even in the most demanding processes. The pump has only one moving part and no tight clearances or metal-to-metalcontact. This allows the oil sealed liquid ring package toprovide the benefits of...
Open the catalog to page 2Direct Drive (in/mm) V-Belt Drive (in/mm) > Pump length width height length width height Vectra XL pumps are designed for bothgeneral and chemical process industryapplications. Standard pump construction is ductile iron. Keyelements of the design are theimproved cone angles, which decrease the size of the pump, and NASH patented Gas Scavenging Technology,which dramatically improves pumpperformance at high vacuum levels. XL 35/45 651651 601524 501270 761930 561422 501270 XL 60/80 751905 631600 481219 761930 621575 551397 XL 100/130 802032 621575 501270 822083 812057 501270 XL 150 862184...
Open the catalog to page 3Pump length(in/mm) width(in/mm) height(in/mm) > 2AV2 110 661676 22559 621575 The 2AV2 systems are easily expandable to provide you with amultiplex central vacuum system, or to provide future expansionto meet your growing needs. 2AV2 111 721829 22559 621575 2AV2 121 781981 24610 761930 2AV2 131 842134 24610 761930 All dimensions are approximate Basic specifications Vacuum range 0-29 in Hg vac/ to 33 mbar abs. Mechanical seals Single Construction material Cast iron >
Open the catalog to page 4Installation is a snap with the self-contained Gardner Denver Nash oil sealed package. Simply connect the system to your process and provide an electrical connection and you are ready to go. No additional utilities or sound attenuating devices are required. If you thought you couldn't afford the water costs associated with operating a liquid ring pumpthink again. One of the wonderful features of the liquid ring pump is that it can be operated with a multitude of differentfluids. A self-contained oil sealed system has a number of benefits over a traditional water sealed system.ŕIt eliminates...
