Nash - 2BV-Packages/Standard systems

Nash - 2BV-Packages/Standard systems

Product catalog summary

Overview: The document provides detailed information on Gardner Denver Nash's standardized vacuum systems, specifically focusing on package units with 2BV pumps. These systems are pre-engineered, plug-and-play solutions available in iron and stainless steel, designed for quick delivery.

Specifications: The package units are available in two main configurations: Once-Through Units and Recirculating Seal Units. The Once-Through Units are suitable where contamination is not a concern and seal liquid is abundant, offering simplicity and low initial cost. Recirculating Seal Units are ideal for hazardous or toxic environments, providing benefits like low water consumption and process gas recovery.

Design and Options: The document lists various models with specific dimensions and configurations. It includes options for enhanced designs, such as additional valves and flow meters, to cater to different operational needs.

Performance: The 2BV compact liquid ring vacuum pumps are highlighted for their cost efficiency, using up to 50% less water than other pumps. They offer capacities ranging from 7 to 595 m³/h with vacuum levels down to 33 mbar abs.

Additional Products: Other products mentioned include the TC/TCM, Vectra, and 2BE3/P2620 compressors, designed for handling toxic, explosive, and corrosive gases, with capacities up to 39,000 m³/h.

Contact Information: The document provides contact details for Gardner Denver Nash's offices in the USA and Germany, emphasizing their extensive experience in liquid ring pumps and vacuum systems.

Catalog excerpts

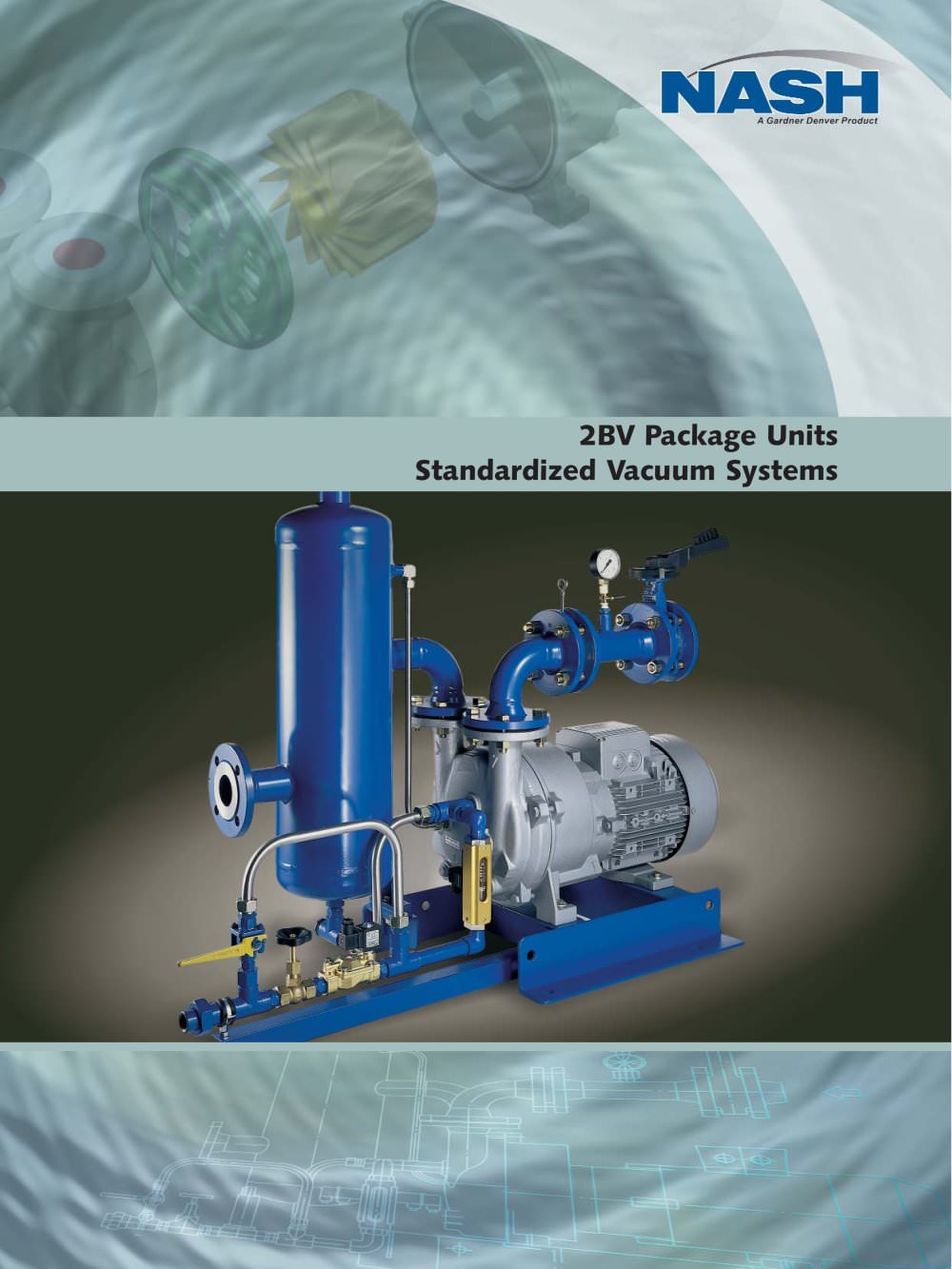

2BVPackage UnitsStandardized Vacuum Systems >

Open the catalog to page 1

When your requirements call for a packaged system,Gardner Denver Nash has pre-engineered, assembled and piped NASH units that provide all the associated compo-nents for your application. Once-through and fully recir-culated direct-driven systems are available in various sizes and in iron or stainless steel.Once-through packaged systems are used wherecontamination is not an issue and the supply of seal liquidis plentiful. The benefits of these systems, both Once-Through-Unit and Recirculating Seal Unit are their simpli- city and their lowest initial cost.If liquids and gases are hazardous or toxic...

Open the catalog to page 2
