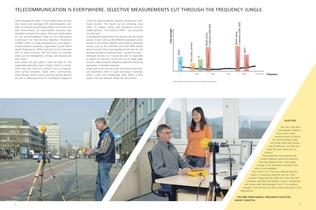

Total coverage with radio, TV and mobile phone servicesalso means total coverage with electromagnetic radi- ation. To prevent any damaging effects on humans and their environment, all industrialized countries have specified immission limit values. These are mostly based on the recommendations made by the International Commission for Non-Ionizing Radiation Protection (ICNIRP), which is a body recognized as a non-govern- mental radiation protection organization by the World Health Organization (WHO) and the Council of Europe (EU). In many countries, the limit values for sensitive areas such as...

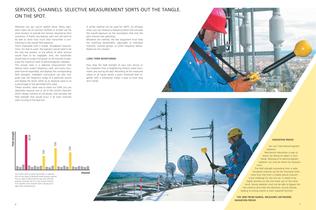

LONG TERM MONITORING How does the field strength of your own service or the irradiation from a neighboring medium wave trans-mitter vary during the day? Recording all the measured values or all values above a given threshold level to- gether with a timestamp makes it easy to trace longterm trends. > Wherever you are, youre seldom alone. Many oper-ators make use of common facilities or at least use thesame location to provide the services required by their customers. If thereҒs any dispute, each one will want to be able to show how much their transmitter is con- tributing to the overall field...

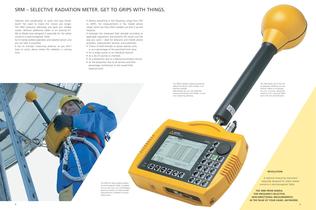

Selective and complicated, or quick and easy broad-band? No need to make this choice any longer. The SRM measures selectively and gives you reliable results. Without additional cables or an external PC. We at Narda have designed it especially for the safety concerns in electromagnetic fields. So it֒s handy, battery operated, and radiation proof, and you can take it anywhere. It has an isotropic measuring antenna, so you dont have to worry about where the radiation is coming from. It detects everything in the frequency range from VHFto UMTS. For measurements in the mobile phone range, which are...

We havent re-invented the wheel. We just make use of itsbest features. Just turn the control to scan through resolutionand frequency settings instead of entering rows of figures.Scan through lists of results instead of fiddling with a cursor. ThereҒs no faster way to get results. Frequency r a nge of ba sic unit 100 kHz to 3 GHz Resolution ba ndwidths (RBW) 1 kHz to 5 MHz Swee p time for one s p ectrum 50 ms to 1 s,depending on frequency span,measurement in one axis direction Memory size Holds up to 9999 data sets O p er a ting time Typically 4 hours from fully charged batteries Weight of ba...

If you need to determine the field strength due to individual wireless services, service providers, or even a single channel, the frequency resolution must be fineenough for the job. The SRM lets you analyze eachchannel separately in the mobile phone or DECT band without any trouble. If you want to know the total power level in the frequency band, you dont have tomake a new measurement. The integration functionwill give you the value. Pagers switch on and off without warning, communi-cations channels are used sporadically, so the frequency spectrum is constantly changing. In ғTime Analysismode,...

Antenn a ty p e Three axis E-field antenna (isotropic), passive dipole arraySingle axis E-field antenna, passive dipoleSingle axis E-field antenna, active dipoleThree axis H-field antenna (isotropic), active coil arraySingle axis H-field antenna, active coil > Frequency r a nge 75 MHz to 3 GHz27 MHz to 3 GHz100 kHz to 300 MHz100 kHz to 250 MHz100 kHz to 300 MHzFast,non-directional near-field magnetic field measurements on radio / TV transmitters and industrial plant Recommended Fast,non-directional measurements, e.g.at mobile phone frequenciesPrecision measure-ments at VHF and TV frequenciesPrecision...

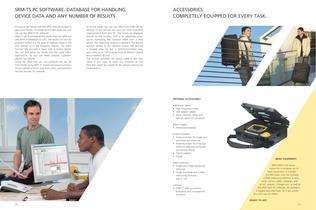

Its easy to get results with the SRM. And just as easy toget a lot of results. To handle all this data easily, too, youcan use the SRM-TS PC software.SRM-TS can download all the results from the SRM and save them in databases on a PC. The results can then beanalyzed further, e.g. for peak or average values in the time domain or in the frequency domain. The zoomfunction lets you take a closer look at certain details.You can also paste the results into the usual Officeapplications, so you can easily prepare customer- specific test reports.Going the other way, you can configure the test setfrom...

LOW-FREQUENCY TEST EQUIPMENT BROADBAND HIGH-FREQUENCY TEST EQUIPMENT SELECTIVE HIGH-FREQUENCY TEST EQUIPMENT PERSONAL MONITORS AREA MONITORING STATIONS > Test equipment for electric and magnetic fields from DC up to several hundredkilohertz. For power utility companies, electric railroads, industry. Standard- compliant evaluation, e.g. conforming to the EN 50366 standard for domestic appliances. NBM-500 the new series that covers practically every application between 100 kHz and 60 GHz. SRM-3000 ֖ the tester that selectively detects and measures every source in the range from 100 kHz to 3 GHz....
