Small Sizes Cut to Length Line

Small Sizes Cut to Length Line
1 / 1 PageView full catalog

Small Sizes Cut to Length Line

Product catalog summary
Specifications:
  • Processing Material: The machine can process cold-rolled steel coil, galvanized coil, color-coated coil, and stainless steel coil.
  • Processing Sheet Thickness: The thickness range for processing sheets is 0.2mm to 2.3mm for both models.
  • Processing Sheet Width: Model 650 can handle a maximum width of 650mm, while Model 800 can handle up to 800mm.
  • Coil Weight Permitted: Model 650 allows a maximum coil weight of 6 tons, whereas Model 800 permits up to 8 tons.
  • Cutting Accuracy: Both models offer a cutting accuracy of ±0.3mm.
  • Line Speed: Model 650 has a maximum line speed of 100m/min, and Model 800 can reach up to 120m/min.
Company Information:
See more

Catalog excerpts

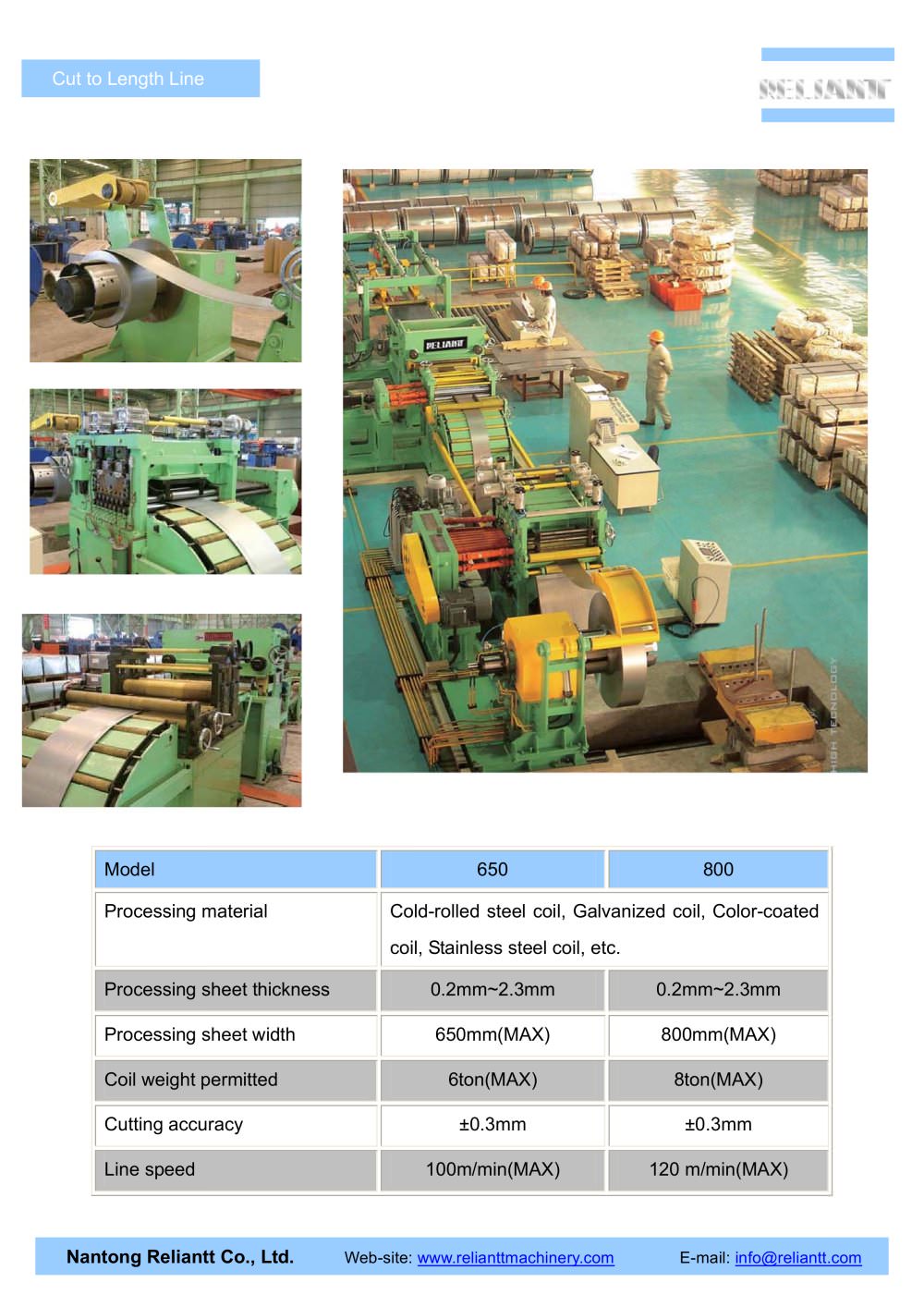

Small Sizes Cut to Length Line-1

Model 650 800 Processing material Cold-rolled steel coil, Galvanized coil, Color-coated coil, Stainless steel coil, etc. Processing sheet thickness 0.2mm~2.3mm 0.2mm~2.3mm Processing sheet width 650mm(MAX) 800mm(MAX) Coil weight permitted 6ton(MAX) 8ton(MAX) Cutting accuracy ±0.3mm ±0.3mm Line speed 100m/min(MAX) 120 m/min(MAX) Cut to Length Line Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: [email protected]

 Open the catalog to page 1
