Small Sized Flying Shear Cut to Length Line

Small Sized Flying Shear Cut to Length Line
1 / 2 PagesView full catalog

Small Sized Flying Shear Cut to Length Line

Product catalog summary
Specifications:
  • Processing Material: Cold-rolled steel coil, Galvanized coil, Color-coated coil, Stainless steel coil, etc.
  • Processing Sheet Thickness: Model 800: 0.3mm~2.0mm; Model 800: 0.5mm~3.5mm
  • Processing Sheet Width: 800mm (MAX)
  • Coil Weight Permitted: Model 800: 8ton (MAX); Model 800: 10ton (MAX)
  • Cutting Accuracy: Cutting ±0.3mm, Acc/decelerate ±0.4mm
  • Line Speed: 70m/min-100m/min
Features:
  • High cutting accuracy and precision due to machine solidity
  • High quality on flatness and cutting
  • High precise cut to length control
  • High efficiency for production
  • Delightful man-machine interface
Contact Information:
See more

Catalog excerpts

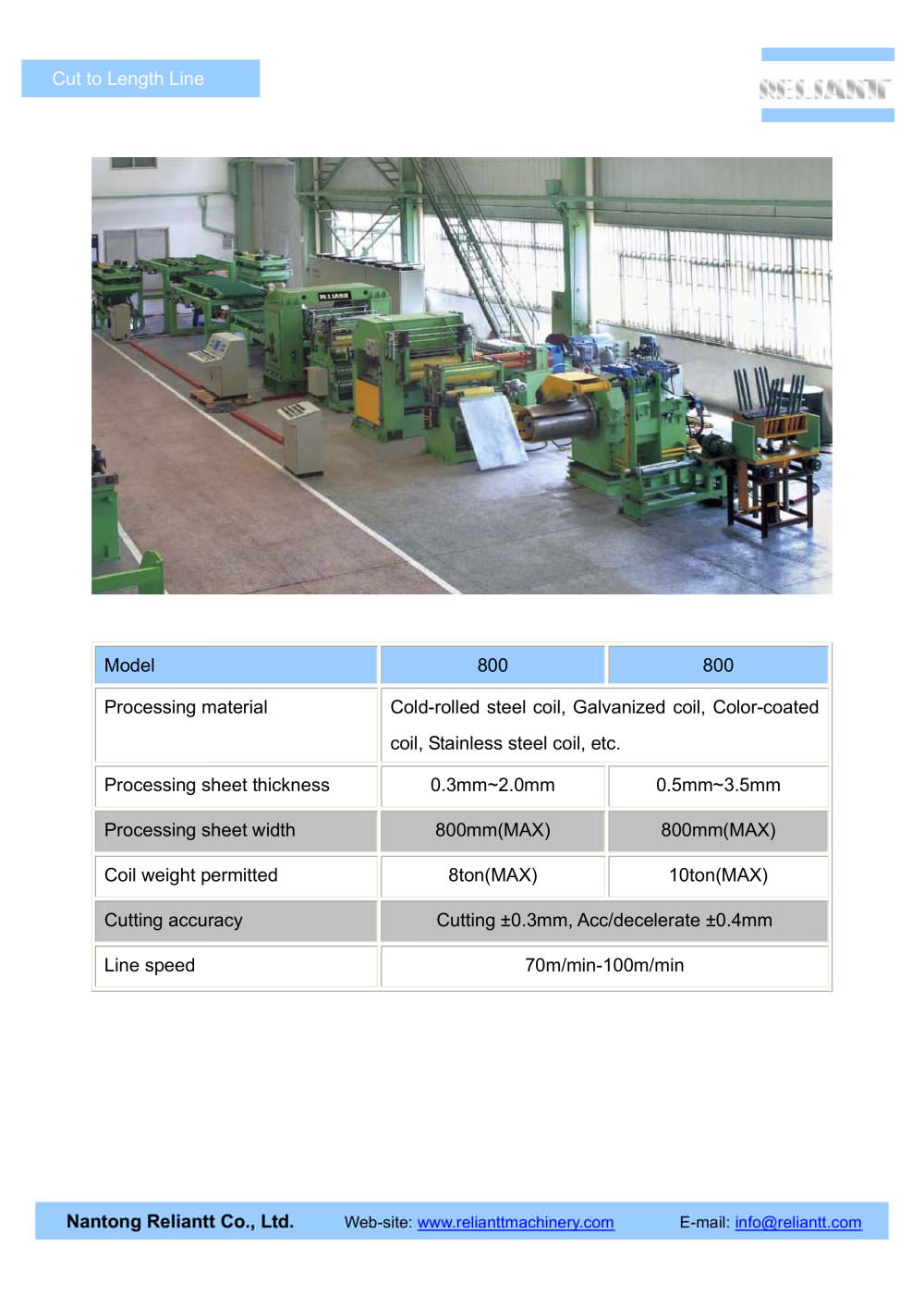

Small Sized Flying Shear Cut to Length Line-1

Model 800 800 Processing material Cold-rolled steel coil, Galvanized coil, Color-coated coil, Stainless steel coil, etc. Processing sheet thickness 0.3mm~2.0mm 0.5mm~3.5mm Processing sheet width 800mm(MAX) 800mm(MAX) Coil weight permitted 8ton(MAX) 10ton(MAX) Cutting accuracy Cutting ±0.3mm, Acc/decelerate ±0.4mm Line speed 70m/min-100m/min Cut to Length Line Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: [email protected]

 Open the catalog to page 1
Small Sized Flying Shear Cut to Length Line-2

ž Cutting accuracy and precision thanks to the machine solidity ž High quality on flatness ž High precise cut to length control ž High quality on cutting ž High efficiency for production ž Delightful man-machine interface Cut to Length Line Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: [email protected]

 Open the catalog to page 2
