Rotary Flying Shear Cut to Length Line

Rotary Flying Shear Cut to Length Line
1 / 2 PagesView full catalog

Rotary Flying Shear Cut to Length Line

Product catalog summary
Specifications:
  • Models: 1250, 1600, 1850
  • Processing Material: Cold-rolled steel coil, Galvanized coil, Color-coated coil, Stainless steel coil, etc.
  • Processing Sheet Thickness: 0.3mm-2.3mm for Model 1250, 0.5mm-3.0mm for Models 1600 and 1850
  • Processing Sheet Width: 1250mm (MAX) for Model 1250, 1600mm (MAX) for Model 1600, 1850mm (MAX) for Model 1850
  • Coil Weight Permitted: 15 tons (MAX) for Model 1250, 20 tons (MAX) for Models 1600 and 1850
  • Cutting Accuracy: Cutting ±0.3mm, Acceleration/Deceleration ±0.5mm
  • Line Speed: 90m/min-120m/min
Features:
  • High cutting accuracy and precision due to machine solidity
  • High quality on flatness and cutting
  • Precise cut to length control
  • High production efficiency
  • User-friendly man-machine interface
Contact Information:
See more

Catalog excerpts

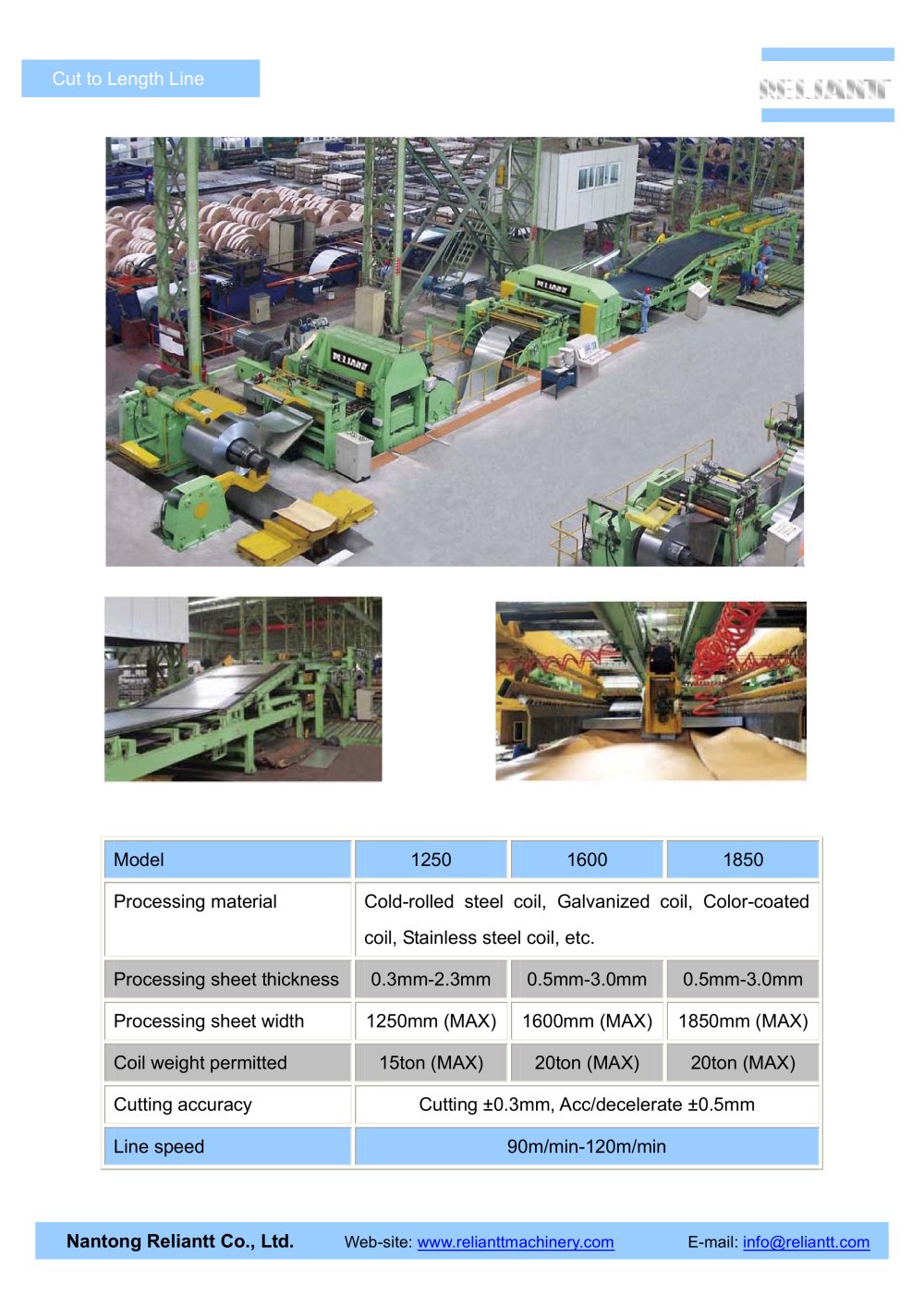

Rotary Flying Shear Cut to Length Line-1

Model 1250 1600 1850 Processing material Cold-rolled steel coil, Galvanized coil, Color-coated coil, Stainless steel coil, etc. Processing sheet thickness 0.3mm-2.3mm 0.5mm-3.0mm 0.5mm-3.0mm Processing sheet width 1250mm (MAX) 1600mm (MAX) 1850mm (MAX) Coil weight permitted 15ton (MAX) 20ton (MAX) 20ton (MAX) Cutting accuracy Cutting ±0.3mm, Acc/decelerate ±0.5mm Line speed 90m/min-120m/min Cut to Length Line Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: [email protected]

 Open the catalog to page 1
Rotary Flying Shear Cut to Length Line-2

ž Cutting accuracy and precision thanks to the machine solidity ž High quality on flatness ž High precise cut to length control ž High quality on cutting ž High efficiency for production ž Delightful man-machine interface Cut to Length Line Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: [email protected]

 Open the catalog to page 2
