CNC Turret Punch
10Pages

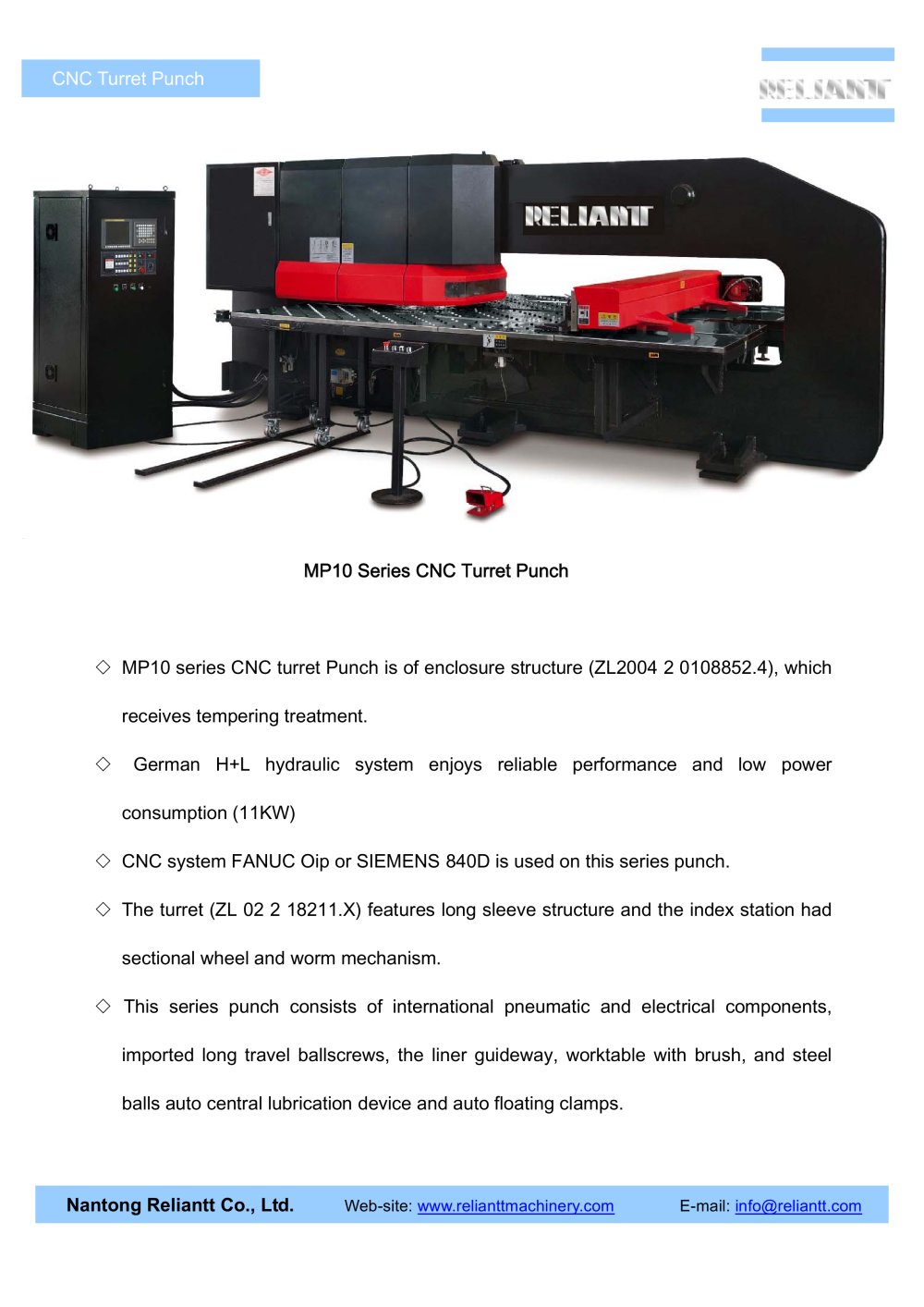

MP10 Series CNC Turret Punch ž MP10 series CNC turret Punch is of enclosure structure (ZL2004 2 0108852.4), which receives tempering treatment. ž German H+L hydraulic system enjoys reliable performance and low power consumption (11KW) ž CNC system FANUC Oip or SIEMENS 840D is used on this series punch. ž The turret (ZL 02 2 18211.X) features long sleeve structure and the index station had sectional wheel and worm mechanism. ž This series punch consists of international pneumatic and electrical components, imported long travel ballscrews, the liner guideway, worktable with brush, and steel balls auto central lubrication device and auto floating clamps. CNC Turret Punch Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: info@reliantt.com

MP7 Series CNC Turret Punch ž MP7 series CNC turret punch is of C-type double-frame (ZL 01 2 63310.0), which receives tempering treatment. ž Mechanical drive features simple construction and easy maintenance. ž CNC system FANUC Oip or SIEMENS 802D is used on this series punch. ž The turret (ZL 02 2 18211.X) features long sleeve structure and the index station had sectional wheel and worm mechanism. ž This series punch consists of international pneumatic and electrical components, imported long travel ballscrews, the linear guideway, worktable with brush, and steel balls auto central...

MP8 Series CNC Turret Punch ž MP7 series CNC turret punch is of C-type double-frame (ZL 01 2 63310.0), which receives tempering treatment. ž German H+L hydraulic system enjoys reliable performance and low power consumption (11KW) ž CNC system FANUC Oip or SIEMENS 802D is used on this series punch. ž The turret (ZL 02 2 18211.X) features long sleeve structure and the index station had sectional wheel and worm mechanism. ž This series punch consists of international pneumatic and electrical components, imported long travel ballscrews, the linear guideway, worktable with brush, and steel balls...

Controlling system The machine uses the first class Japanese FANUC Oip or German SIEMENS 802D/804D control system and servo unit, and both Chinese and English versions are available. The control system is of remote diagnosis function self diagnosis function. It is of 10.4’’ color TFT display AC servo motor The machine uses digital AC servo motors which are of high dynamic characteristics and the acceleration speed can be of 1.2g, and it can neglect the clearing of the carbon brushes for a long term accuracy and reliability Long bushed construction (Patented No. ZL 02 2 18211.X)...

Tooling The tooling is of thick turret series, with a high surface hardness, anti-abrasion ability and good guidance Clamp The floating clamp is of upper-lower floating construction to reduce the torsion of the material. It can work even when it is near the clamp. The clamp integrated with the working table is of dovetail connection for easy movement and high precision. High rigidity dual frame construction (Patented No. ZL 01 2 63310.0) The MP series CNC turret punch takes dual frame construction with the rigid main frame constructed with rigid side frame. The tooling is fixed with...

Reliable hydraulic system The machine use German H+L hydraulic system which is compact, reliable and noise-low and is of automatic hydraulic overload protection and simple oil cooling device. The machine can be convertible with mechanical drive or hydraulic drive. Self-rotation station (Patented) The 2 auto-indexing stations are of worm and wheel construction and are controlled by CNC control system and the rotation can be made freely for bigger working range, less tooling and working time. CNC Turret Punch Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail:...

Hydraulic unit Hydraulic system imported from Germany H+L provides reliability to the machine. Stainless steel worktable The working table with brush and steel balls ensures the safety and reduce the noise, and to reduce the scratches on the workpiece surface. Central lubrication unit The guideway, ballscrews, bearings and other moving components are lubricated by this unit, which is to avoid manual neglecting maintenance and extend the longevity of the components. CNC Turret Punch Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: info@reliantt.com

Various working graphs (with special tooling) Quality Pneumatic parts Imported automatic programming software (optional) This software can automatically choose the tools according to the CAD drawing, and can appear the requested codes by the control system, and can automatically realize the over stroke and dead zone and avoid the punched holes. CNC Turret Punch Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: info@reliantt.com

Turret Layout Station types 32 station 24 station Dimension range A 16 12 Ø3- Ø12.7mm B 12 8 Ø12.7- Ø31.75mm C 2 2 Ø31.75- Ø50.8mm D 2 2 Ø50.8-88.9mm * Rotate station: C (optional) CNC Turret Punch Nantong Reliantt Co., Ltd. Web-site: www.relianttmachinery.com E-mail: info@reliantt.com

Item Unit MP10-30 MPH10-30 Nominal force KN 300 300 300 300 300 Workpiece size mm 1250×2500 1250×4000 1500×5000 1250×2500 1250×4000 Max workpiece weight Kg 156 156 235 156 156 Max workpiece thickness mm 6.35 6.35 6.35 6.35 6.35 Max punch diameter mm Ô88.9 Ô88.9 Ô88.9 Ô88.9 Ô88.9 Number of stations 32 or 24 32 or 24 32 or 24 32 or 24 32 or 24 Working accuracy mm ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 Max. hit speed HPM 600 or 450 600 or 450 600 or 450 1000 1000 Workpiece traveling speed m/min 106 106 106 106 106 Frame construction Closed-type Closed-type Closed-type Closed-type Closed-type Number of...
