Glass

Product catalog summary
Overview: Nabertherm, a German company with over 60 years of experience, specializes in industrial furnaces for applications like glass processing. Known for quality and reliability, they offer a global sales and service network.
Product Range: Nabertherm provides a variety of furnaces, from standard to fully automatic systems, with innovative control technology for precise process management and remote monitoring.
Key Applications: Applications include bending, slumping, annealing, laminating, and fusing. Specific furnaces, like Heat Soak Test Ovens, are designed for processes such as Toughened Safety Glass (TSG) testing.
Technical Specifications: Detailed specifications for furnace models include maximum temperatures, dimensions, volume, and power requirements, emphasizing temperature uniformity and safety standards compliance.
Additional Features: Optional features include data recording, vacuum connections, and enhanced cooling systems. Custom sizes and configurations are available.
Customer Support: Nabertherm offers global support with professional engineers and quick spare parts dispatch due to in-house production capabilities.
Specifications and Models: Models like GF 75 - GF 1425 and GFM 420 - GFM 1050 are detailed with specifications such as Tmax, dimensions, and power requirements.
Furnace Features: Features include shuttle kilns with cooling systems, top-loading furnaces for quartz glass, fusing furnaces with infrared heating, top-hat furnaces for large parts, and tub furnaces for complex parts.
Additional Equipment and Customization: Options include exhaust air flaps, cooling fans, and interchangeable table systems.
Control Systems: Advanced control systems ensure precise temperature management and process documentation.
Key Considerations: Emphasizes temperature control, energy efficiency, and safety features like SiC plates and high-quality insulation.
Conclusion: Comprehensive details on furnace models and features cater to diverse industrial needs for glass processing.
Specifications: Lists models like GW, HT, HFL, TS, and VHT series with specifications for industrial processes.
Key Features: Includes interchangeable table systems, automatic lid opening, and high-quality heating elements.
Additional Equipment: Options enhance capabilities for specific applications, such as cooling fans and protective gas systems.
Applications: Suitable for glass fusing, sintering, chemical hardening, and high-temperature experiments.
Safety and Efficiency: Incorporates safety technologies and energy-efficient designs.
Conclusion: Offers a range of high-temperature furnaces with customizable features, emphasizing safety and efficiency.
Specifications: Details VHT furnace models with features like water-cooled reactors and integrated control systems.
Procedures: Furnaces can operate manually or automatically, with options for gas supply and vacuum functions.
Norms and Standards: Complies with EN 60519-2, with safety measures for hydrogen operation.
Recommendations: Extension packages for processes involving hydrogen or contamination.
Key Data from Tables: Provides specifications for models like VHT 8/18-GR.
Additional Equipment: Includes options like separable housing and advanced vacuum pumps.
High-Temperature Table-Top Models: Offers laboratory table-top furnaces with SiC rod and molybdenum disilicide heating.
Process Control and Documentation: Provides standard and custom control systems with features like PID control and computer interfaces.
Professional Control Systems: HiProSystems control system supports complex processes and remote diagnostics.
Controltherm MV Software: Facilitates monitoring and control of furnaces, supporting up to 16 units.
Professional Solutions: Solutions for industries like arts & crafts, glass, ceramics, and heat treatment.
Contact Information: Provides contact details for Nabertherm's headquarters and subsidiaries.
See more

Catalog excerpts

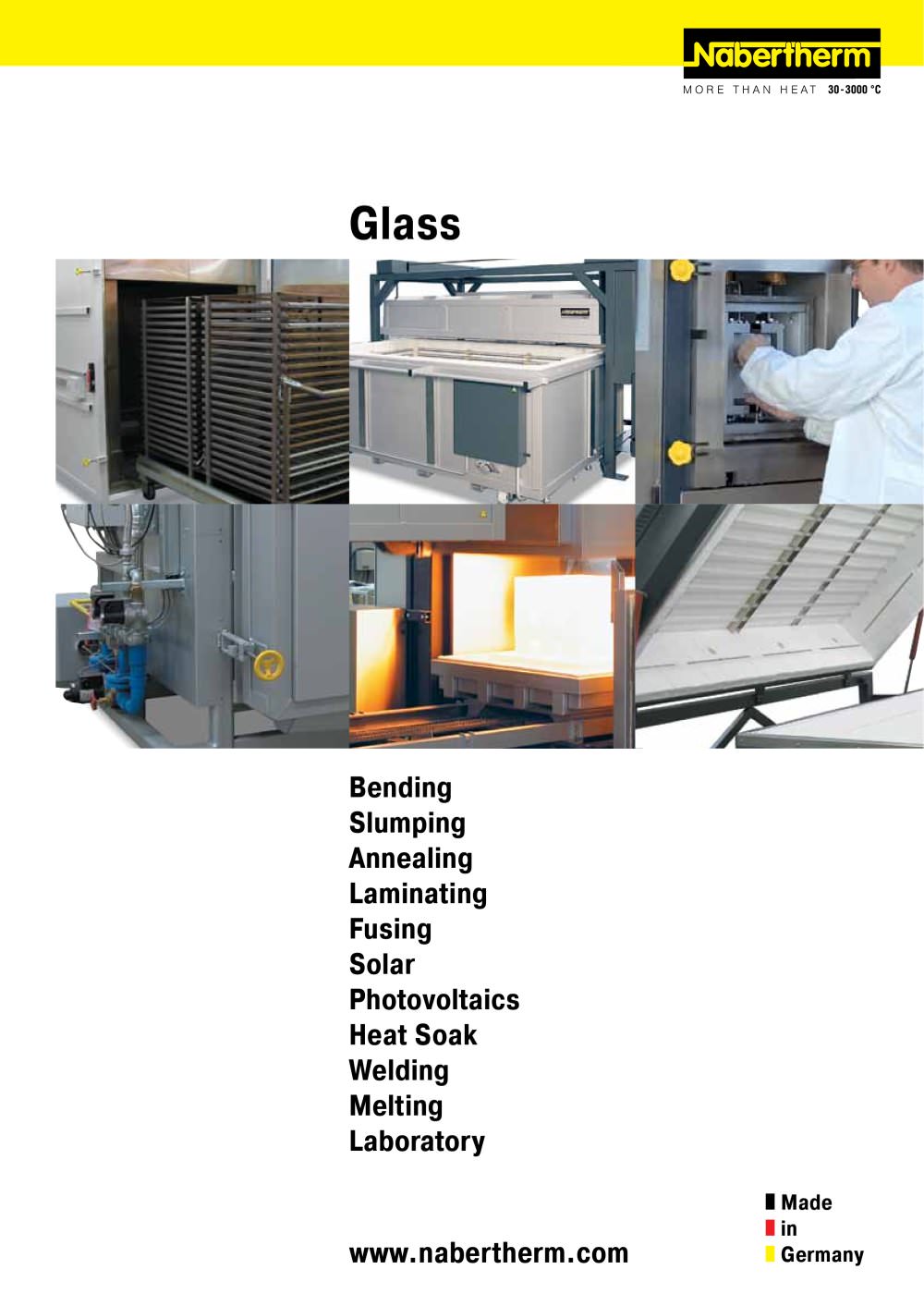

Glass-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:10.50pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:25.00pt "Arial", sans-serif; } .font5 { font:49.00pt "Arial", sans-serif; } .font6 { font:7.00pt "Tahoma", sans-serif; } .font7 { font:12.00pt "Tahoma", sans-serif; } MORE THAN HEAT 30-3000T Glass Bending Slumping Annealing Laminating Fusing Solar Photovoltaics Heat Soak Welding Melting Laboratory www.nabertherm.com I Made lin I Germany

 Open the catalog to page 1
Glass-2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } Made in Germany Nabertherm with more than 350 employes worldwide have been developing and producing industrial furnaces for many different applications for over 60 years. 150,000 satisfied customers in 100 countries offer proof of our commitment to build quality equipment cost-effectively. Short delivery times are ensured due to our complete inhouse production and our wide variety of standard furnaces. Setting Standards in Quality and Reliability...

 Open the catalog to page 2
Glass-4

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } Chamber Ovens and Dryers Heat Soak Test Ovens for Toughened Safety Glass (TSG), Ovens for Laminated Safety Glass (LSG) N 4010/45 HA N 12000/26 HA with individual custom measurements N 560/26.. - N 10000/45... These chamber ovens are available for maximum working temperatures of 260 °C or 450 °C. They are suitable for numerous processes such as pre-heating...

 Open the catalog to page 4
Glass-5

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } MORE THAN HEAT 30-3000T 2xN 10000/45HA Additional equipment ■ Data recording via Nabertherm Control Center (NCC) in accordance with the requirements of EN 141791 for Heat Soak Tests of Tempered Safety Glass (TSG) ■ Racks for loading of standing glass panes ■ Connection ports for vacuum bags inside the oven for Laminated Safety Glass (LSG). The vacuum pump is connected on the outside of the furnace....

 Open the catalog to page 5
Glass-6

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Franklin Gothic Medium", sans-serif; } Chamber Furnaces with Air Circulation N 250/65HA with pneumatic lift-door as additional equipment N 120/65 HA N 15/65HA, N 30/45HA - N 500/85HA These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity. Hence, they are especially suitable for processes such as cooling, crystalizing, pre-heating,...

 Open the catalog to page 6
Glass-7

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:10.50pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:42.00pt "Arial Black", sans-serif; } .font6 { font:7.00pt "Times New Roman", serif; } MORE THAN HEAT 30-3000T Additional equipment N 30/45HA - N 500/85HA ■ Cooling system with fan for fast cooling ■ Automatic control of air inlet and exhaust air vents for better ventilation and faster cooling of...

 Open the catalog to page 7
Glass-8

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } Air-Circulation Bogie Hearth Furnaces up to 850 °C Fully automatic shutlle kiln system with cross transversal car and automatic bogie exchange for crystalization of thin film solar cells W 1000/65A - W 10000/85A For larger charge weights the chamber ovens can also be equipped with movable bogies. Standard Version (different from chamber furnaces N 30/45HA ff.): ■ Tmax 650 °C or 850 °C ■ Freely steerable...

 Open the catalog to page 8
Glass-9

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } Preheating Furnaces for Moulds N 31/H N 31/H - N 1491 The models N 31/H ff. have been specially developed for preheating of moulds but also for hardening jobs when toolmaking. N 201/S in customized dimensions with SiC plates protecting the side heating ■ Tmax 1200 °C, 1280 °C or 1300 °C ■ 3-sides heating: from both sides and floor ■ Heating element on support tubes provides for free heat radiation...

 Open the catalog to page 9
Glass-10

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } I I oca H 125 - H 3000 These top-hat furnaces were specially developed for cooling complex structures or when the process requires the treatment of warm glass, e.g., the welding process in glass apparatus manufacturing. The wide-opening electro-hydraulically driven hood allows furnace opening even at high temperatures and provides easy access from 3 sides....

 Open the catalog to page 10
Glass-11

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } MORE THAN HEAT 30-3000°C Top-Hat Furnaces with SiC Rod Heating HC 1500 HC 1275 with moveable table HC 665 - HC 1500 For tempratures beyond 1350 °C we recommend furnaces with SiC rod heating. The top-hat construction with 4-sides heating provides for exceptional temperature uniformity. ■ Tmax of 1400 °C, 1450 °C or 1500 °C ■ SiC rod heating on 4 sides of the furnace hood for short cycle times and high...

 Open the catalog to page 11
