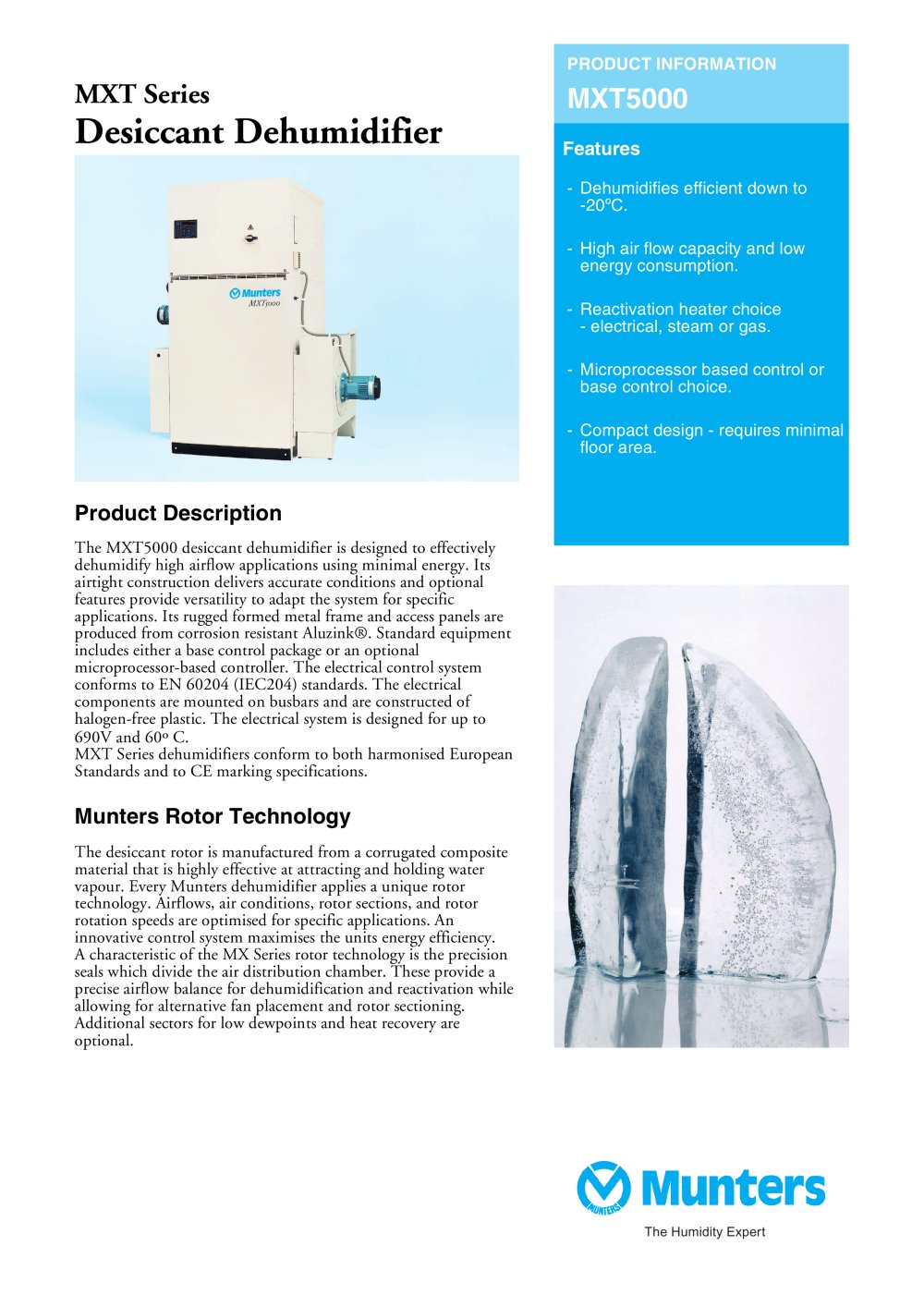

-Dehumidifies efficient down to-20C.-High air flow capacity and lowenergy consumption.-Reactivation heater choice - electrical, steam or gas.-Microprocessor based control orbase control choice.-Compact design - requires minimalfloor area. > The MXT5000 desiccant dehumidifier is designed to effectivelydehumidify high airflow applications using minimal energy. Its airtight construction delivers accurate conditions and optional features provide versatility to adapt the system for specific applications. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzinkڮ. Standard equipment includes either a base control package or an optional microprocessor-based controller. The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to690V and 60 C.MXT Series dehumidifiers conform to both harmonised EuropeanStandards and to CE marking specifications. > The desiccant rotor is manufactured from a corrugated composite material that is highly effective at attracting and holding water vapour. Every Munters dehumidifier applies a unique rotor technology. Airflows, air conditions, rotor sections, and rotor rotation speeds are optimised for specific applications. An innovative control system maximises the units energy efficiency. A characteristic of the MX Series rotor technology is the precisionseals which divide the air distribution chamber. These provide a precise airflow balance for dehumidification and reactivation while allowing for alternative fan placement and rotor sectioning. Additional sectors for low dewpoints and heat recovery areoptional. > The Humidity Expert size="-1">

Diagram measurements are for referenceonly.Scaled and dimensioned AutoCADdrawings are available in Munters DryCap program. > Dehumidification capacity, kg/h 80% RH 60% RH 40% RH Miscellaneous data Operating temperature (C)-20/+40Max noise level unducted (dBA)87 Air filter standardG3IEC protective class (unit)IP44IEC protective class (electrical panel)IP54 MXT (B) Electrical equipment,Terminal connection, remote controlStandardTerminal connection general fault alarmStandard Width (A/D) Depth (B) Height (C) Dry air Wet air Weight 1000/2048 mm 1213 mm 2172 mm 250x500 200x300 724 kg > 0816243240...
