Product catalog summary
Product Description
The ML180 desiccant dehumidifier is designed for efficient dehumidification in low moisture environments. It features an internally sealed rotor unit with a durable thermoset plastic casing and corrosion-resistant Aluzink® metal frame. The electrical control system adheres to EN 60204 (IEC204) standards, supporting up to 690V and 60ºC, and complies with European Standards and CE marking.
Munters Rotor Technology
The dehumidifier uses a corrugated composite rotor that effectively attracts and retains water vapor. The rotor technology is optimized for specific applications, enhancing energy efficiency and reducing electrical power requirements through heat recovery.
Product Information
  • Minimal floor area required
  • 100% corrosion-resistant plastic rotor casing
  • Effective dehumidification down to -20ºC
  • Low dewpoint dehumidification
  • Interchangeable front and back panels for easy installation
Technical Specifications
  • Dimensions: Width 513 mm, Depth 410 mm, Height 910 mm
  • Weight: 53 kg
  • Process Air: Rated airflow 180 m³/h, Static pressure 200 Pa
  • Reactivation Air: Rated airflow 67 m³/h, Static pressure 200 Pa
  • Total Power: 2.05 kW, Voltage options: 220V, 230V, 240V
  • Operating Temperature: -20 to +40ºC
  • Max Noise Level: 75 dBA
  • Air Filter Standard: G3
  • IEC Protective Class: Unit IP44, Electrical Panel IP54
Dehumidification Capacity
The capacity varies with inlet process air relative humidity, with performance data provided for 40%, 60%, and 80% RH at different temperatures.
Options
  • Hours run counter
  • Humidity control system with alarm and display
  • Air cooled condenser
  • Stainless steel sheet metal casing
Contact Information
Munters provides contact details for various countries, including Australia, Austria, Belgium, China, Denmark, Finland, France, Germany, Italy, Japan, Korea, Netherlands, Poland, Singapore, South Africa, Spain, Sweden, Switzerland, United Kingdom, and the United States.
See more

Catalog excerpts

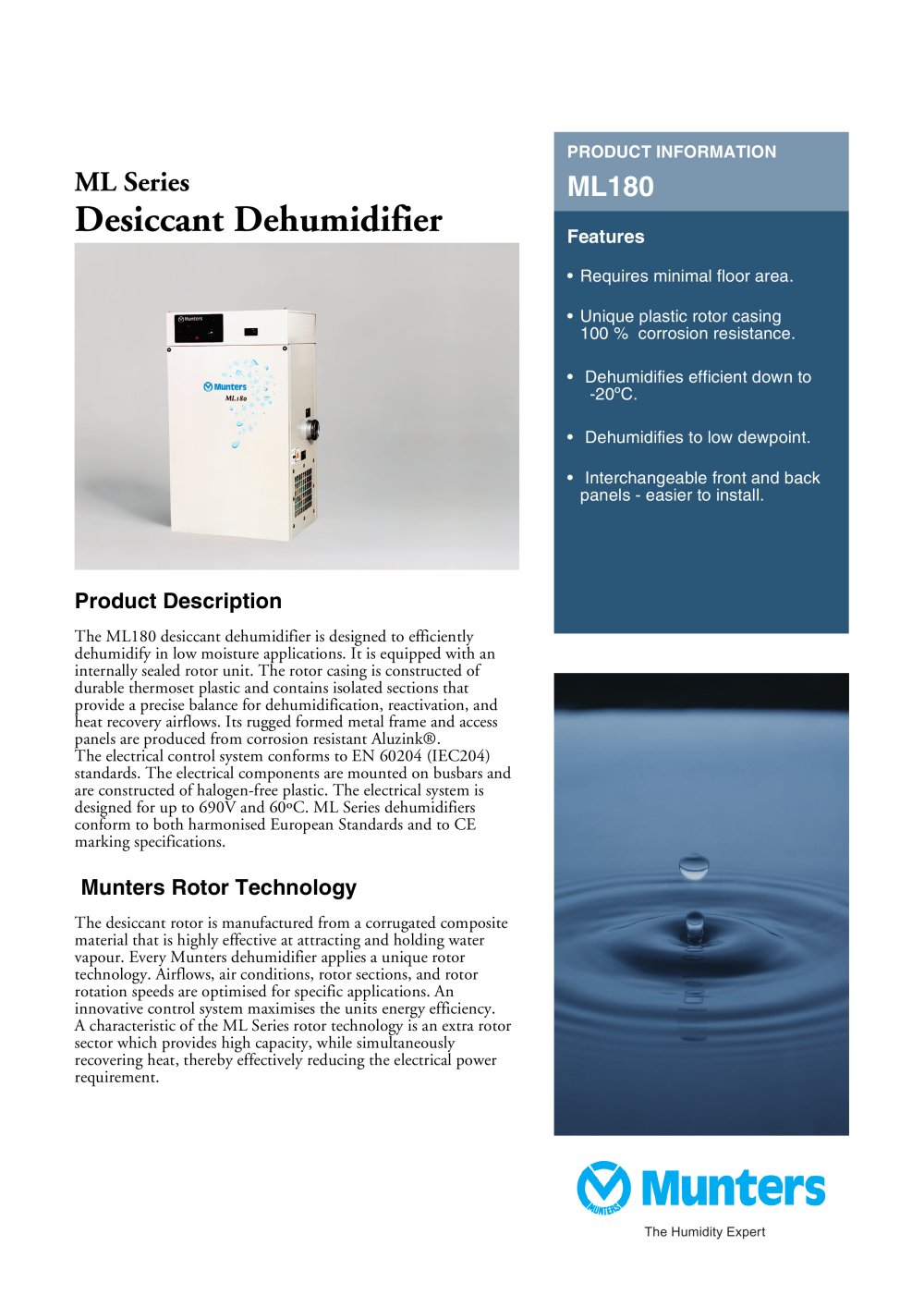

ML180-1

Requires minimal floor area.ՕUnique plastic rotor casing100 % corrosion resistance. Dehumidifies efficient down to -20պC. Dehumidifies to low dewpoint.Օ Interchangeable front and backpanels - easier to install. > The ML180 desiccant dehumidifier is designed to efficientlydehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink.The electrical control system conforms to EN 60204 (IEC204)standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60κC. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications. > The desiccant rotor is manufactured from a corrugated composite material that is highly effective at attracting and holding water vapour. Every Munters dehumidifier applies a unique rotor technology. Airflows, air conditions, rotor sections, and rotor rotation speeds are optimised for specific applications. An innovative control system maximises the units energy efficiency. A characteristic of the ML Series rotor technology is an extra rotorsector which provides high capacity, while simultaneously recovering heat, thereby effectively reducing the electrical power requirement. > The Humidity Expert size="-1">

 Open the catalog to page 1
