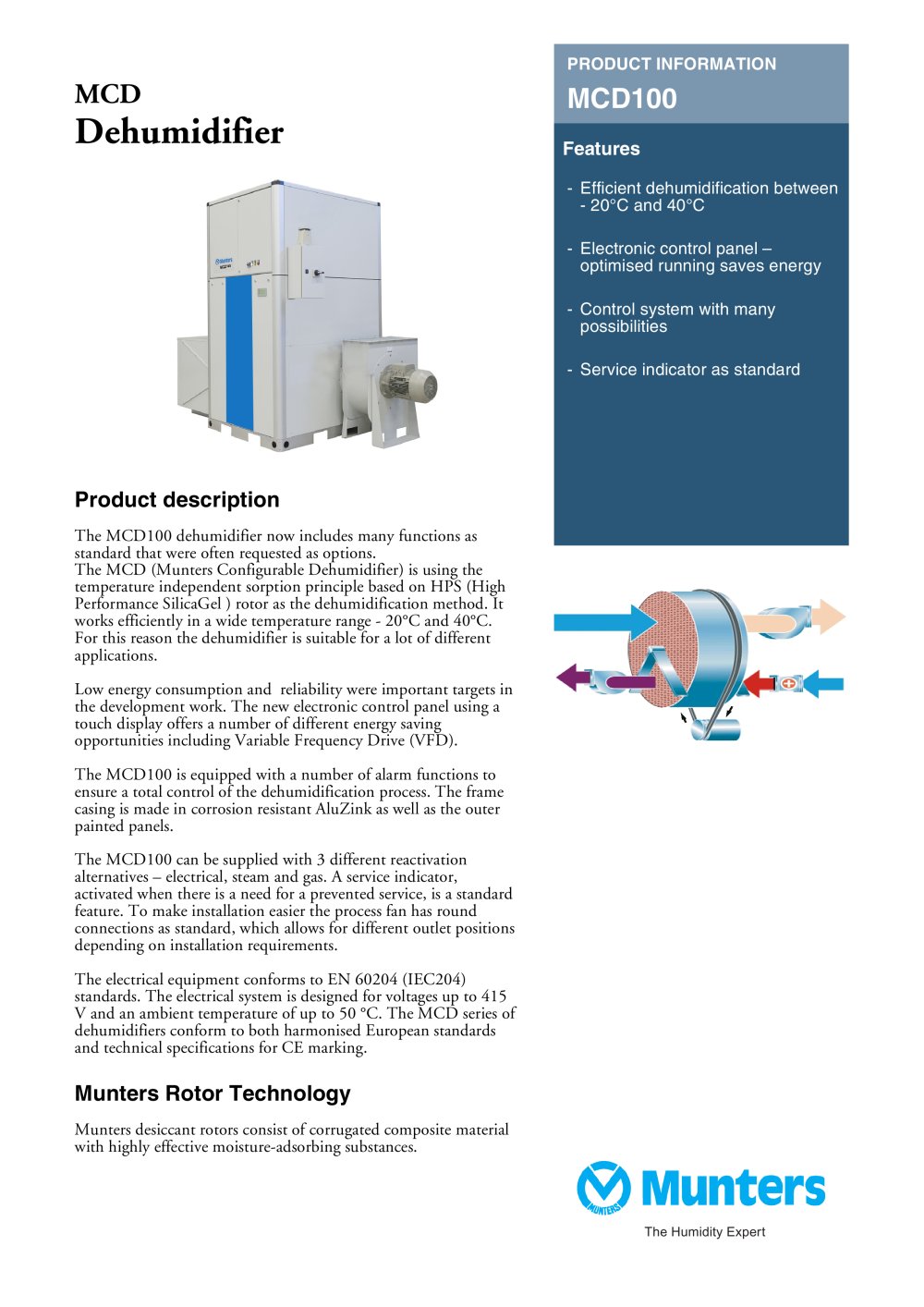

MCD100
2Pages

-Efficient dehumidification between- 20C and 40аC-Electronic control panel optimised running saves energy -Control system with manypossibilities -Service indicator as standard > The MCD100 dehumidifier now includes many functions asstandard that were often requested as options.The MCD (Munters Configurable Dehumidifier) is using thetemperature independent sorption principle based on HPS (High Performance SilicaGel ) rotor as the dehumidification method. It works efficiently in a wide temperature range - 20ְC and 40C. For this reason the dehumidifier is suitable for a lot of differentapplications. Low energy consumption and reliability were important targets inthe development work. The new electronic control panel using a touch display offers a number of different energy saving opportunities including Variable Frequency Drive (VFD). The MCD100 is equipped with a number of alarm functions toensure a total control of the dehumidification process. The frame casing is made in corrosion resistant AluZink as well as the outer painted panels.The MCD100 can be supplied with 3 different reactivationalternatives Ж electrical, steam and gas. A service indicator, activated when there is a need for a prevented service, is a standard feature. To make installation easier the process fan has round connections as standard, which allows for different outlet positions depending on installation requirements. The electrical equipment conforms to EN 60204 (IEC204)standards. The electrical system is designed for voltages up to 415 V and an ambient temperature of up to 50 C. The MCD series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking. > Munters desiccant rotors consist of corrugated composite material with highly effective moisture-adsorbing substances. > The Humidity Expert size="-1">

Diagram measurements are for referenceonly. > x: Process Air temperature, Y: Dehumidification Width (A/D) Depth (B) Height (C) Dry air Wet air Weight 1300/3090 mm 1590 mm 2575 mm 420x830 mm 665x304 mm 1142 kg > Rated airflow (m/h)10000Available static pressure (Pa)300 Reactivation air Rated airflow (mӳ/h)3060Available static pressure (Pa)300 Total power,voltage and current (amps/phase) Total power (kW) Electrical119 (50Hz)Total power (kW) Steam/Gas17 (50Hz)380V 3-50 Hz (A) Electrical188380V 3-50 Hz (A) Steam/Gas33 400V 3-50 Hz (A) Electrical179400V 3-50 Hz (A) Steam/Gas32415V 3-50 Hz (A)...
