Dehumidification Systems MG50

    Dehumidification Systems MG50

Dehumidification Systems MG50

Product catalog summary
Product Description
The MG50 desiccant dehumidifier is designed for efficient air dehumidification. It features a compact construction with sections held by four bolts, housing the fan, desiccant rotor, and reactivation heater in fixed positions. A distribution chamber ensures balanced dehumidification and reactivation airflows. The casing is made from corrosion-resistant die-cast aluminum. The electrical control system complies with EN 60204 (IEC204) standards, and the unit meets European Standards and CE marking specifications.
Munters Rotor Technology
The desiccant rotor, made from a corrugated composite material, effectively attracts and holds water vapor. Munters' unique rotor technology optimizes airflows, conditions, rotor sections, and rotation speeds for specific applications, enhancing energy efficiency. The MG Series features an efficient air distribution chamber for balanced airflows.
Product Information
Features:
  • Low weight – easy to carry
  • High efficiency down to -20ºC
  • Robust and shockproof
  • Easy to service
  • Ideal for private households
  • Wall-mounted option available
Technical Specifications:
  • Dimensions: Width 275 mm, Depth 275 mm, Height 388 mm, Diameter 48 mm
  • Weight: 10 kg
  • Process Air: Freeblowing at 50Hz (80 m³/h), 60Hz (85 m³/h), Rated airflow (50 m³/h), Reduced airflow (100 m³/h), Static pressure 50Hz (120 Pa)
  • Reactivation Air: Rated airflow (12 m³/h), Static pressure (50 Pa)
  • Total Power: 0.440 kW, Voltage and Current: 115V 1-50/60Hz (3.8 A), 200V 1-50/60Hz (2.2 A), 230V 1-50/60Hz (1.9 A), 240V 1-50/60Hz (1.8 A)
  • Operating Temperature: -20/+40 ºC
  • Max Noise Level: 58 dBA
  • Air Filter Standard: G3
  • IEC Protective Class: Unit IP44, Electrical Panel IP54
Dehumidification Capacity: Approximate capacity in kg/h varies with inlet process air relative humidity (40%, 60%, 80% RH) and temperature (-10 to 30 ºC).
Contact Information
Munters provides contact details for various countries, including Australia, Austria, Belgium, China, Denmark, Finland, France, Germany, Italy, Japan, Korea, Netherlands, Poland, Singapore, South Africa, Spain, Sweden, Switzerland, United Kingdom, and United States.
See more

Catalog excerpts

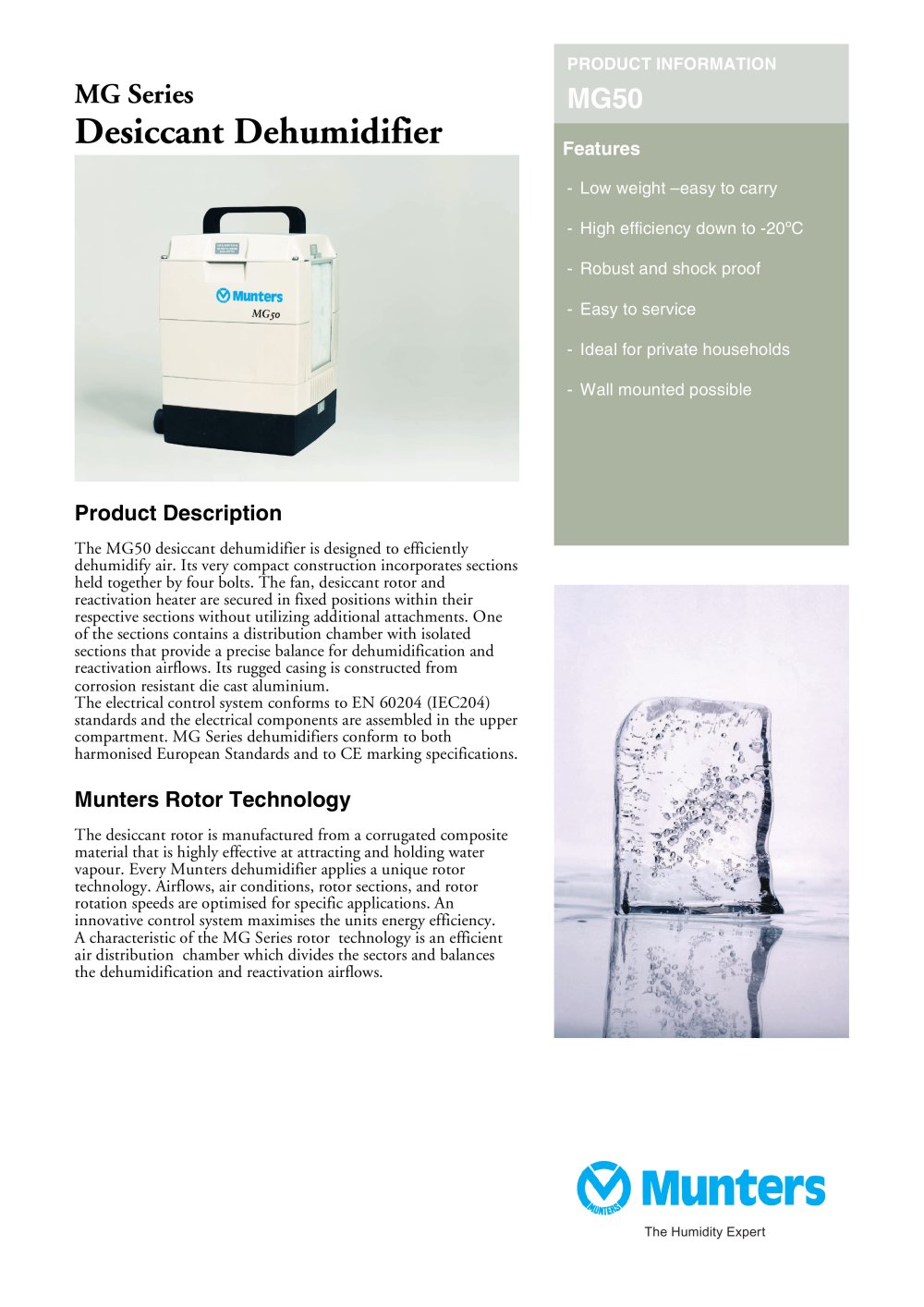

    Dehumidification Systems MG50-1

-Low weight easy to carry-High efficiency down to -20ֺC -Robust and shock proof -Easy to service -Ideal for private households -Wall mounted possible > The MG50 desiccant dehumidifier is designed to efficientlydehumidify air. Its very compact construction incorporates sections held together by four bolts. The fan, desiccant rotor and reactivation heater are secured in fixed positions within their respective sections without utilizing additional attachments. One of the sections contains a distribution chamber with isolated sections that provide a precise balance for dehumidification and reactivation airflows. Its rugged casing is constructed fromcorrosion resistant die cast aluminium. The electrical control system conforms to EN 60204 (IEC204)standards and the electrical components are assembled in the upper compartment. MG Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications. > The desiccant rotor is manufactured from a corrugated composite material that is highly effective at attracting and holding water vapour. Every Munters dehumidifier applies a unique rotor technology. Airflows, air conditions, rotor sections, and rotor rotation speeds are optimised for specific applications. An innovative control system maximises the units energy efficiency. A characteristic of the MG Series rotor technology is an efficientair distribution chamber which divides the sectors and balances the dehumidification and reactivation airflows. > The Humidity Expert size="-1">

 Open the catalog to page 1
