H2LT

Product catalog summary

Introduction
The document introduces the Multiquip EarthSmart™ H2LT Light Tower, the first hydrogen fuel cell-powered light tower in the industry. It highlights the benefits of using hydrogen as a clean and efficient energy source.

Specifications and Benefits

Lighting: The tower features 8 plasma lights, each providing 23,000 lumens with a color rendering index of 74 and a color temperature of 5750K. The lights are efficient, offering 120 lumens per watt and a rapid re-strike time of 45 seconds.
Efficiency: The system offers a 50% energy saving compared to traditional 1000W systems, with bulbs lasting 50,000 hours.
Environmental Impact: The light tower displaces 900 gallons of diesel fuel annually, reducing CO2 emissions by 9.1 metric tons per year. It achieves a 73% GHG savings using hydrogen.
Safety and Operation: The hydrogen fuel cell operates quietly at 44dB and is safe for indoor and outdoor use, with no combustion or emissions.
Fuel Cell Efficiency: The fuel cell has an efficiency of 46.9%, significantly higher than typical gasoline and diesel engines.
Run Time and Maintenance: The tower can operate for 66 hours on 8kg of hydrogen, with minimal maintenance required.

Hydrogen Fuel Cell Technology

Hydrogen is abundant and can be produced from various sources. It is a clean energy source, producing only electricity and water vapor.
Fuel cells have been used since the 1960s and are now being adapted for commercial use in various sectors.
Multiquip is pioneering the use of hydrogen fuel cells in construction equipment, promoting environmental responsibility.

Technical Specifications

Tower Height: 33.9 ft (10.3 m)
Wind Stability: 65 MPH (105 km/h)
Weight: 2,700 lb (1,225 kg)

Safety and Refueling

The hydrogen storage tanks are rigorously tested and certified, ensuring safety with pressure relief valves and leak detection systems.
Refueling is straightforward, taking less than 15 minutes, with a growing network of hydrogen stations across North America.

Conclusion
Multiquip's H2LT Light Tower represents a significant advancement in sustainable construction technology, offering a clean, efficient, and safe alternative to traditional lighting systems.

Catalog excerpts

Harnessing the energy source of tomorrow for how you work today. Introducing the H2LT Light Tower from Multiquip... the industry’s first hydrogen fuel cell-powered light tower.

Open the catalog to page 1

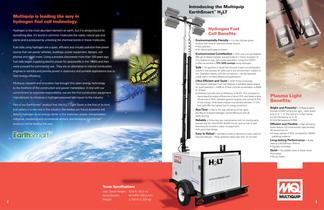

Introducing the Multiquip EarthSmart™ H2LT Multiquip is leading the way in hydrogen fuel cell technology. something else. It’s found in common molecules like water, natural gas and Hydrogen Fuel Cell Benefits: plants and is produced by unlocking the chemical bonds in these molecules. Environmentally-Friendly – It is the ultimate green Fuel cells using hydrogen are a quiet, efficient and virtually pollution-free power product that uses an alternate power source. • Non pollution • No diesel particulate emission Hydrogen is the most abundant element on earth, but it is always bound to source that...

Open the catalog to page 2

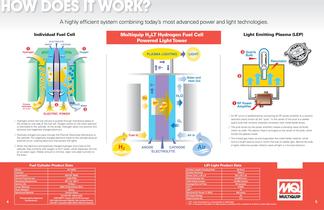

A highly efficient system combining today's most advanced power and light technologies. Individual Fuel Cell Multiquip H2LT Hydrogen Fuel Cell Powered Light Tower ELECTRIC POWER 1. Hydrogen enters the fuel cell and is pushed through membrane plates to the anode on one side of the fuel cell. Oxygen enters on the other side and is channeled to the cathode. At the anode, hydrogen splits into positive ions (protons) and negatively charged electrons. 2. Positively charged ions pass through the Polymer Electrolyte Membrane to the cathode. The negatively charged electrons travel to the cathode along...

Open the catalog to page 3

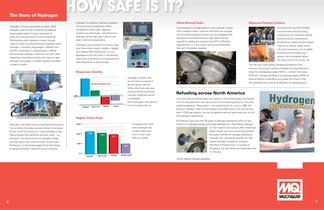

The Story of Hydrogen Hydrogen is found everywhere on earth. Most hydrogen used for fuel is produced by passing super-heated steam through natural gas to break the chemical bonds in both compounds. Electrolyzing water, passing a current through water to break the chemical bonds, produces some hydrogen. A process using biogas, methane from landfills, wastewater or decaying plant material also produces hydrogen, electricity and heat. Other researchers are experimenting with ways to make hydrogen using algae, microbes, bacteria and direct sunlight on water. How SAFE IS it? Ultra-Strong Tanks Hydrogen...

Open the catalog to page 4

Turn tomorrow’s technology into today’s advantage. Turn to Multiquip. Call Toll Free today 800.421.1244 or visit us as www.multiquip.com Multiquip, Inc. PO Box 6254 Carson, CA 90749 © Copyright 2011, Multiquip, Inc.
