Primary Switcher 15 W

Primary Switcher 15 W
1 / 8 PagesView full catalog

Primary Switcher 15 W

Product catalog summary
Applications
The PMA/PCMA15 Primary Switcher is designed for decentralized power supply in industrial applications. It is available for both PCB mounting (PMA) and chassis mounting (PCMA) and is suitable for electronic and electrical circuits in process measuring, control technology, laboratory equipment, and information technology systems.
Features
The device features a wide input range for global use, UL and cUL approvals, suitability for protection class 1 or 2, and CE conformity.
Technical Data - Input
Nominal input voltage ranges from 100-240 VAC and 100-300 VDC, with an input voltage range of 90-264 VAC and 100-300 VDC. The switching frequency is typically 90 kHz, and the input frequency is 50/60 Hz. The hold-up time at 230 VAC is greater than 50 ms.
Technical Data - General
The isolation test voltage is 3.3 kVAC for primary to secondary and 500 VAC for triple output. The device has an overvoltage category of OV2 and a pollution level of PD2. It operates at altitudes up to 2000 m and has a leakage current of 80 µA typical at 230 VAC. The ambient temperature range is -25 to +65 °C.
Output Configurations
Various output configurations are available, including single, dual, and triple outputs with different voltage and current specifications. Efficiency ranges from 60% to 78% depending on the configuration.
Standards
The device complies with standards for electrical safety (IEC 60 950-1, EN 61 010-1, UL 60 950-1), harmonics (EN 61 000-3-2), and EMI/RFI (EN 61 000-6-3, EN 55 011). It also meets immunity standards for ESD, HF fields, burst, surge, and power quality tests.
Installation Instructions
The power supply unit must be installed by qualified personnel and operated within a protective cover. It is maintenance-free and requires external fuse protection. The PMA15 is designed for PCB soldering, while the PCMA15 is mounted with screws. High voltage tests for isolation are conducted during manufacturing, and re-testing is not permitted.
See more

Catalog excerpts

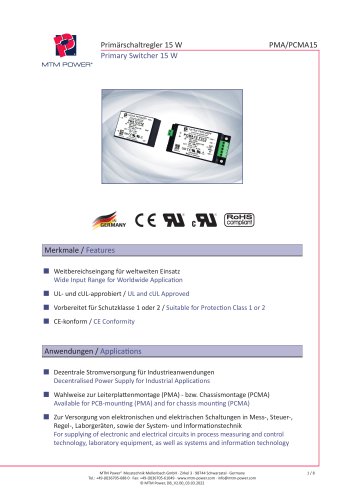

Primary Switcher 15 W-1

Primarschaltregler 15 W Primary Switcher 15 W ■ Weitbereichseingang fur weltweiten Einsatz Wide Input Range for Worldwide Application ■ Vorbereitet fur Schutzklasse 1 oder 2 / Suitable for Protection Class 1 or 2 Anwendungen / Applications ■ Dezentrale Stromversorgung fur Industrieanwendungen Decentralised Power Supply for Industrial Applications ■ Wahlweise zur Leiterplattenmontage (PMA) - bzw. Chassismontage (PCMA) Available for PCB-mounting (PMA) and for chassis mounting (PCMA) ■ Zur Versorgung von elektronischen und elektrischen Schaltungen in Mess-, Steuer-, Regel-, Laborgeraten, sowie der System- und Informationstechnik For supplying of electronic and electrical circuits in process measuring and control technology, laboratory equipment, as well as systems and information technology MTM Power® Messtechnik Mellenbach GmbH • Zirkel 3 • 98744 Schwarzatal • Germany Tel.: +49-(0)36705-688 0 • Fax: +49-(0)36705-61049 • www.mtm-power.com • [email protected] © MTM Power, DB_V2.00_03.03.202

 Open the catalog to page 1
Primary Switcher 15 W-2

Primarschaltregler 15 W Primary Switcher 15 W MTM POWER* Technische Daten Eingang / Technical Data Input 1 erweiterter Eingangsfrequenzbereich auf Anfrage / extended input frequency range on request Alle Werte gemessen bei Volllast und einer Umgebungstemperatur von 25 °C (wenn nicht anders spezifiziert). All data measured at full load and ambient temperature of 25 °C (unless otherwise specified). Technische Anderungen vorbehalten / Technical data subject to change MTM Power0 Messtechnik Mellenbach GmbH • Zirkel 3 • 98744 Schwarzatal • Germany Tel.: +49-(0)36705-688 0 • Fax: +49-(0)36705-61049...

 Open the catalog to page 2
Primary Switcher 15 W-3

Primarschaltregler 15 W Primary Switcher 15 W PMA/PCMA15 Technische Daten Allgemein / Technical Data General 11 Anforderungen der EN 61 010 sind berucksichtigt: siehe Einbauvorschriften: Hochspannungstests zur Isolationsprufung Requirements of EN 61 010 are considered: See installation instructions: High Voltage Tests for Isolation 2) Elektronische Baugruppe vollstandig gekapselt / electronic assembly completely encapsulated IP67 Alle Werte gemessen bei Volllast und einer Umgebungstemperatur von 25 °C (wenn nicht anders spezifiziert). All data measured at full load and ambient temperature of...

 Open the catalog to page 3
Primary Switcher 15 W-4

Primarschaltregler 15 W Primary Switcher 15 W Ausgangskonfigurationen / Output Configurations Modifikationsmoglichkeiten / Possible Modifications Alle Werte gemessen bei Volllast und einer Umgebungstemperatur von 25 °C (wenn nicht anders spezifiziert). All data measured at full load and ambient temperature of 25 °C (unless otherwise specified). Technische Anderungen vorbehalten / Technical data subject to change MTM Power0 Messtechnik Mellenbach GmbH • Zirkel 3 • 98744 Schwarzatal • Germany Tel.: +49-(0)36705-688 0 • Fax: +49-(0)36705-61049 • www.mtm-power.com • [email protected] © MTM Power,...

 Open the catalog to page 4
Primary Switcher 15 W-5

Primarschaltregler 15 W Primary Switcher 15 WAbmessungen und Anschlussbelegung PMA Dimensions and Connecting Scheme PMA Alle Abmessungen in mm / All dimensions in mm PMA15 Alle Werte gemessen bei Volllast und einer Umgebungstemperatur von 25 °C (wenn nicht anders spezifiziert). All data measured at full load and ambient temperature of 25 °C (unless otherwise specified). Technische Anderungen vorbehalten / Technical data subject to change MTM Power® Messtechnik Mellenbach GmbH • Zirkel 3 • 98744 Schwarzatal • Germany Tel.: +49-(0)36705-688 0 • Fax: +49-(0)36705-61049 • www.mtm-power.com • [email protected]...

 Open the catalog to page 5
Primary Switcher 15 W-6

Primärschaltregler 15 W Primary Switcher 15 W Abmessungen und Anschlussbelegung PCMA Dimensions and Connecting Scheme PCMA Seitenansicht Side View Ansicht von oben Top View 7,5 98,0 ±0,36 Alle Abmessungen in mm / All dimensions in mm Single Dual Triple Technische Änderungen vorbehalten / Technical data subject to change 6/8 MTM Power Messtechnik Mellenbach GmbH · Zirkel 3 · 98744 Schwarzatal · Germany Tel.: +49-(0)36705-688 0 · Fax: +49-(0)36705-61049 · www.mtm-power.com · [email protected] © MTM Power, DB_

 Open the catalog to page 6
Primary Switcher 15 W-7

Primärschaltregler 15 W Primary Switcher 15 W Einbauvorschriften Warnhinweis / Gefahr durch elektrischen Schlag Beim Betrieb des Netzteiles stehen zwangsläufig bestimmte Teile innerhalb des Gerätes unter gefährlicher Spannung. Vor Arbeiten am Netzteil ist das Gerät spannungsfrei zu schalten und gegen Wiedereinschalten zu sichern. Das Berühren spannungsführender Teile durch Nichtbeachtung dieser Maßnahmen kann Tod oder schwere Verletzungen zur Folge haben. Betriebshinweise und Montage Der Anschluss des Netzteiles hat unter Berücksichtigung der jeweils gültigen landesspezifischen Normen und Vorschriften...

 Open the catalog to page 7
Primary Switcher 15 W-8

Primärschaltregler 15 W Primary Switcher 15 W Installation Instructions Caution: Danger of Electric Shock When operating the power supply unit, certain components of the device are dangerously energised. Therefore, it is mandatory to deenergise the PSU and protect it against switch-on before working with the power supply. If these procedures are disregarded, touching the electrical parts could result in death or serious injury. Operating Hints and Installation The installation of the power supply unit has to be executed by qualified personnel only and under consideration of the latest countryspecific...

 Open the catalog to page 8
