Introduction to HART® Technology
HART® (Highway Addressable Remote Transducer) is a communication protocol developed in the late 1980s by Fisher Rosemount. It is widely used in the process industry for smart device communication, supported by over 100 manufacturers and integrated into more than 560 products.

Key Features of HART®

Allows simultaneous analogue and digital operation, using the 4/20mA analogue signal for control and the digital signal for additional data like device status and diagnostics.
Ensures backward compatibility with existing instrumentation, protecting investments in current systems.
Operates on a master-slave protocol with up to two masters per loop, typically a DCS or PLC as the primary master and a handheld configurator or PC as the secondary master.

MTL's HART® Solutions

MTL provides connections between HART® field instruments, control systems, and process automation management software, enhancing maintenance efficiency and reducing downtime.
The MTL4840 Series and 8000 Process I/O™ systems offer dedicated HART® connections for traditional and process I/O systems.

Instrument Management Software

MTL's HART® connections enable online access from a PC to HART® field devices, facilitating monitoring, configuration, calibration, and maintenance.
Software allows for regular status monitoring and integration of other fieldbus instruments into the system database.

HART® Communication Protocol

Uses Frequency Shift Keying (FSK) to superimpose digital signals onto analogue signal cables, allowing simultaneous communication without affecting the analogue signal.
Supports universal, common practice, and device-specific commands for consistent communication across devices.

Benefits of HART®

Provides valuable data for process operations, including device status, diagnostic alerts, and process variables.
Cost-effective communication solution that enhances plant operations and asset management.
Improves system integrity by providing continuous device status and diagnostic alerts.

Integration and Support

HART® technology is supported by the HART® Communication Foundation, which manages and enhances the technology to meet industry needs.
Offers a complete range of products and support for plant integration, including software, hardware, and training.

Overview of MTL4840 Series
The document discusses the MTL4840 Series, a HART® connection system designed for process communication. It highlights the global reach of the HART® Communication Foundation and the benefits of using HART® technology as a cost-effective and reliable process communication solution.

MTL4840 Series Features
The MTL4840 Series provides a simple interface between smart devices and HART® instrument management software. It supports up to 7936 HART® devices connected to a single workstation using a standard RS485 serial link. The system is modular, allowing for easy configuration and expansion.

Components and Specifications

MTL4841 Communications Module: Interfaces with the host system via RS485, supports up to 31 modules, and features LED indicators for power and status.
MTL4842 HART® Interface Module: Links up to 16 loops, receives control signals, and selects channels for communication.
Backplanes: Various backplanes are available for different applications, including general purpose and intrinsic safety versions.

Instrument Management Software
The system supports various software packages for configuration, calibration, and diagnostics of HART® devices. This includes software from Emerson, Siemens, Yokogawa, and others, providing benefits such as reduced commissioning time, status monitoring, and maintenance cost reduction.

Conclusion
The MTL4840 Series offers a scalable and flexible solution for integrating HART® devices into process control systems, with extensive software support and robust communication capabilities.

Overview of Asset Management Solutions
FieldCare is an open solution designed for configuration and condition monitoring, supporting the multi-vendor FDT/DTM standard. It facilitates multi-communication support and integration across various system vendors, allowing users to select optimal devices with comprehensive software support. Key features include operation of third-party devices, support for HART, PROFIBUS, and Foundation Fieldbus devices, network configuration, and user management. The maintenance package enhances asset management with condition monitoring, alarm notifications, and database connectivity.

Cornerstone Software Suite
The Cornerstone family provides a Windows-based interface for HART instrument asset management over MTL4840 HART multiplexer networks. Version 5 introduces operational improvements, enhanced security, and better display features. The suite includes components like Base Station, ISM, ModLibs, and ComLib, supporting comprehensive instrument data management, continuous monitoring, and automated maintenance activities.

AMS Device Manager
AMS Device Manager integrates with the MTL4840 HART connection system to provide live information on HART transmitters and valve positioners. It offers predictive diagnostics, streamlines calibrations, and enhances plant performance by reducing troubleshooting time and improving device management. The software supports audit-ready documentation and integrates with the AMS Suite for predictive maintenance and performance monitoring.

MTL4840 Series Modules
The MTL4840 series includes various modules and components for HART communication and interface, supporting up to 16 loops. The system comprises connection units, backplanes, and isolating interface modules, facilitating comprehensive instrument management and connectivity.

Conclusion
Effective asset management tools like FieldCare, Cornerstone, and AMS Device Manager significantly enhance plant profitability by optimizing maintenance procedures, reducing unnecessary costs, and improving system availability.

Catalog excerpts

E-mail: [email protected] Web site: www.mtl-inst.com >

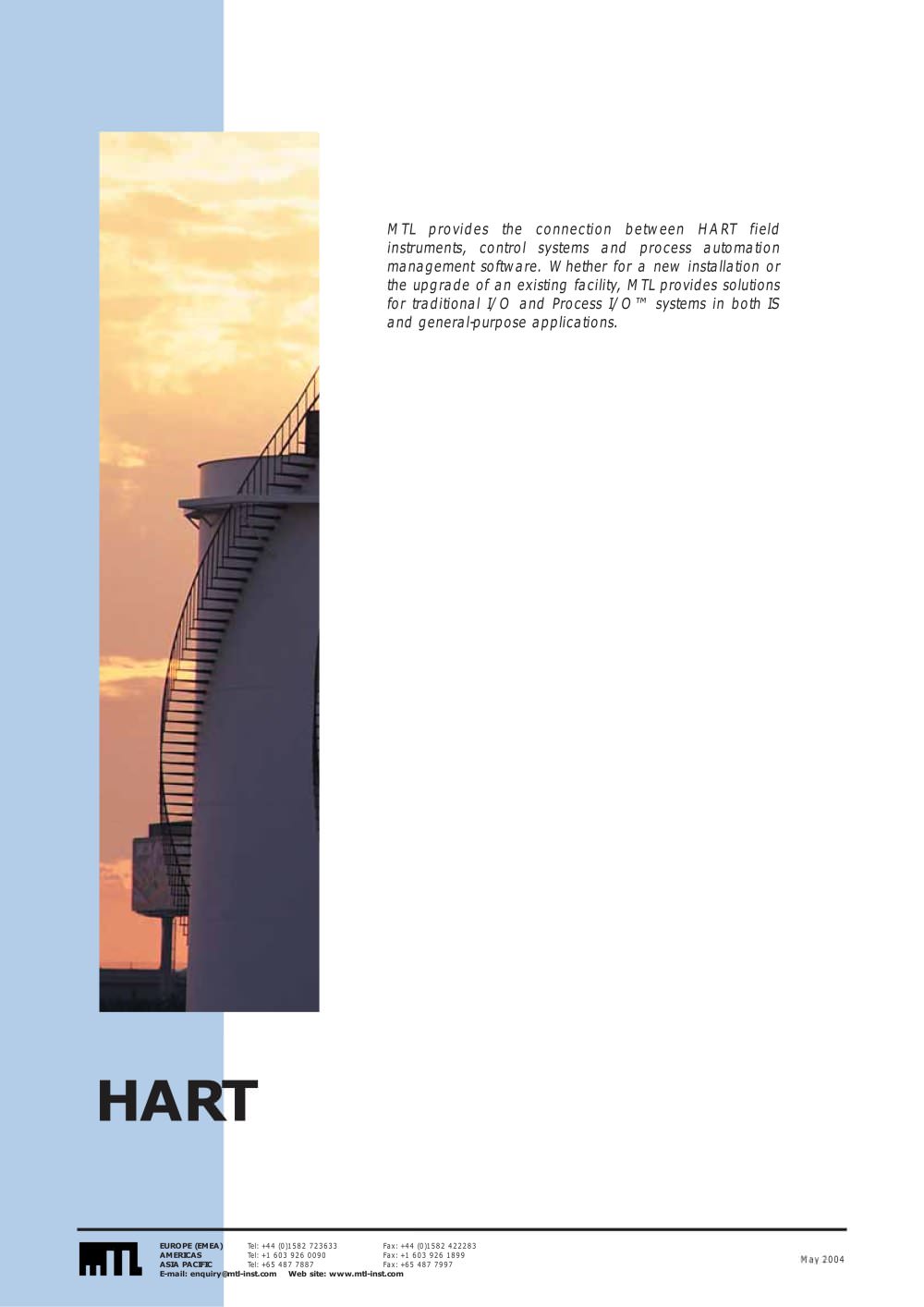

Open the catalog to page 1

If youΒve been future proofing your process infrastructure byspecifying smartђ field devices for instrument replacements and plant extensions, then you probably already have HART > instruments installed in the plant. But are you exploiting this considerable investment?HART ΢׆ up to four process variables fromeach HART > provides simultaneous analogue and digitaloperation so that the 4/20mA analogue signal can be connected to conventional I/O cards for control while the digital signal can be used for: > ή device ◆ device status ◆ instrument diagnostics ◆ configuration changesMTLs HART > Ү connections...

Open the catalog to page 2

Things you may NOT know about HART > ή ◆ All HART > ﬁ smart devices provide valuable data for process operations 24/7 - every second of every day. > ◆ Information on status (health) of the field devices and quality of the 4-20mA signals is in every communication. ◆ The Primary Variable is transmitted as a 4-20mA signal and alsoas a digital value. ◆ Many devices communicate Secondary Process Variables (measured or calculated) in addition to the Primary Variable. The HCF is an independent, not-for-profit organization funded byHCF membership & training/support fees. In addition the HCF: USING HART...

Open the catalog to page 4

HART > provides access to ALL process variables in thedevice > ή communication improves systemintegrity ◆ Many HART > Devices provide more than one process measurement or calculated value. ΢׆ HART > smart devices continually self-access and monitor theirperformance. ΢׆ Many Pressure & Temperature devices. ◆ Information on device status, quality of 4-20mA signal andprocess variable good/bad status reported in every communication. ◆ Most Flow, Level & Analytical devices. ◆ All Valve Positioners/Controllers. ◆ Using this data in control and safety systems provides earlywarning of abnormalities before...

Open the catalog to page 5

E-mail: [email protected] Web site: www.mtl-inst.com >

Open the catalog to page 7

1 x MTL4841 communications module 4 x MTL4842 HART > interface modulesNB: An MTL4841 module is needed for only one in every sixteen MTL4842 modules Maximum power requirements 1.35W when equipped with:Ζ 1 x MTL4841 communications module 4 x MTL4842 HART > interface modules HART interface connectors > 125 4 x DIN41651 20-way ribbon cables (16 HART > ή signal connections + 4 common returns on each cable. Connections to HART > signals via screw terminal interfaceor custom backplane. Contact MTL for details.) Weight (excl. modules and accessories) 296g approx. > Capacity > 206 Power requirements,...

Open the catalog to page 9

MTL4840 Series modules The following components form a complete system: MTL4841HART communications module pre-configured for Cornerstone protocolMTL4841-HART communications AMSmodule pre-configured for AMS Intelligent Device ManagerMTL4841-HART communications PRMmodule pre-configured forPRMMTL4842HART interface modulecommunicates with up to 16 loops > HART MTL4840 HARTٮ connection system provides simpleconnection to field instruments, using general purpose and IS termination boards. Personal computer ֖ running instrument managementsoftware and linked to MTL4841 HART communications modules by:...
