PBS-4100 Plus

Product catalog summary

Overview: The PBS-4100 PLUS is an advanced vibration and balancing system designed for precision measurement in aircraft engine maintenance. It is a lightweight, compact, and robust tool that enhances the capabilities of engine mechanics and flight line personnel.

Key Features:

Compatibility: Fully compatible with existing PBS systems, cables, and procedures, ensuring seamless integration without the need for retraining.
Advanced Diagnostics: Equipped with a Diagnostic Wizard and self-calibration software to isolate and address issues efficiently.
Enhanced Portability: 30% lighter and 40% smaller than previous models, making it easier to transport and deploy.
Interactive Display: Features a full touch screen for easy navigation and data display, including speed and vibration levels.
Rugged Design: Built with internal shock absorbers and passive cooling for reliable operation under severe conditions.

Applications: The PBS-4100 PLUS is used across various aircraft platforms, including military and commercial applications. It supports a wide range of engine types, such as F100, F110, F404, and TF33, among others.

Performance: The system provides quick and accurate vibration surveys and diagnostics, maintaining the same procedures as previous models for trim balancing and data management.

Contact Information: For more details, MTI Instruments, Inc. can be contacted at their Albany, NY office via phone or email.

Catalog excerpts

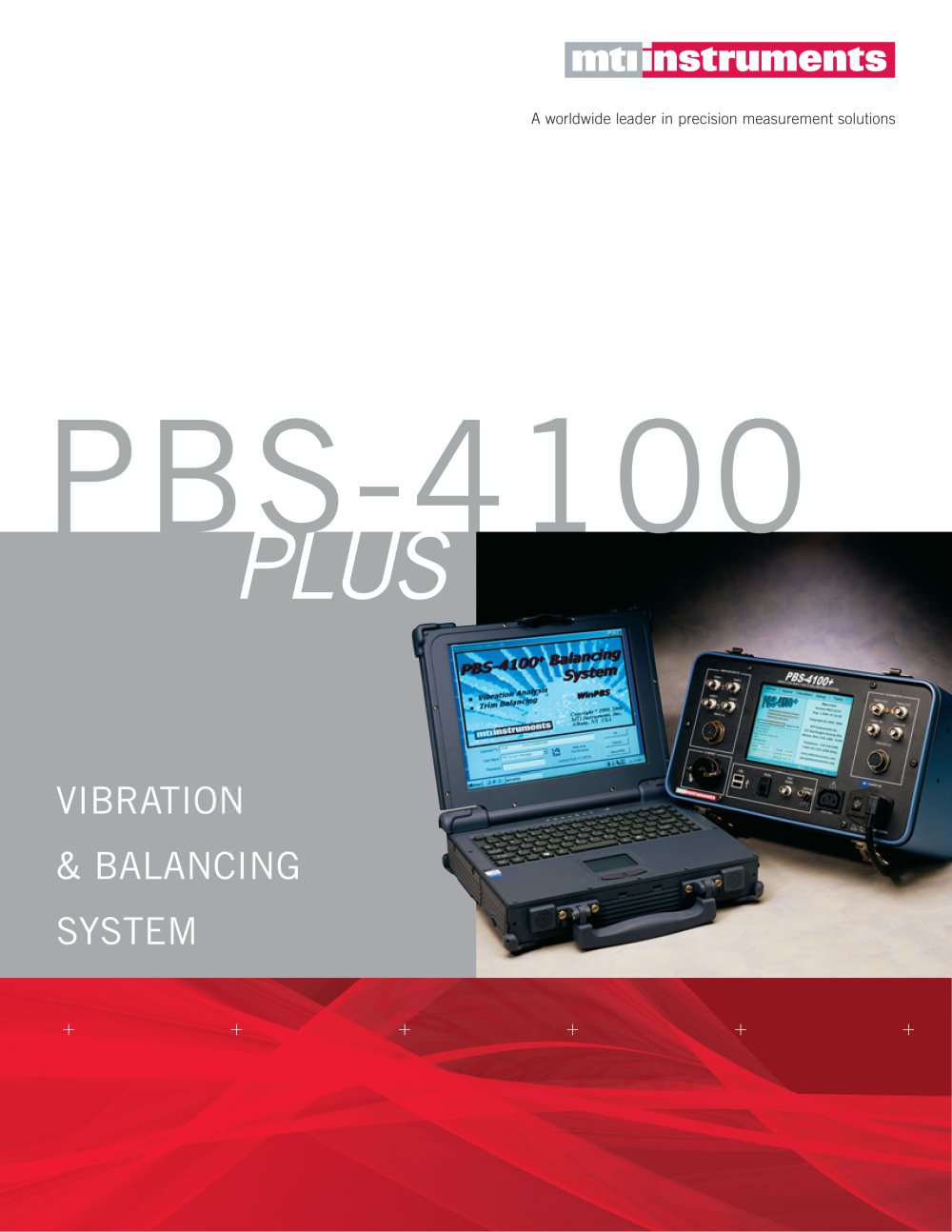

A worldwide leader in precision measurement solutions VIBRATION & BALANCING SYSTEM >

Open the catalog to page 1

The most advanced vibration analysis and trim balancing tool available, the PBS-4100 PLUS offers added features and enhanced functionality to simplify the job of engine mechanics and flight line personnel. Small, lightweight, fast working and ruggedly built, it incorporates the latest config- uration of electronics to maximize performance and maintainability. With all its pluses, the PBS-4100 PLUS can be used on allengines and aircraft in the Air Force inventory.If youve worked with earlier models, you wonҒtneed retraining to use the PBS-4100 PLUS for vibration diagnostics, surveys and balancing,...

Open the catalog to page 2

Full interactive touchscreen on the DAU. Select among speed,vibration and other data displays. Self-calibration software. Low maintenance costs. Data acquisition unit withinternal shock absorbersand passive cooling ensures reliable operation under the mostsevere conditions. Used in conjunction with the1500CS Portable Calibrator,a Diagnostic Wizard helps to isolate problems down to cables, sensors and system components. In some applications, the DAU can be used without the portable computer to measurespeed and vibrations. 30% lighter and 40%smaller than PBS-4100. The latest signal processing technology....

Open the catalog to page 3

With proven WinPBS Functions, no retraining is needed. Users are instantly ready to use the PBS-4100 PLUS to manage engine types, acquire and save data, balance engines and solve vibration problems. > Clear, concise graphics indicate where vibration problems exist. Broadband and tracked vibrationlevelsare reported quickly and accurately, ensuring rapid diagnosis. Vibration surveys are performed exactly the same way as with your existing PBS-4100. > The PBS-4100 PLUS identifies the specific causeof engine vibrations, making it easier for you to repair. > Weve kept the trim balance procedures the...

Open the catalog to page 4

The PBS-4100 PLUS > Advanced design Ֆ fast, accurate, reliableSmaller, lightweight, easier to useՕFully compatible with existing cables and accessoriesRugged and versatile size="-1">
