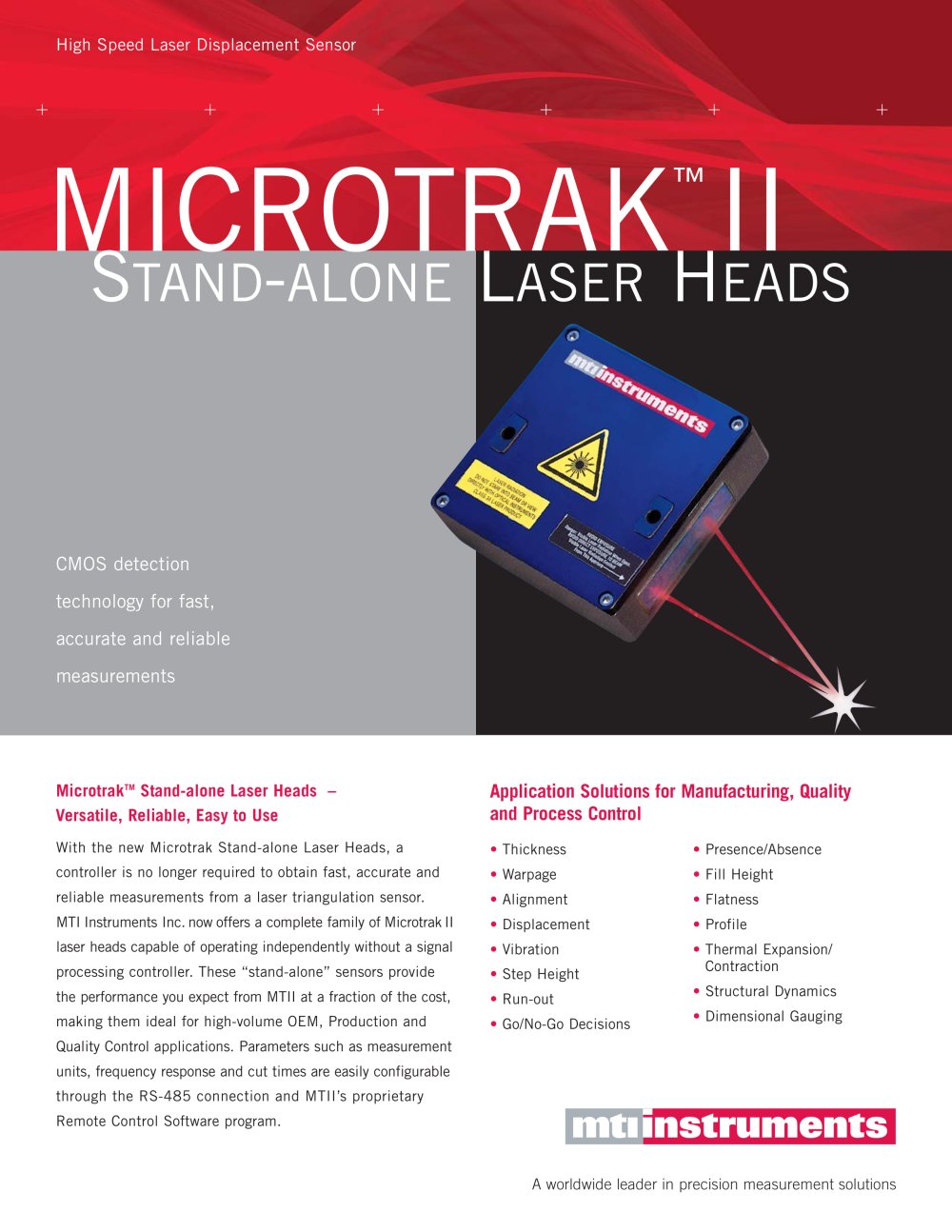

MICROTRAK II Stand-Alone Laser Heads

MICROTRAK II Stand-Alone Laser Heads

Product catalog summary

Overview: The Microtrak Stand-alone Laser Heads by MTI Instruments Inc. are designed to provide fast, accurate, and reliable measurements without the need for a separate controller. These laser heads are ideal for high-volume OEM, production, and quality control applications due to their cost-effectiveness and ease of configuration via RS-485 connection and proprietary software.

Key Features:

CMOS detection technology for precision measurements.
High-speed laser displacement sensor suitable for various applications such as thickness, warpage, alignment, displacement, vibration, and more.
Stand-alone operation without a signal processing controller.

Specifications:

Power Requirement: 18-30 Vdc, 0.4 mA max.
Outputs: Analog Voltage (0-10 Vdc), Analog Current (4-20 mA), Digital (RS-485 interface).
Baud Rate: 230 kb asynchronous.
Filter Settings: Ranging from 20 kHz to 0.1 Hz.
Frequency Response: Up to 20 kHz.
Sampling Frequency: 40 kHz.
Laser Power: Class II and Class IIIA, 2-5 mW.
Laser Wavelength: 670 nm.
Temperature Stability: 0.05% full scale/°C.
Operating Temperature: 0-40°C.
Enclosure Rating: IP 67.
Linearity: 0.05% Full Scale range or better.

Model Specifications:

LTC-025-02: Standoff 25 mm, Range ± 1 mm, Resolution ± 0.12 µm, Spot Size 30 µm, Laser Angle 45º.
LTC-050-10: Standoff 50 mm, Range ± 5 mm, Resolution ± 1.25 µm, Spot Size 30 µm, Laser Angle 30º.
LTC-120-20: Standoff 120 mm, Range ± 10 mm, Resolution ± 2.5 µm, Spot Size 100 µm, Laser Angle 20º.
LTC-300-200: Standoff 300 mm, Range ± 100 mm, Resolution ± 20 µm, Spot Size 110 µm, Laser Angle 8º.

Applications: The laser heads are suitable for manufacturing, quality, and process control applications, including dimensional gauging, thermal expansion/contraction, structural dynamics, and more.

Contact Information: For more information, contact MTI Instruments at +1-518-218-2550 or [email protected].
