Microtrak II High Speed Laser Displacement Sensor

Product catalog summary

Introduction
The document introduces the MICROTRAK™ II, a high-speed laser displacement sensor utilizing CMOS detection technology for precise, fast, and reliable measurements. It is designed for quality and process control across various industries.

CMOS Sensing Technology
The MICROTRAK™ II employs advanced CMOS laser triangulation technology, offering up to four times faster performance than traditional CCD units. It is unaffected by surface texture, color, or stray light, making it suitable for challenging production environments.

Applications

Production quality control monitoring
Lead position and pitch on integrated circuits
Closed-loop control of robotic and positioning systems
Measurements of thickness, warpage, alignment, displacement, vibration, and more

System Features & Advantages

DC to 20 kHz frequency response with selectable filter settings
Visible laser spot for easy positioning and alignment
Interchangeable laser heads without recalibration
Auto gain adjustment for various surface reflectivities
RS-485 networking capability for up to 15 devices

Specifications

Power Requirement: 20-30 Vdc, 0.4 A max
Analog Voltage Output: ± 5 Vdc
Digital Output: RS-485 interface
Frequency Response: 20 kHz max
Laser Power: Class II and Class IIIA, 2-5 mW
Laser Wavelength: 670 nm
Temperature Stability: 0.05% full scale/°C
Ambient Temperature: 0-40°C

Performance Specifications

Resolution and spot size vary by model, with standoff ranges from 25 mm to 300 mm
Laser head enclosure rated IP 67, controller enclosure rated IP 40

Contact Information
MTI Instruments, Inc. provides contact details for further inquiries and information on other non-contact products or custom solutions.

Catalog excerpts

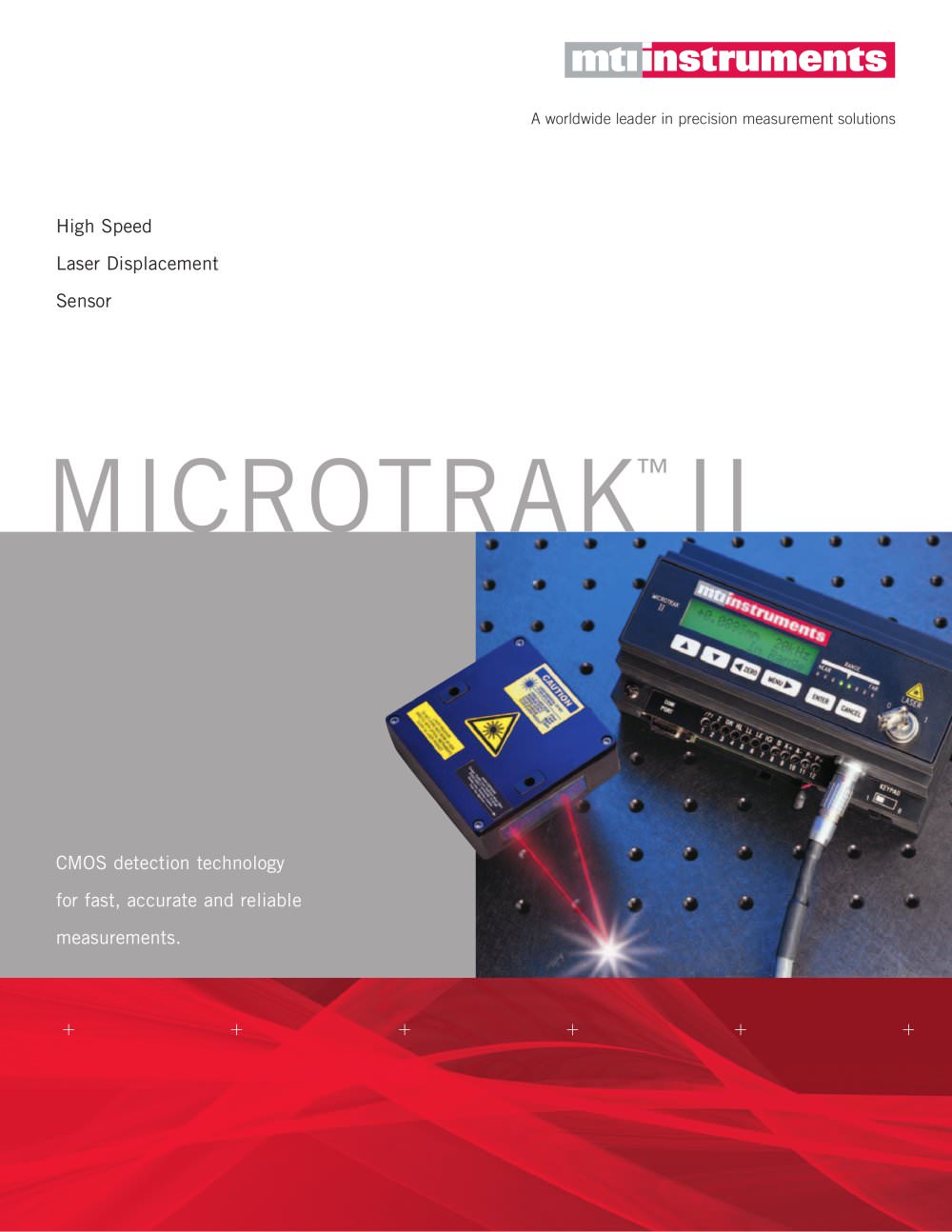

Microtrak II High Speed Laser Displacement Sensor-1

Aworldwide leader in precision measurement solutions High Speed Laser Displacement Sensor MICROTRAK > II > CMOS detection technology for fast, accurate and reliable measurements. size="-2">

Open the catalog to page 1

Microtrak II High Speed Laser Displacement Sensor-3

Din mountable compact enclosure forindustrial applications. Menu-driven controller provides user-friendly methodto set limits, offsets, units and other functions. Position indicating LEDseasily indicate targetposition. Backlit LCD alpha-numeric displayshows measurementresults, setup parameters and control functions. Keypad lockout switch prevents tampering. Zero offset key resets display and output to zero at any point in the measuring range. Analog voltage and RS-485 output to interface with computer or data acquisition systems. DC to 20 kHz Frequency Response with selectable filter settingsdown...

Open the catalog to page 3
