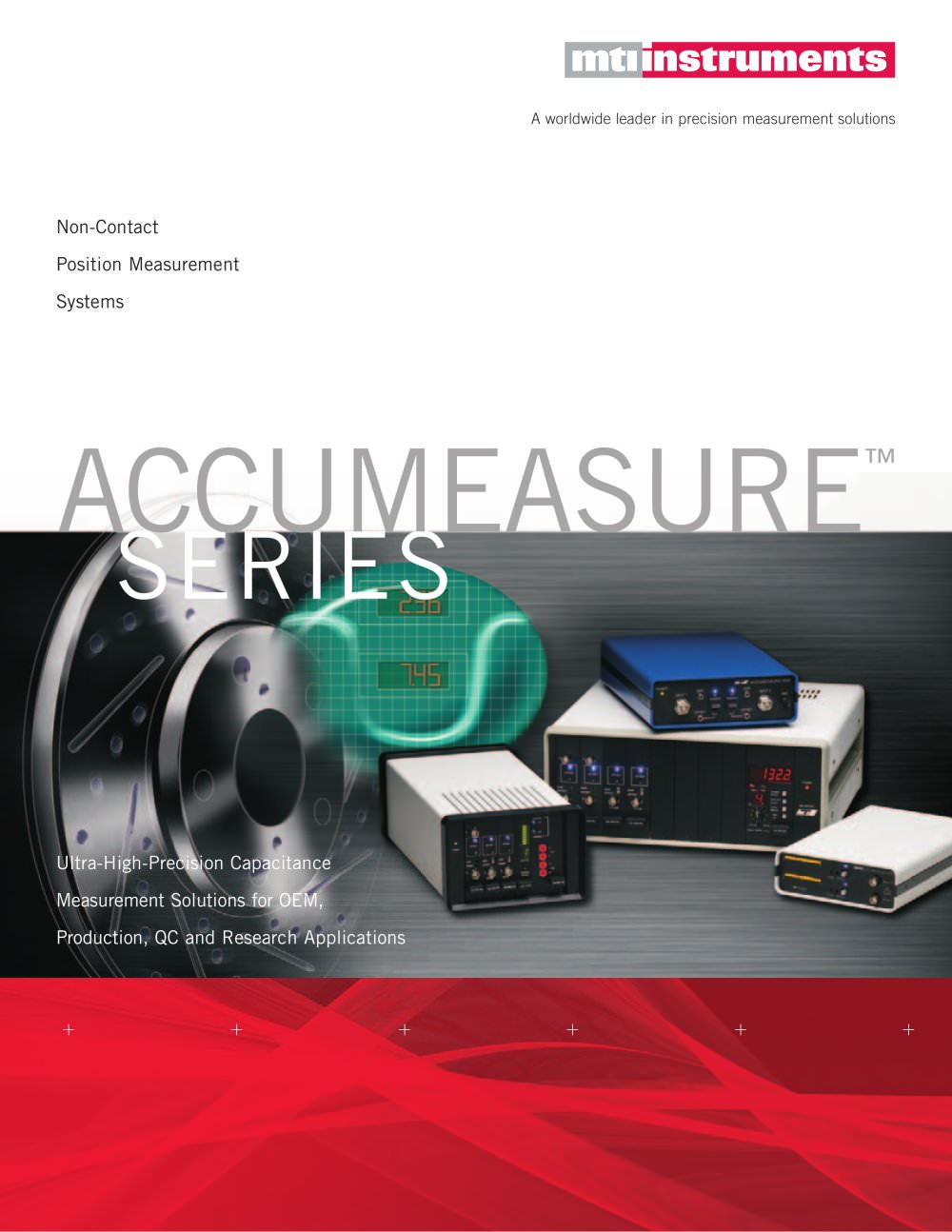

Accumeasure Series: Non-Contact Precision Measurement Systems - 1

A worldwide leader in precision measurement solutions Non-Contact Position Measurement Systems > Ultra-High-Precision CapacitanceMeasurement Solutions for OEM, Production, QC and Research Applications >

Open the catalog to page 1

Accumeasure Series: Non-Contact Precision Measurement Systems - 2

Outstanding accuracy, stability and repeatabilityare the hallmarks of MTI Instruments (MTIIҒs) non- contact capacitance systems. The Accumeasure > family of products is designed to address the needs of product developers, process engineers, researchers, designers and others who need precise, reliable, non-contact measurements. Fast response time and extremely low noise levels make them ideal for critical measurements of targets such as rotating spindles and shafts, disks, tires, precisionX-Y stages and piezoelectric elements.Thousands of Accumeasure systems are installedworldwide and are...

Open the catalog to page 2

Accumeasure Series: Non-Contact Precision Measurement Systems - 4

The foundation of the Accumeasure 1500 system is the AS-1515 chassis, which accepts capacitance amplifiers, summing amplifiers and digital displays.It is capable of performing up to 10 simultaneousmeasurements with individual rear-panel analog voltage outputs. The optional digital display, whichoccupies two slots of the AS-1515, provides voltageand displacement outputs for any selected channel. Each summing amplifier is capable of performing two independent sum, difference, average or thickness calculations. A mass-terminated, 25-pin DӔ connector allows for easy connection to the...

Open the catalog to page 4

Accumeasure Series: Non-Contact Precision Measurement Systems - 5

Accumeasure5000 High-Speed Single/Dual-Channel Amplifier System MicroCap OEM Board Level System ֖ Custom Designs for Demanding High-Volume Applications > For high-speed dynamic applications requiring up to20 kHz response, the Accumeasure 5000 is the ideal instrument. It features an integral power supply, front- panel input connectors and offset and gain controls. The Accumeasure 5000 was designed for run-out appli- cations where poor system grounds and motor noises can affect measurement accuracy. The dual-channel version comes standard with a summing amplifier for sum, difference or...

Open the catalog to page 5

Accumeasure Series: Non-Contact Precision Measurement Systems - 6

Number of Channels1-101 or 21 or 21-6N/A > 1 Measurement Range inches (mm) 0-0.500 (0-12.5)0-0.500 (0-12.5)0-0.500 (0-12.5)0-0.500 (0-12.5)0-0.500 (0-12.5) > 2 Resolution (% of Full Scale)0.005%0.005%0.01%0.005%0.005% > 3 Accuracy (% of Full Scale)0.02%0.02%0.02%0.02%0.02% Frequency Response (Factory Selectable)DC-5 kHzDC-5 kHzDC-20 kHzDC-5 kHzDC-5 kHz Temperature Stability 40-100˚F (4-40˚C)0.1%ѱ0.1%0.1%ѱ0.1%0.1% > 4 Analog Output 0-10 VdcBNC/25-pinBNCBNCBNCTerminals Output Impedance50 50 50 50 50 Power Requirements85-265 Vac85-265 Vac85-265 Vac85-265 Vacѱ15 Vdc47-440 Hz47-440 Hz47-440...
