Purpose
MTE Corporation's Motor Protection Filters are designed to eliminate motor repetitive voltage stress failures and long lead motor overvoltage problems.

Motor Specifications
The system is specified for a circuit length of 750 ft, with a load of 3-phase, 240 V, 3-1/4 A, a switching frequency (fSW) of 6KHz, and a fundamental frequency (fFUND) of 60 Hz.

Filter Options
1. Single Element Low Pass Filter: Suitable for rise times greater than 4µsec and switching frequencies less than 20 KHz.
2. High Frequency Snubber: Designed for rise times greater than 2µsec and switching frequencies less than 3.75KHz.
3. Dual Element Low Pass Filter: Features an LC filter with rise times greater than 2µsec and switching frequencies between 5KHz and 20KHz.

Benefits of MTE Filters
MTE offers the lowest utilization cost, a full range of solutions including reactors, snubbers, and sine wave filters, total motor insulation protection, durable products, stocked components, and a global delivery system.

Cost Alternatives
1. Do Nothing: $0
2. MTE Snubber: $278
3. MTE 5% Reactor: $153
4. MTE Motor Protection Filter: $233

Output Reactor Specifications
Output reactors must have at least 4.5% effective impedance, be IGBT protected, suitable for switching frequencies up to 20KHZ, and UL-506 and UL-508 approved. They must be copper wound with a UL class H insulation system, suitable for ambient temperatures of 45 C, and have a maximum temperature rise of 115 C. The reactors must be MTE Corporation type “RL” series.

Catalog excerpts

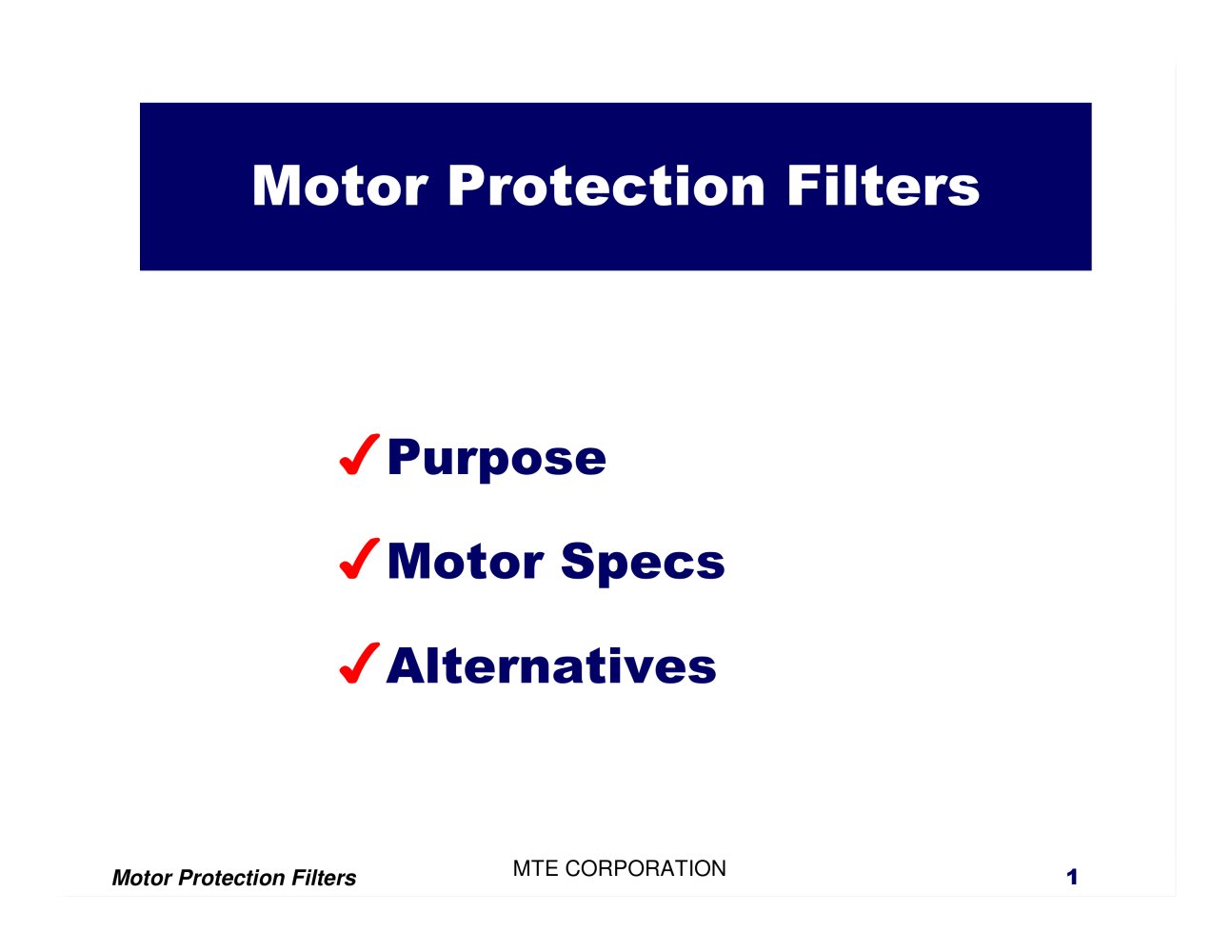

Motor Protection Filters MTE CORPORATION 1 >

Open the catalog to page 1

Motor Protection Filters MTE CORPORATION 2 >

Open the catalog to page 2

Motor Protection Filters MTE CORPORATION 3 >

Open the catalog to page 3

Motor Protection Filters MTE CORPORATION 4 >

Open the catalog to page 4

5% Reactor, 1000 ft, 240V--60 Hz, 6KHz Rise Time > > 4sec f SWITCH < > 20 KHz Motor Protection Filters MTE CORPORATION 5 size="-2">

Open the catalog to page 5

1000 ft, 240V60 Hz, 3KHz Rise time > > 2׵sec f SWITCH < > 3.75KHz Motor Protection Filters MTE CORPORATION 6 size="-2">

Open the catalog to page 6

20KHz Motor Protection Filters MTE CORPORATION 7 >

Open the catalog to page 7

u Reactors u Snubbers u Sine wave filters > Motor Protection Filters MTE CORPORATION 8 size="-1">

Open the catalog to page 8

OPTIONWAVEFORMCOST (5HP/460v) Do Nothing $0 > MTE Snubber $278 > MTE 5% Reactor $153 > MTE Motor Protection Filter $233 > Motor Protection Filters MTE CORPORATION 9 size="-2">
